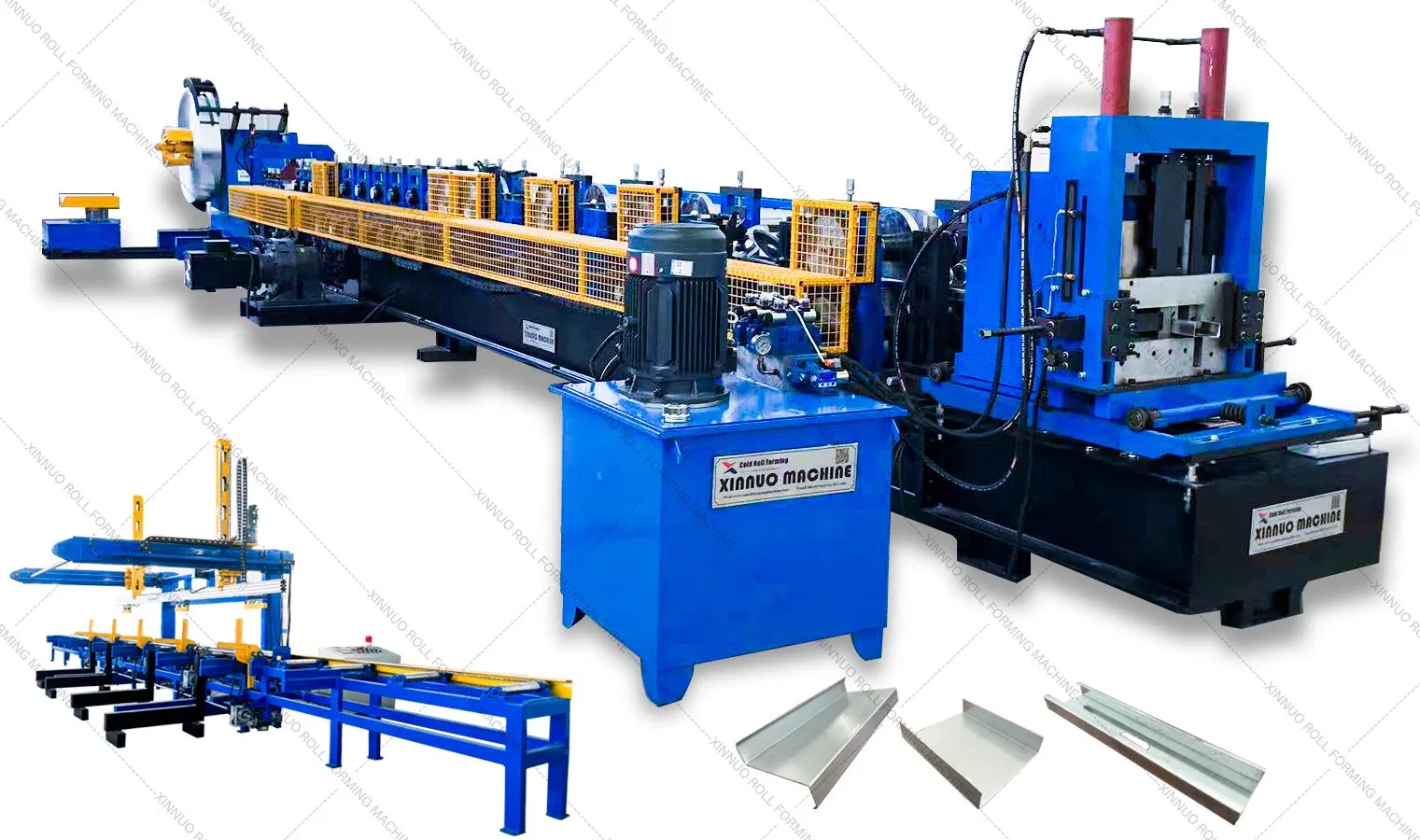

High Precision Steel C-Purlin Automatic Punching and Forming Machine

Customization:	Available
After-sales Service:	Door to Door
Warranty:	One Year

Basic Info

Model NO.C type

Tile TypeColored Steel

CertificationCE, ISO

ConditionNew

CustomizedCustomized

UsageRoof, Purlin

Transmission MethodHydraulic Pressure

ColorAs Customer Requirement

Size9500*1400*1350mm

Speed8-12m/Min

Forming Size80-300mm

Transport PackageExported Packing

SpecificationC Type

OriginChina

HS Code8455221000

Production Capacity2000 Sets/Year

Product Description

Customized Steel Purlin Line Automatic C Purlin Roll Forming Machine

Parameter	Specifications
Configurations	Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, PLC Control.
Control System	PLC Panasonic Inverter
Main Frame	350mm H-Beam
Main Power	11 kw
Pump Power	7.5kw
Power Supply	3-Phase, 380V, 50Hz
Forming Speed	12-14m/min
Hydraulic Pressure	18-20MPa
Forming Size	80-300mm
Feeding Thickness	1.5-3.2mm
Roller Station	12 Stands
Roller Diameter	90mm
Backboard Thickness	18mm
Chain Size	66mm
Cutter Standard	Cr12 mov
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	9500×1400×1350mm
Total Weight	6T

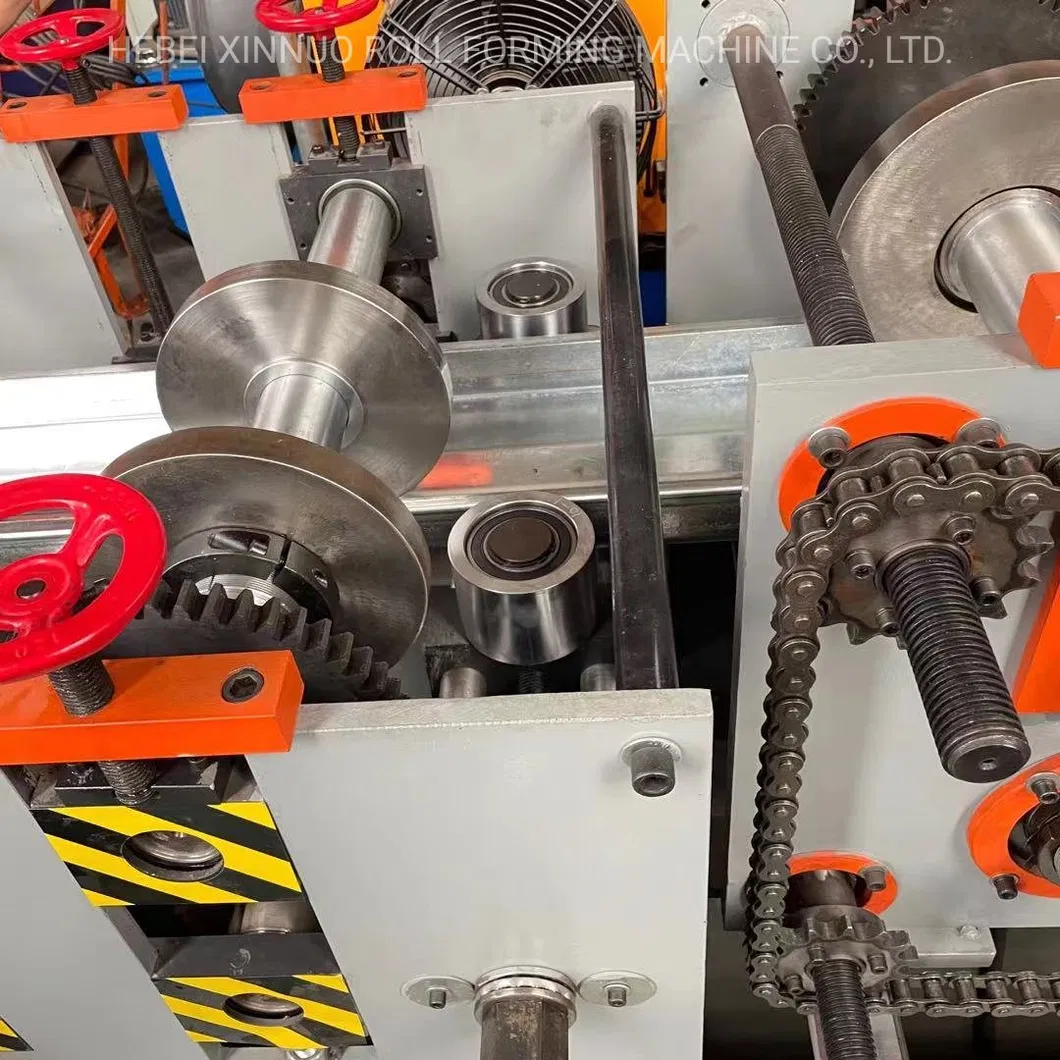

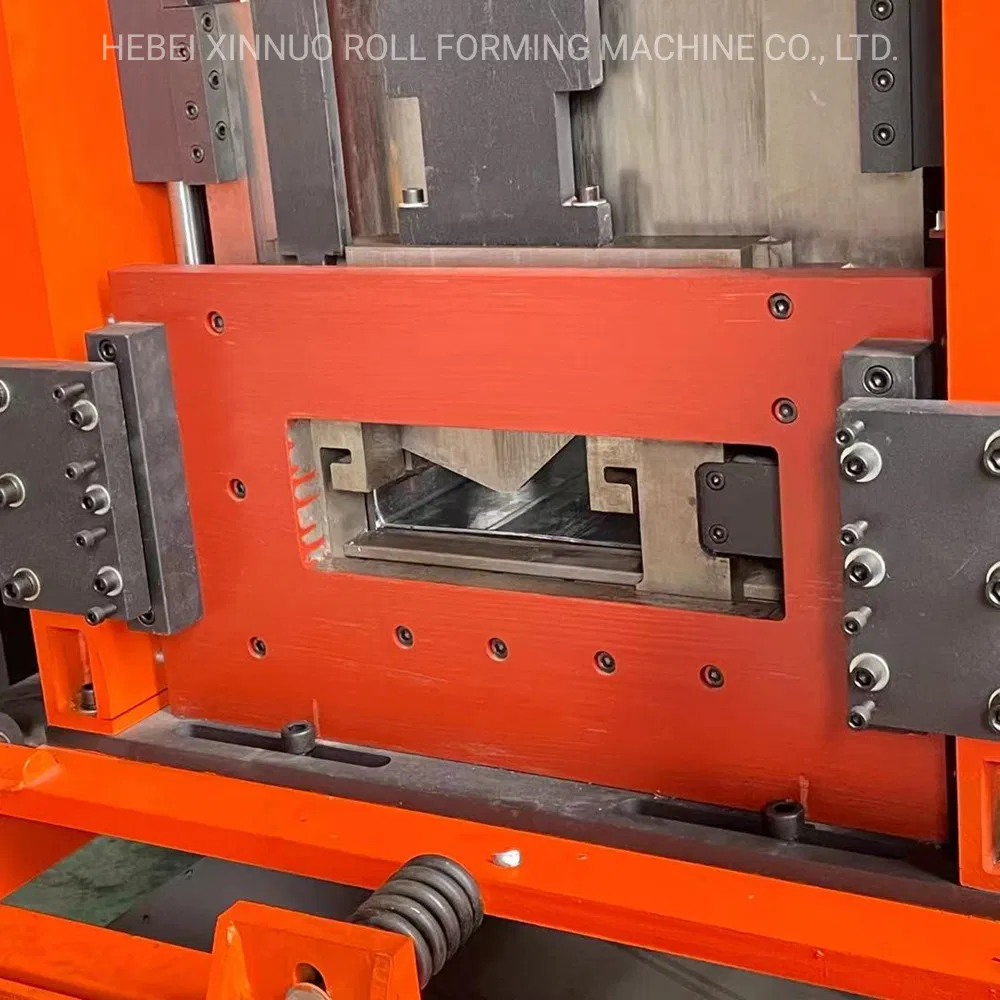

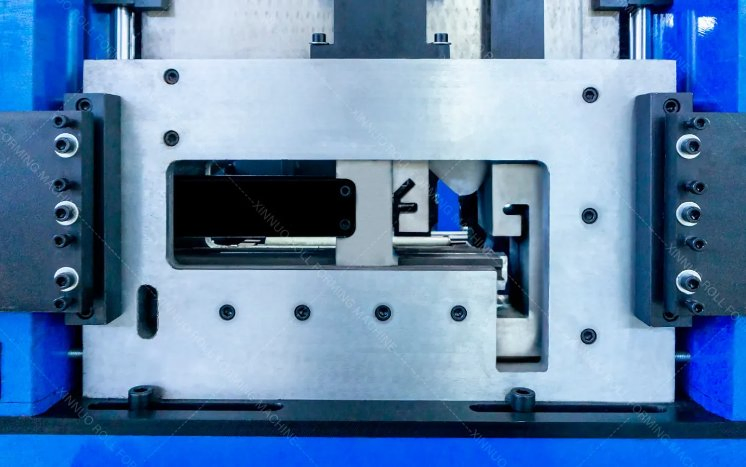

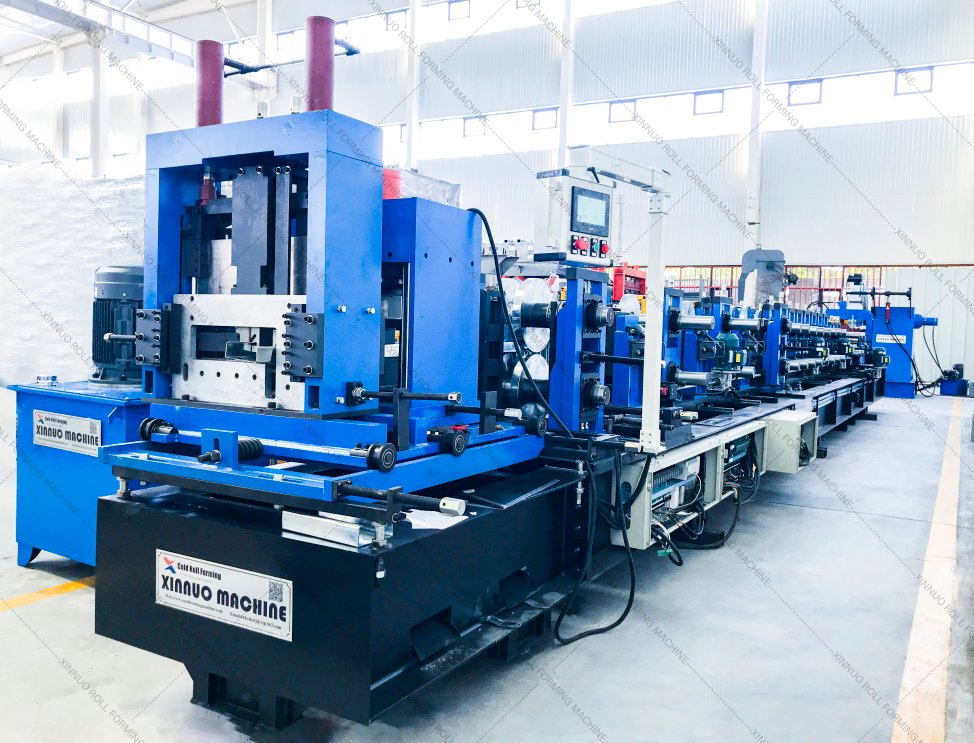

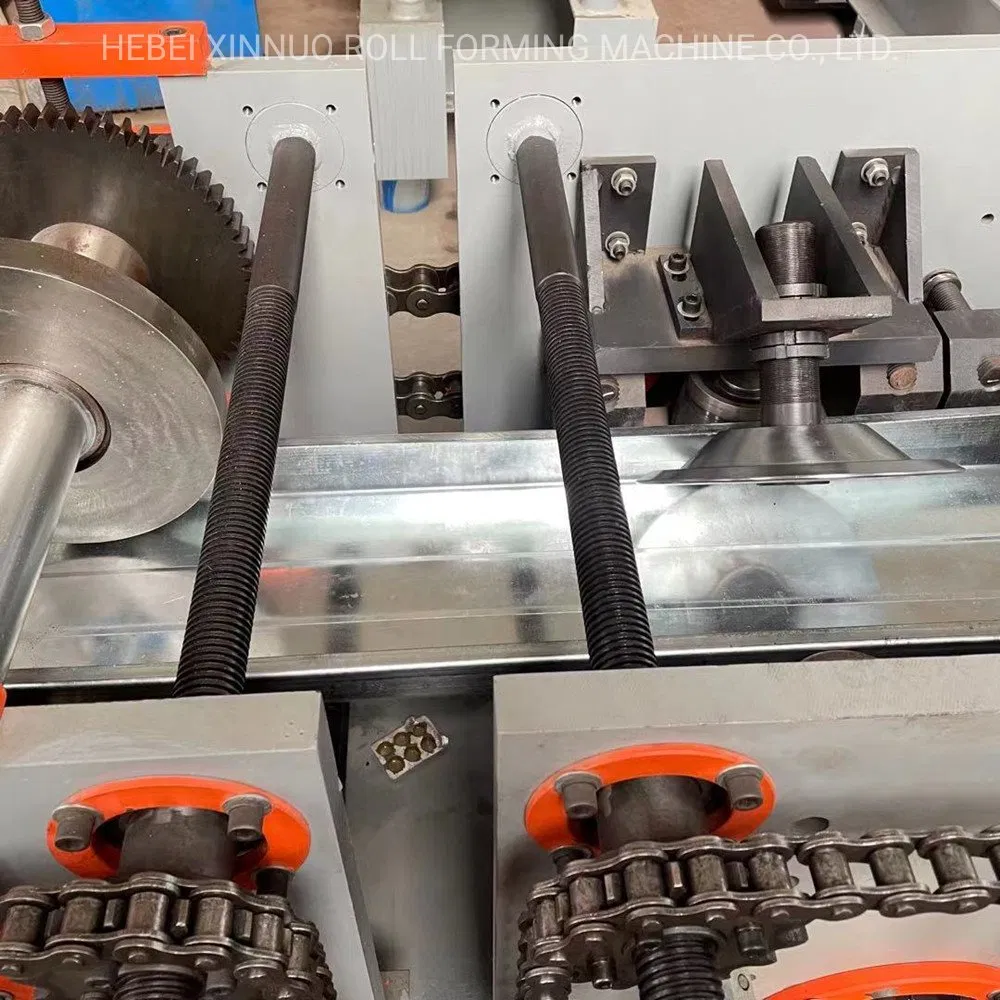

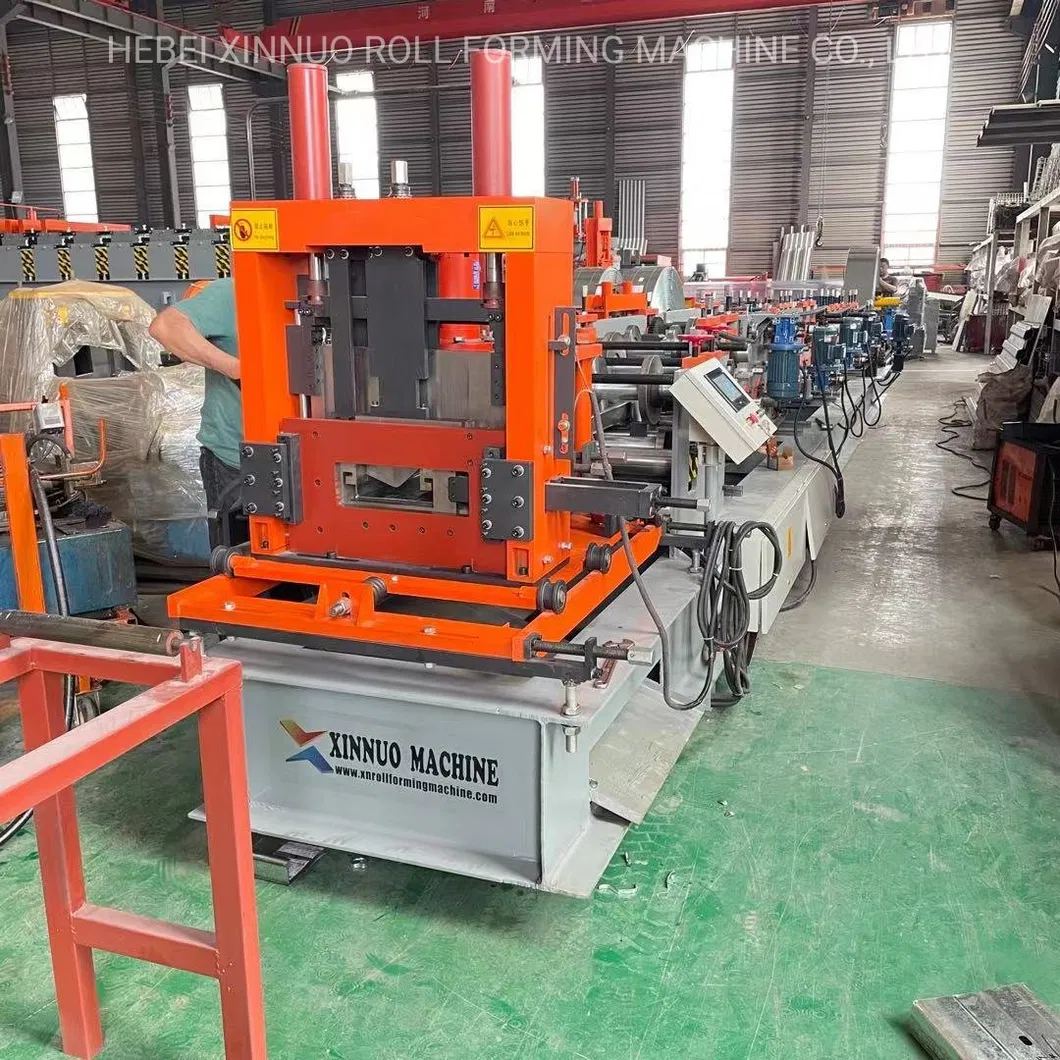

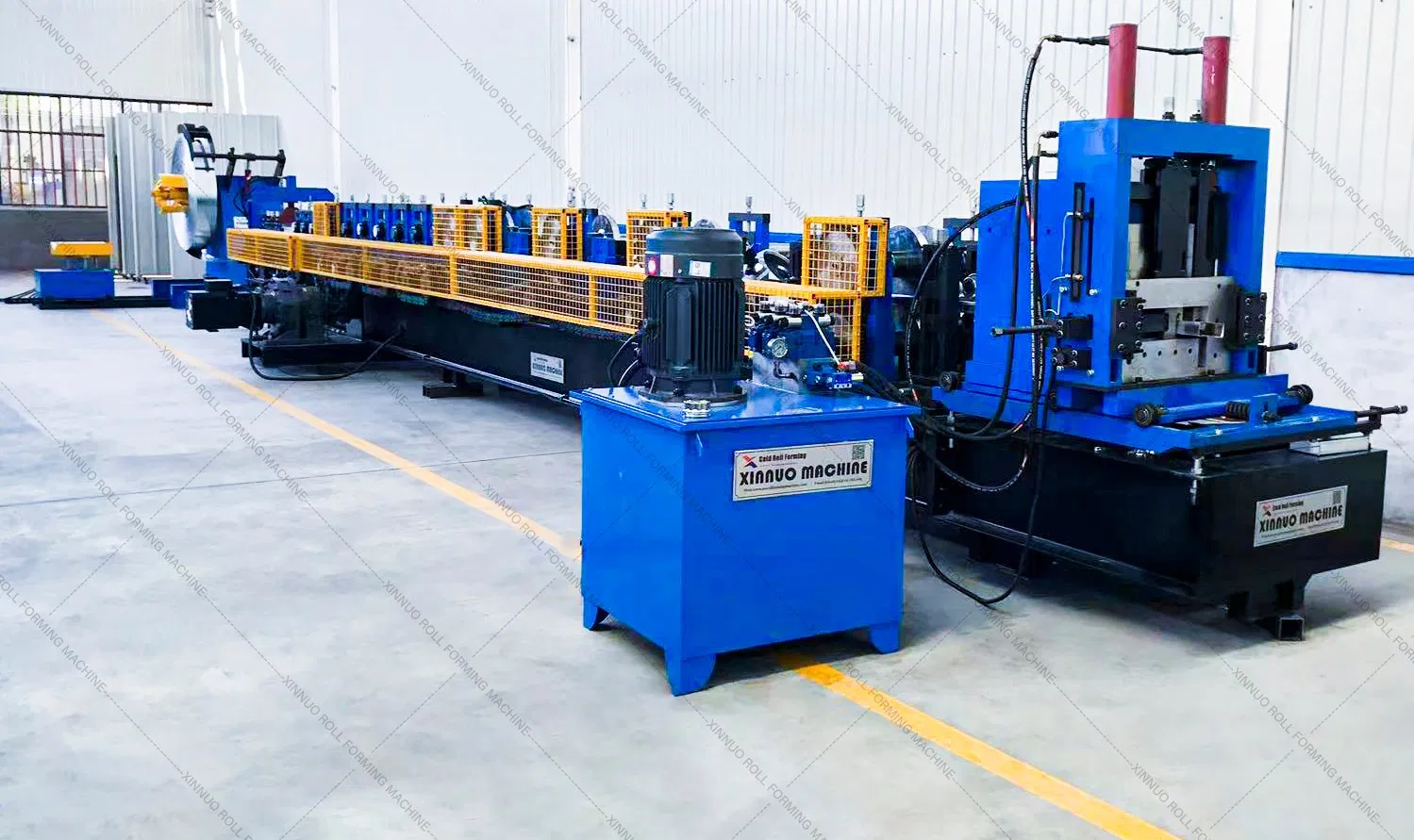

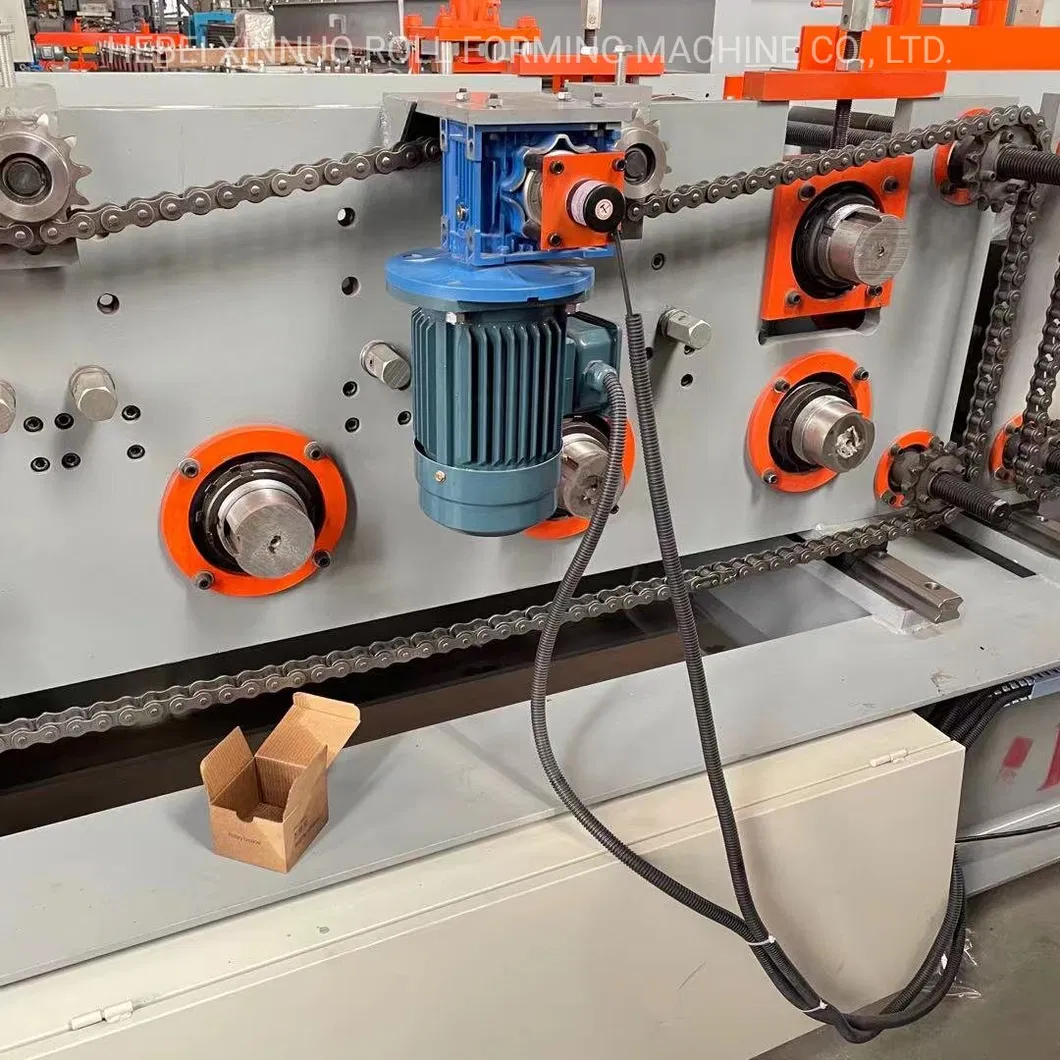

Detailed Photos

High Precision Steel C-Purlin Automatic Punching and Forming Machine

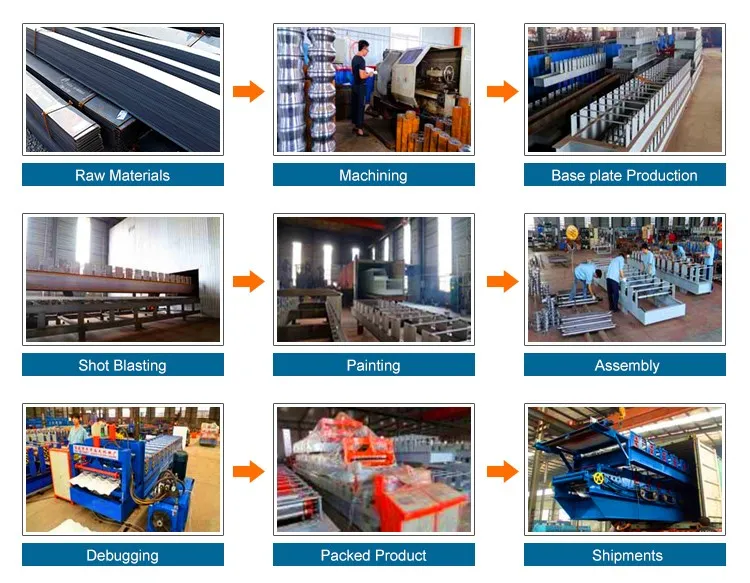

The Production Process

Raw material → Machining → Base plate production → Shot blasting → Painting → Assembly → Debugging → Packed product → Shipments

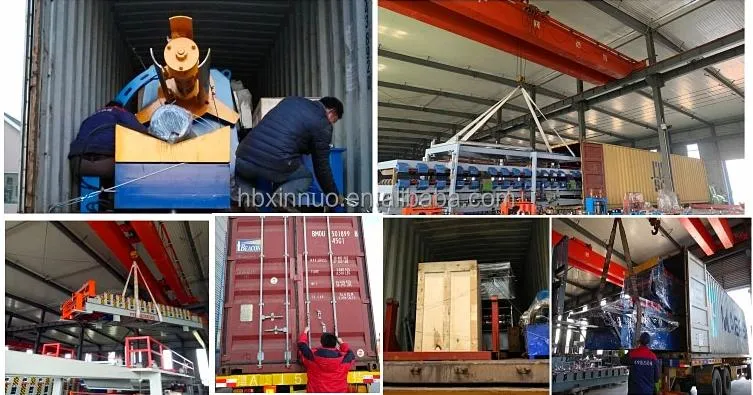

Packaging & Shipping

Frequently Asked Questions

1. How to place an order?

Inquiry → Confirm the profile drawings and price → Confirm the Proforma Invoice (PI) → Arrange the deposit or Letter of Credit (L/C) → Production commencement.

2. How can I visit the manufacturing facility?

Via Beijing Airport: Take the high-speed train from Beijing South to Cangzhou West (1 hour), where we can arrange a pickup.
Via Shanghai Airport: Take the high-speed train from Shanghai Hongqiao to Cangzhou West (4.5 hours), where we can arrange a pickup.

3. How long has the factory been exporting machinery?

The design, production, and international export of roll forming machinery have been steadily operating since 1998.

4. What is the guarantee and warranty policy?

We provide a lifetime maintenance guarantee. If any mechanical part fails, we will supply original replacement parts directly from our factory. If parts are damaged due to improper operation, the buyer will be responsible for the freight charges.

5. What after-sales services are offered?

To deliver efficient support, we first offer direct video conferences with professional technicians. Secondly, we can dispatch field technicians to your location for on-site installation and operator training. The buyer is responsible for all associated travel costs, including visa fees, round-trip flights, local accommodation, and a daily wage allowance of USD 100/day.
