| Specifications | Details |
|---|---|
| Model | TY18912H30 |
| Model Numbering Designation |
1, Drilling Tools 8, Heavy Duty Drills 9, Roof Bolters 12, Torque (120 Nm) H, Height 30, 3,000 mm (Max) |
| Current | Pneumatic |
| Power | 2,700 W (3.6 hp) |
| Working Torque | 120 Nm (88 ft.lb) |
| Max Working Torque | 185 Nm (136 ft.lb) |
| Free Speed | 700 rpm @ 73 PSI |
| Working Speed | 240 rpm @ 73 PSI |
| Air Consumption | 151 CFM @ 73 PSi |
| Max. Working Air Pressure | 90 PSi |
| Capacity | 32 mm (1-1/4”) |
| Max Force | 11.4 KN (2,562 lbf) |
| Working Force | 9.1 KN (2,045 lbf) |
| Sound Power | 110 dB(A) |
| Air Inlet | 1/2” |
| Rec Air Hose | 5/8” |
| Drill Bit Shank | S=19 S=22 |
| Weight | 53 kg (116.6 lb) |
| Water Pressure | 86 PSI - 174 PSI |
| Min Height | 1,280 mm (4.2 ft) |
| Max. Height | 3,000 mm (9.8 ft) |
| SKU | 359017 |

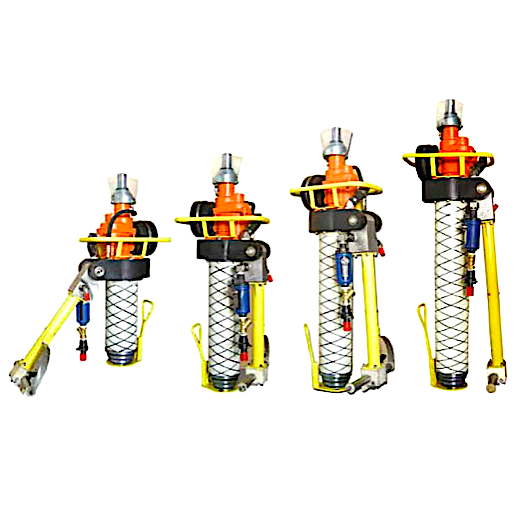

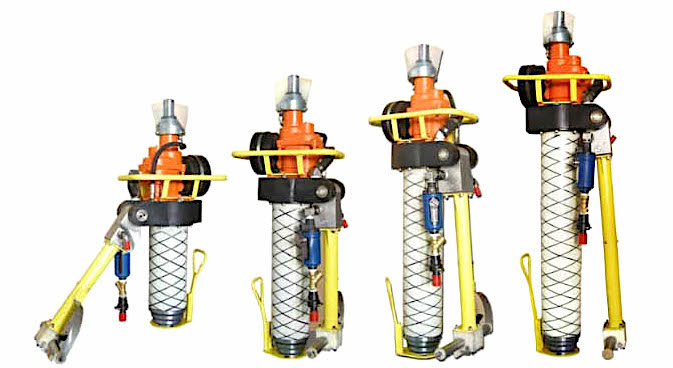

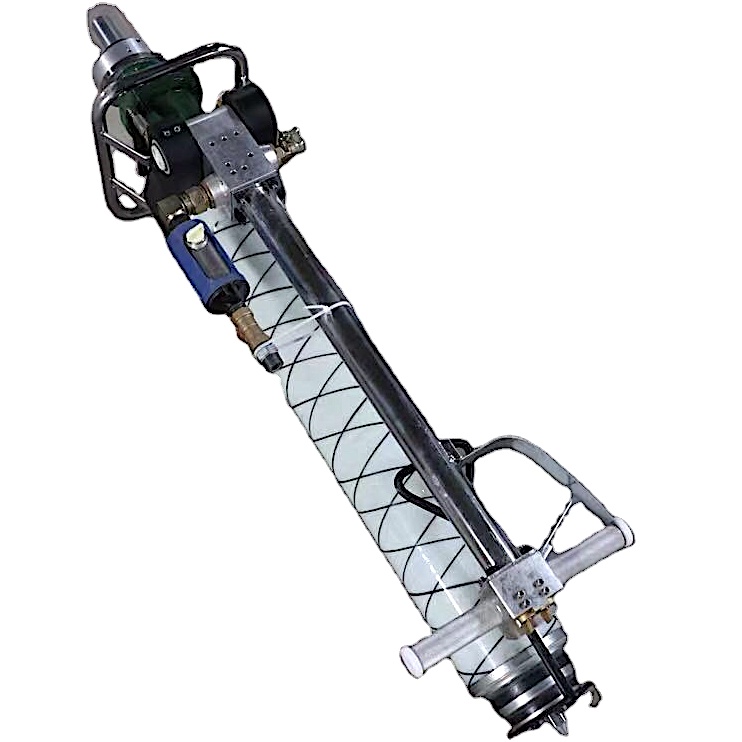

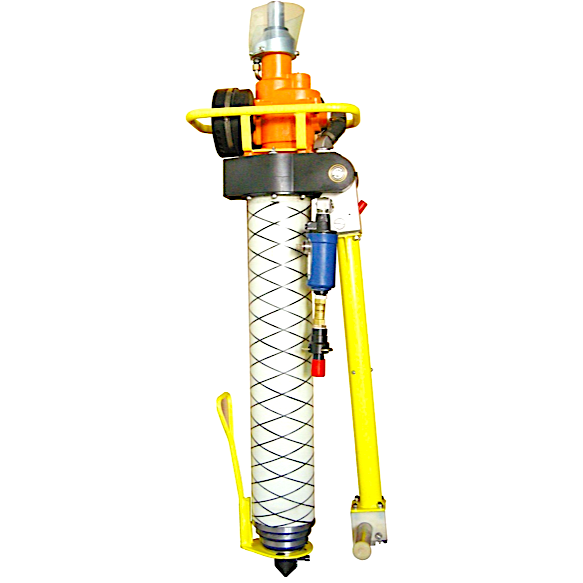

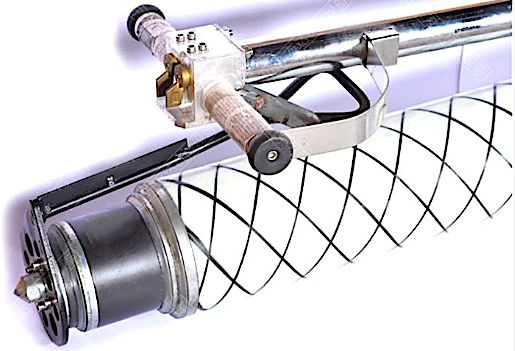

TY18912H30 Pneumatic roof bolter is a lightweight, hand held and manually operated rotary roof bolting machine. It is designed to drill a vertical hole, place and mix a bolt and resin capsules and tighten the nut on the roof of mining excavations. This roof bolter is known for its toughness versatile workhorse for underground roof bolting application, incorporating the latest research and innovations to improve reliability and cost effective performance. These roofbolters come in 2, 3, 4 stage configurations, with options of high speed or high torque drive heads to suit all your conditions.
We bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools, we make sure you have the technology you need to be safe and efficient. We supply both Russian pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Our export experience and manufacturing background in the air tools line spans for more than 10 years. These backbones have in-depth knowledge and know air tools very well.
You will find the owner’s manual, here named Passport, is not a simple exploded view or general safety rules translated by Google, but a detailed technical description and operating instructions accurately written.
We assure you only the best designs, materials and production methods are used to make the tools. Quality tool, favorable price, professional papers, and swift after-sale service are what we strive to put in your hand.
We warrant that the TY18912H30 Pneumatic Roof Bolter will not have any material or manufacturing defects for a period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for a period of 6 months from the date of delivery of the goods.
We undertake to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising from liability for defects which are not covered by the warranty, he/she shall pay all related costs.
The warranty shall be deemed void in the event of:
