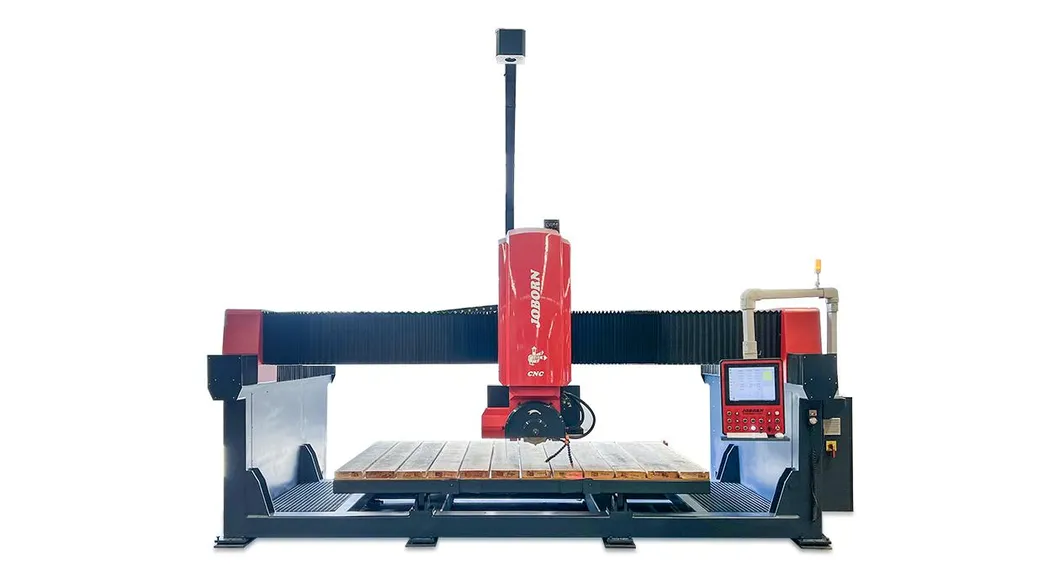

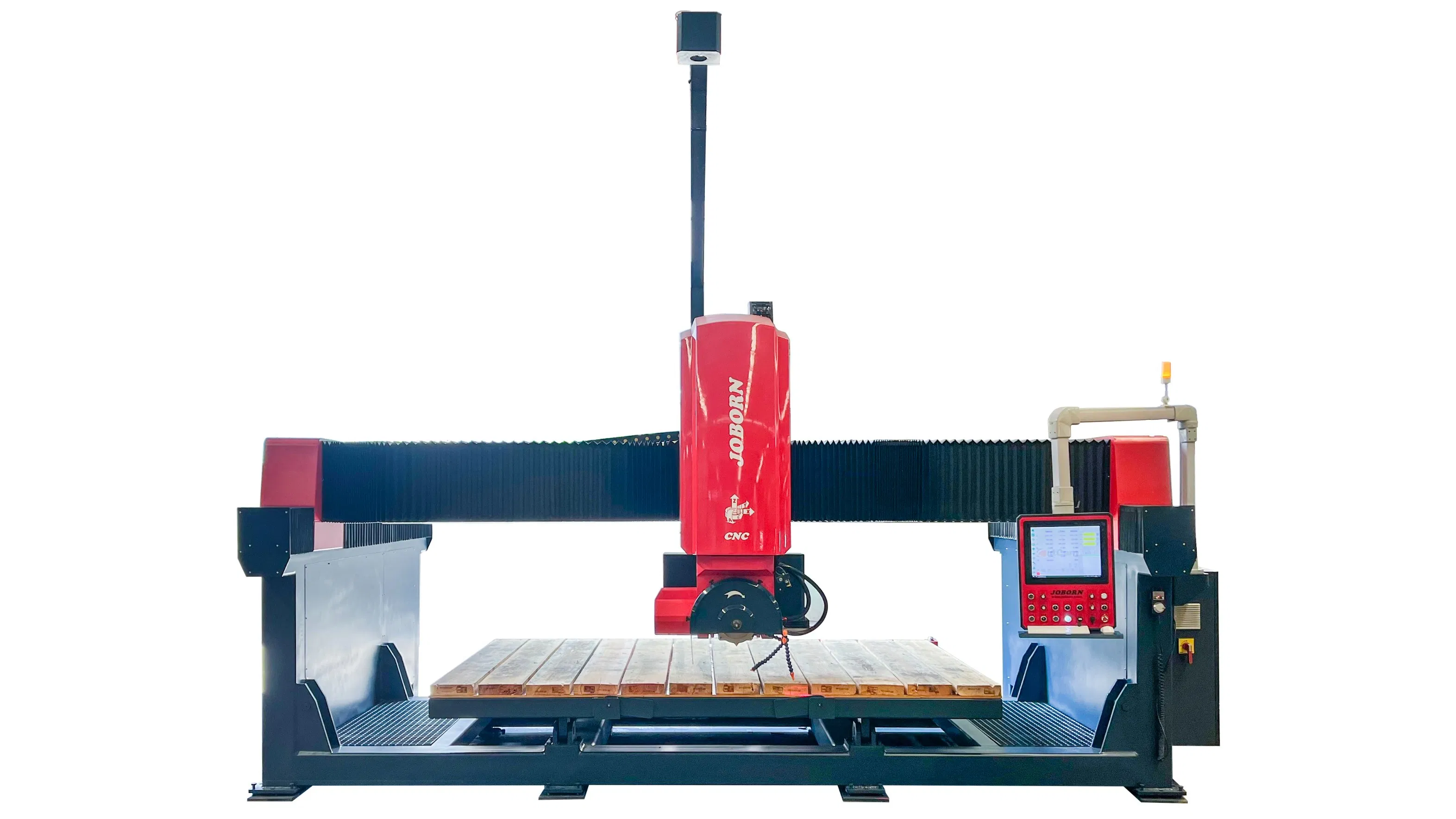

Monobloc 5 Axis CNC Bridge Saw for Stone Marble Granite Quartz Slabs Countertops Tiles Sink Cutting Machine in Spain

CNC450-5 AI CNC Machine and Stone Cutting Tool with 5 Axis for Cutting Granite & Marble, 5 axis Stone Cutting Machine for Cutting Granite/Marble/Quartz

CNC450/600/700-5 AI five-axis CNC bridge cutting machine adopts an industrial computer and is equipped with a Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc., standard camera function for visualization and easy operation. The tool setting function can measure the diameter of the saw blade in real-time and compensate for wear and tear. The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter. In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer. The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate.

Features

5 axis linkage control with CNC control system.
Easy to use interface with 17" color touch-screen.
The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import.
The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability.
The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive.
Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive.
The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive.
A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision.
Working platform can tilt 85 degrees, easy for slabs loading.
Photo taking & tool setting function.
Milling cutter function.
Suction cup function.
Thickness measurement function.

Core Functions

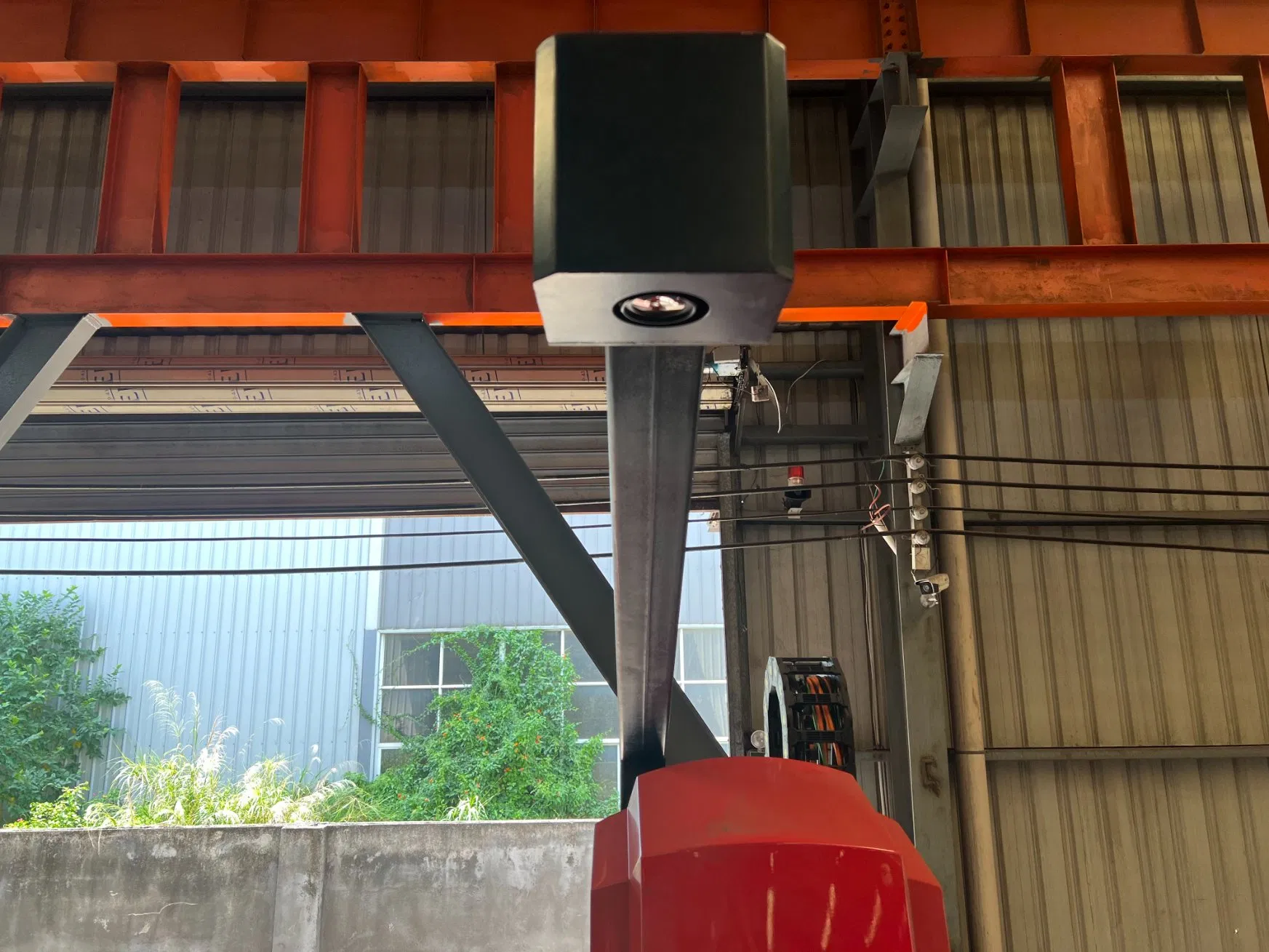

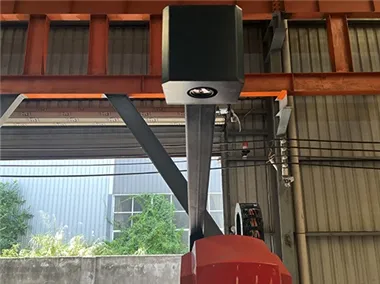

Camera Function

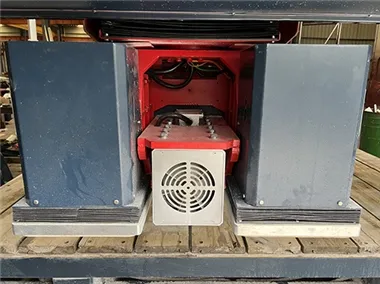

Sucker Function (Optional)

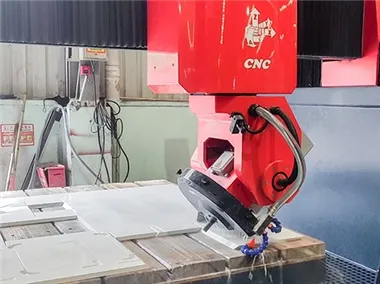

45 Degree Processing

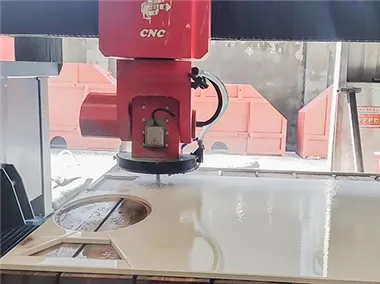

Milling Processing

Straightline Processing

Processing Display

Technical Parameter

CNC450/600/700-5 AI Five Axis CNC Bridge Cutting Machine
Appellation	Unit	CNC450-5 AI	CNC600-5 AI	CNC700-5 AI

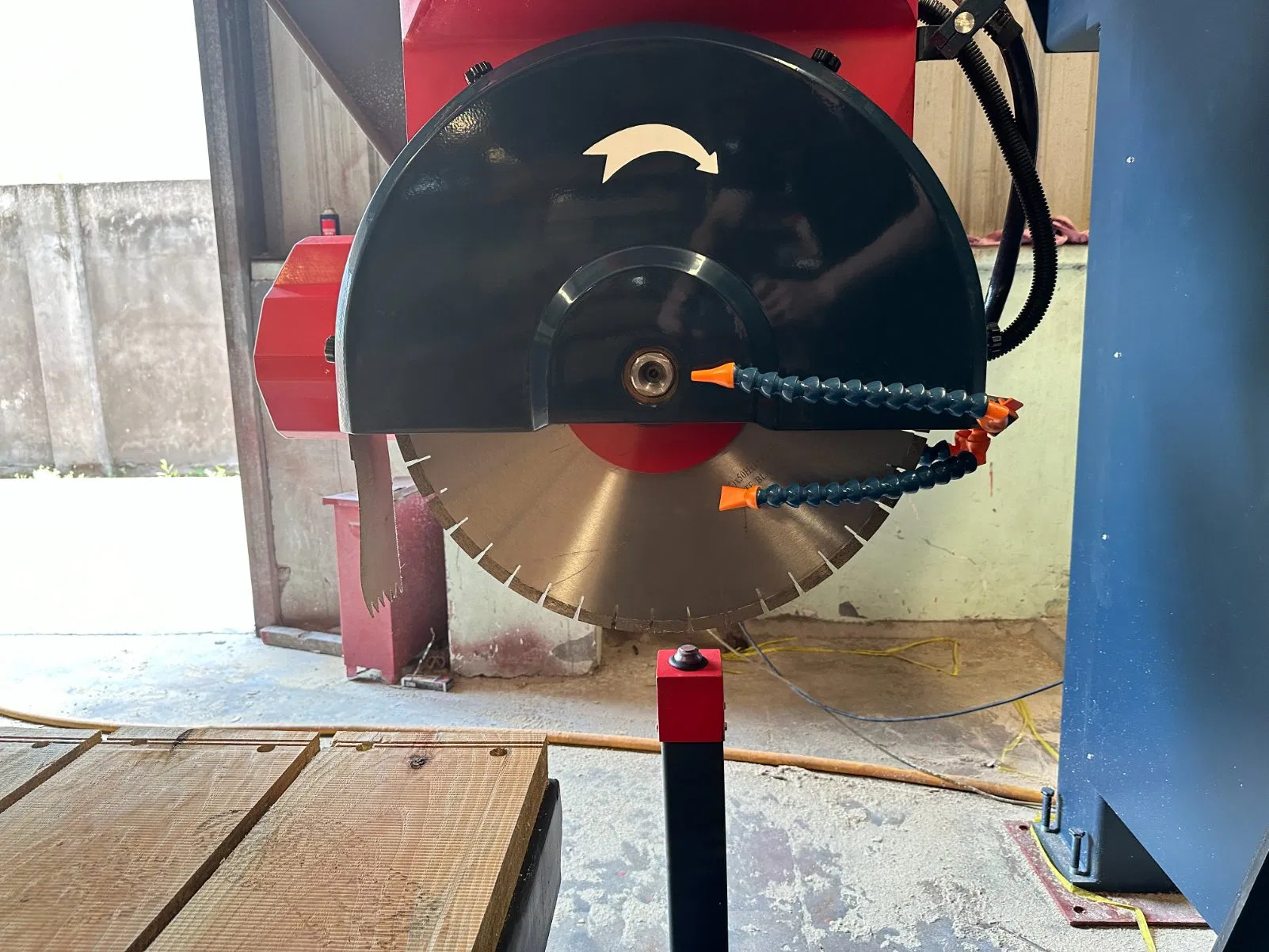

Max. Diameter of saw blade	mm	Φ350-450	Φ400-600	Φ450-700
Vertical Z stroke	mm	300	500	500
Main motor rotation range	degree/°	±360°
Main motor tilting range	degree/°	0~90°
Main motor rotation speed	r/min	0-6000
Power of main motor	kW	15	18.5	22
Dimension of worktable	mm	3200x2000
Worktable flipping angle	degree/°	85°
Water consumption	m³/h	3
Total power	kW	27	31	34
Dimension(LxWxH)	mm	5800x3400x3900 (incl. the camera)

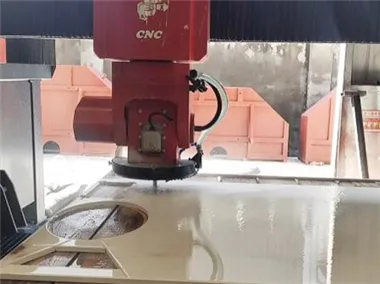

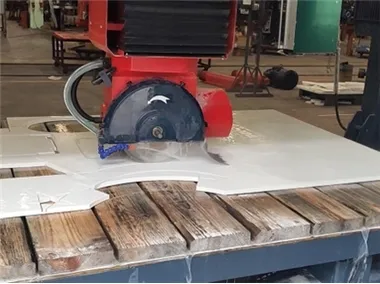

Processing Spot

Machine Specifications & Diagrams

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional and top stone machine manufacturer with more than 30 years of experience. We also have authorized agents worldwide to handle machine after-sales services.

Can I get a machine configured according to my own requirements?

Sure. We welcome OEM and ODM orders to meet your specific processing demands.

Is this machine easy to operate for first-time users?

Yes. Guide videos showing how to use the machine and an English instruction manual are sent with the machine. We also provide free, professional online guidance to ensure you can operate it confidently.

What is your MOQ and delivery policy?

Our MOQ is 1 set. We can ship the machine directly to your country's port or your specific address. Please share your port name or address for competitive pricing and freight options.

How does your after-sales service work?

We offer free online guidance for the machine's entire lifetime. Additionally, in many countries, local dealers are available to perform installation and maintenance services.

If the machine breaks down, how can it be repaired?

Many of our machines support remote troubleshooting, allowing us to solve issues via remote control and video guides. For standard parts replacement, we provide detailed instruction guidelines, and local agents in supported countries will handle repairs directly.
