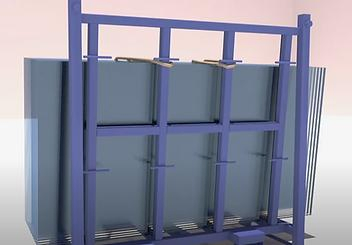

L Shape Rack for Glass is designed for the transport and storage of glass sheets. It is ideal for storing and transporting original glass sheets in the workshop. This rack boasts a flexible design that facilitates stacking, storage, and transport. At the same time, it provides outstanding protection and support, ensuring the safe and efficient transportation of glass sheets. It effectively solves the storage and transport issues of finished or semi-finished glass.
The L-Type/shape glass storage rack/shelf is a multi-functional glass stock rack integrating storage and transport all-in-one.
It is the first choice to store fragmented glass or finished glass.
The shelf angle strictly controlled at 90 degrees, so it will never be slipped for the hollowed glass.

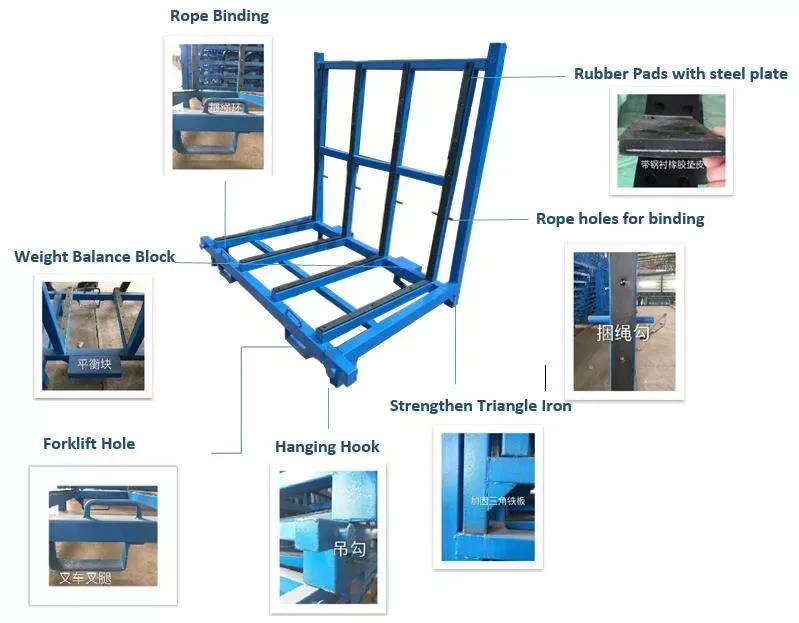

With a crown block and forklift truck, it can move glass with great stability. And also can be directly handled by crane.
The shelf can be overlaid one by one to save storage space, transport space, and improve the utilization rate of the warehouse.

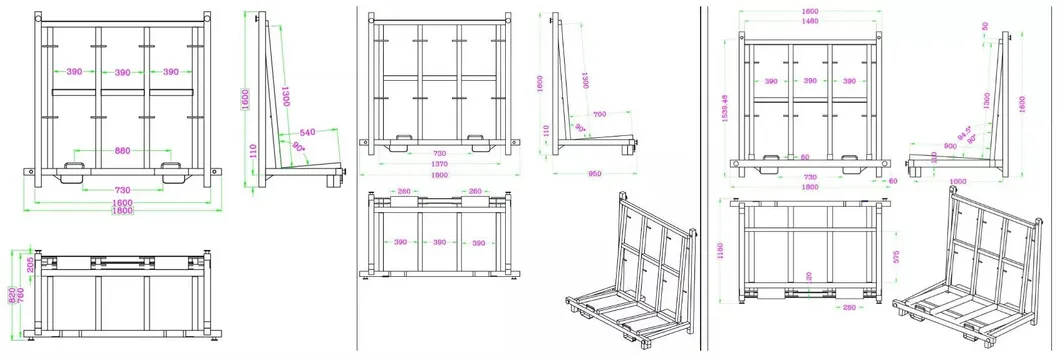

| Model | L frame glass rack | L frame glass rack | L frame glass rack |
|---|---|---|---|
| Specification (mm) Length*Height*Width |
1800*1600*750 | 1800*1600*950 | 1800*1600*1150 |
| Storing Thickness (mm) | 540 | 690 | 890 |
| Qty for 1*40HQ (pcs) | 86 | 75 | 68 |
| Self-weight (kgs) | 95 | 100 | 115 |
| Note | Customized size and design are available. | ||
| LENGTH | HEIGHT | WIDTH | USAGE |
|---|---|---|---|
| 1800(MM) | 1600(MM) | 820(MM) | The glass thickness is 540mm, transported by a small truck. |
| 1800(MM) | 1600(MM) | 980(MM) | The glass thickness is 690mm, transported by a middle-size truck. |
| 1800(MM) | 1600(MM) | 1180(MM) | The glass thickness is 890mm, transported by a large truck. |
