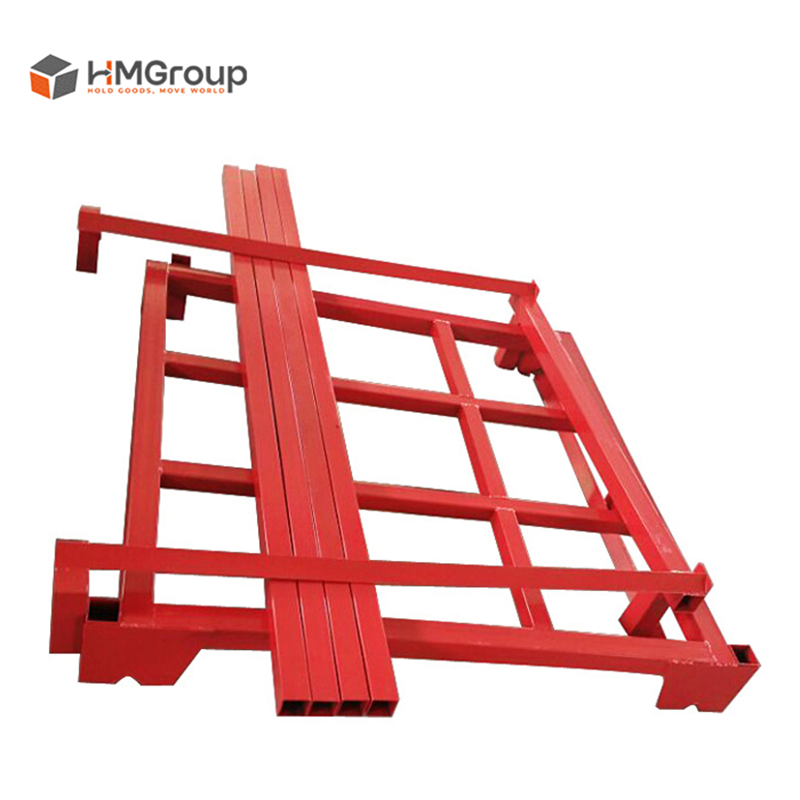

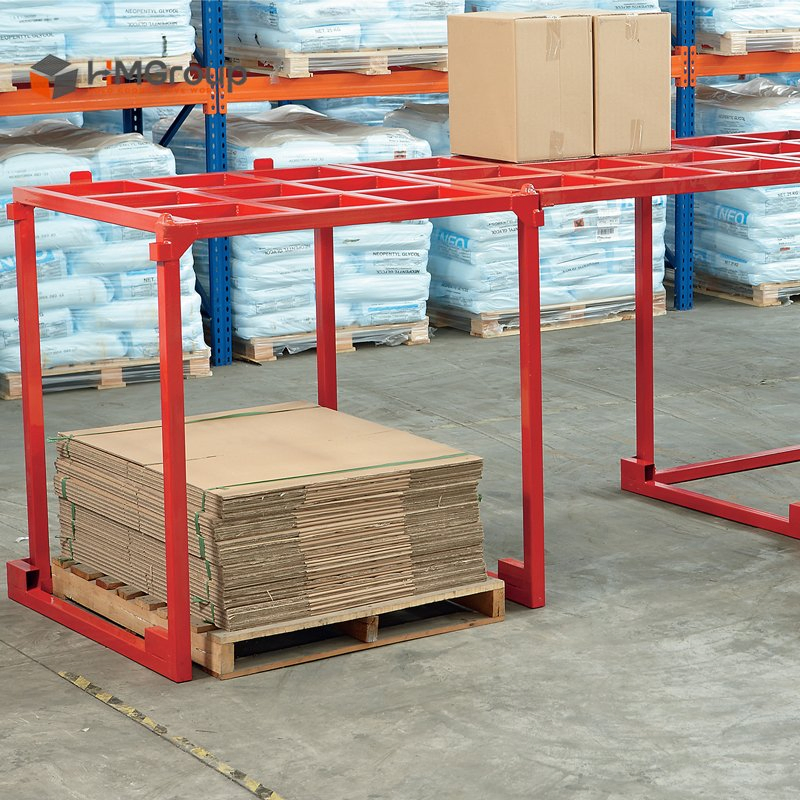

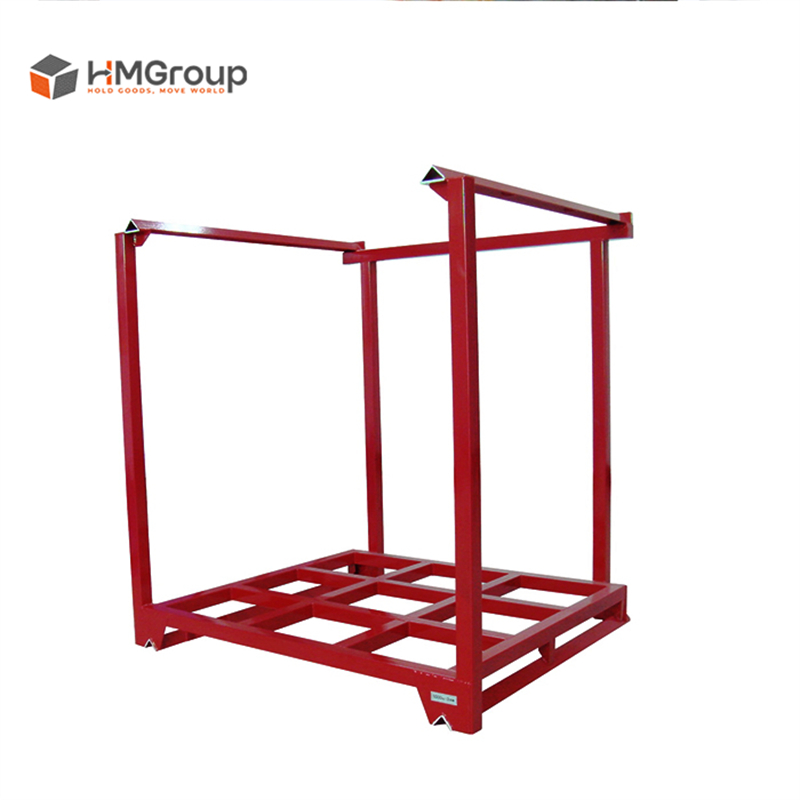

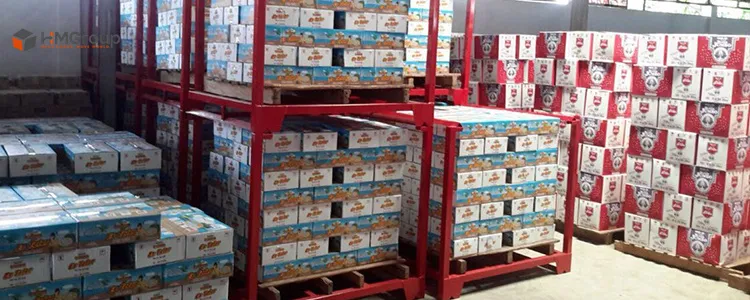

Logistics Warehouse Storage Stacking Adjustable Portable Pallet Tainer Rack System

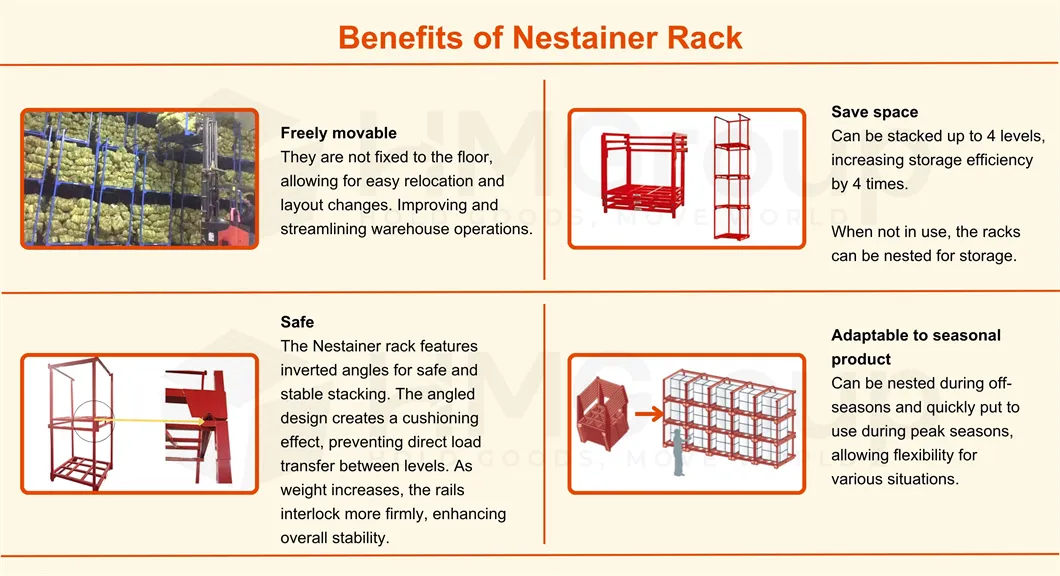

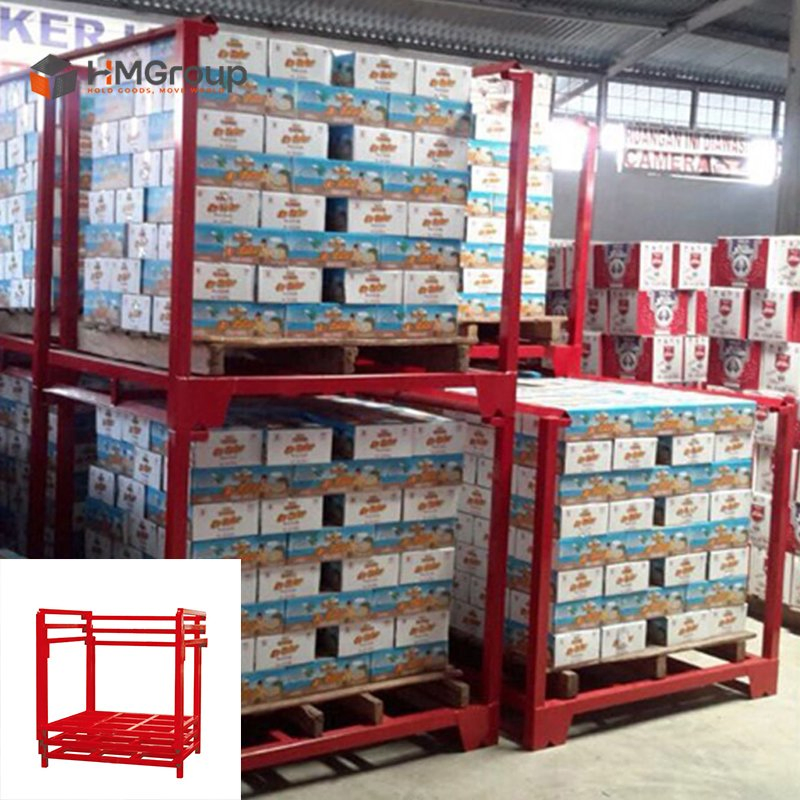

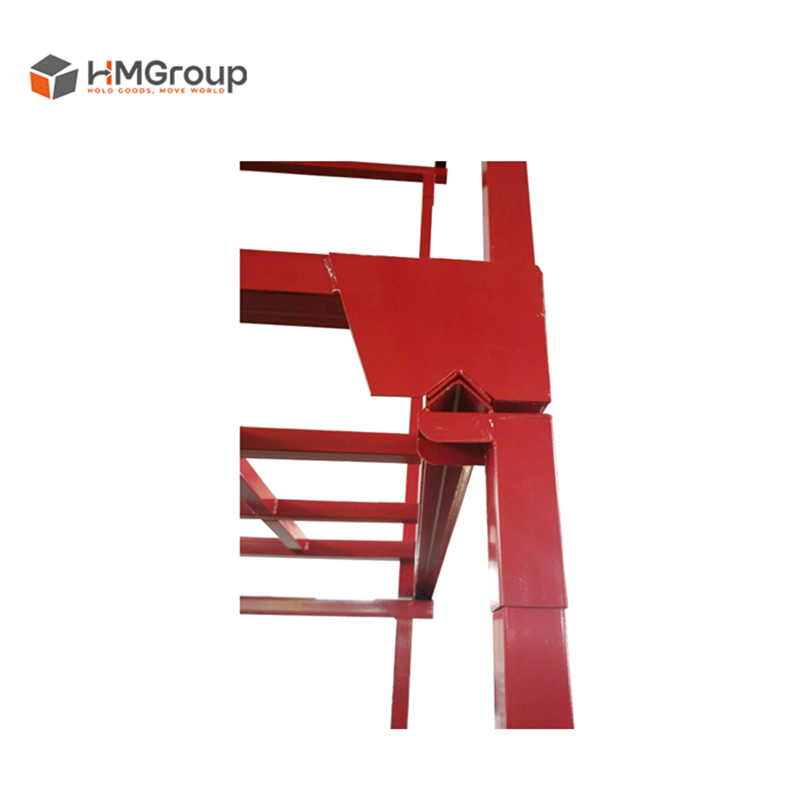

By positioning the top rack's bottom angles over the unit's stacking tubes below, the nestainer racks can be guided into their stacked position for total column-to-column loading.
| Same design, different sizes | |||||
|---|---|---|---|---|---|
| Model No. | Exterior Dimension (LxWxH mm) | Interior Dimension (LxWxH mm) | Loading capacity (kg) | Stackability | Total container |
| HM-N1302 | 1300x1200x1200 | 1200x1150x1000 | 1000 | 4 | 1x40'HQ |
| HM-N1304 | 1300x1200x1400 | 1200x1150x1200 | 1000 | 4 | |
| HM-N1402 | 1400x1200x1200 | 1300x1150x1000 | 1000 | 4 | 1x40'HQ |
| HM-N1404 | 1400x1200x1400 | 1300x1150x1200 | 1000 | 4 | |
| HM-N1502 | 1500x1200x1200 | 1400x1150x1000 | 1000 | 4 | 1x40'HQ |
| HM-N1504 | 1500x1200x1400 | 1400x1150x1200 | 1000 | 4 | |
| HM-N1602 | 1600x1200x1200 | 1500x1150x1000 | 1000 | 4 | 1x40'HQ |
| HM-N1604 | 1600x1200x1400 | 1500x1150x1200 | 1000 | 4 | |
| Material | Mild steel Q235 | ||||
| Finish | Powder coating | ||||
| Available design | Detachable/undetachable | ||||

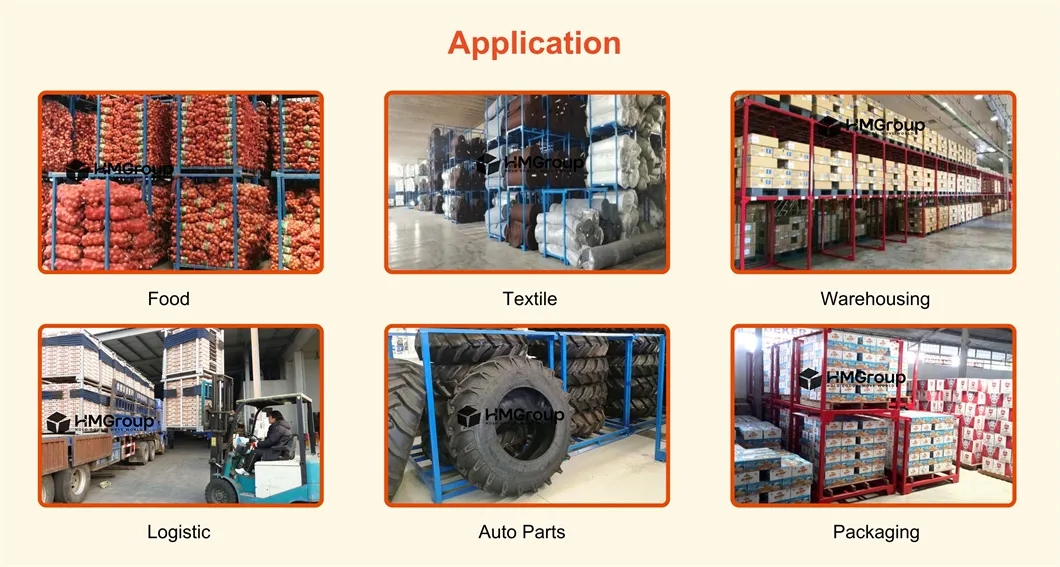

| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||
| Key features |
1. Ideal solution for palletized cargo. 2. Eliminates the need for wooden pallets for loose cargo. 3. Customized to suit your products and storage environment. 4. Assembled and disassembled within seconds. 5. When not in use can be stowed away in less than 10% of space. 6. No maintenance required. |
||||
The maximum loading capacity varies depending on the size and type of unit. Generally, it can load up to 1000 kg.
The right size depends on the dimensions of your pallets, the height of your warehouse, and the loading capacity you require. We can also help you determine the best fit.
They are made of mild steel, and powder-coated with galvanized or powder-coated finishes.

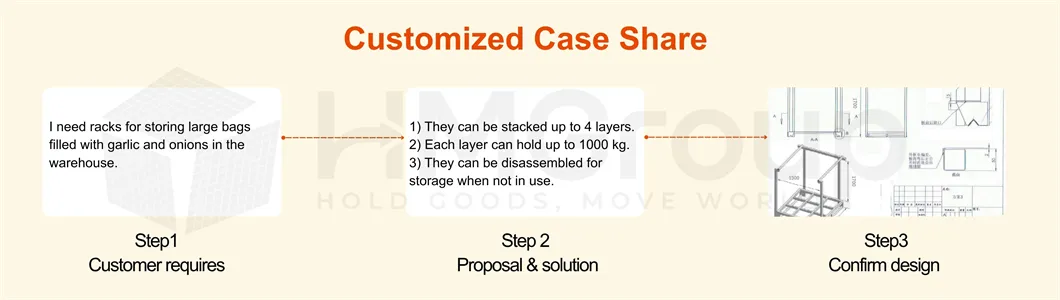

Yes, custom products and projects are available to suit your specific storage needs.

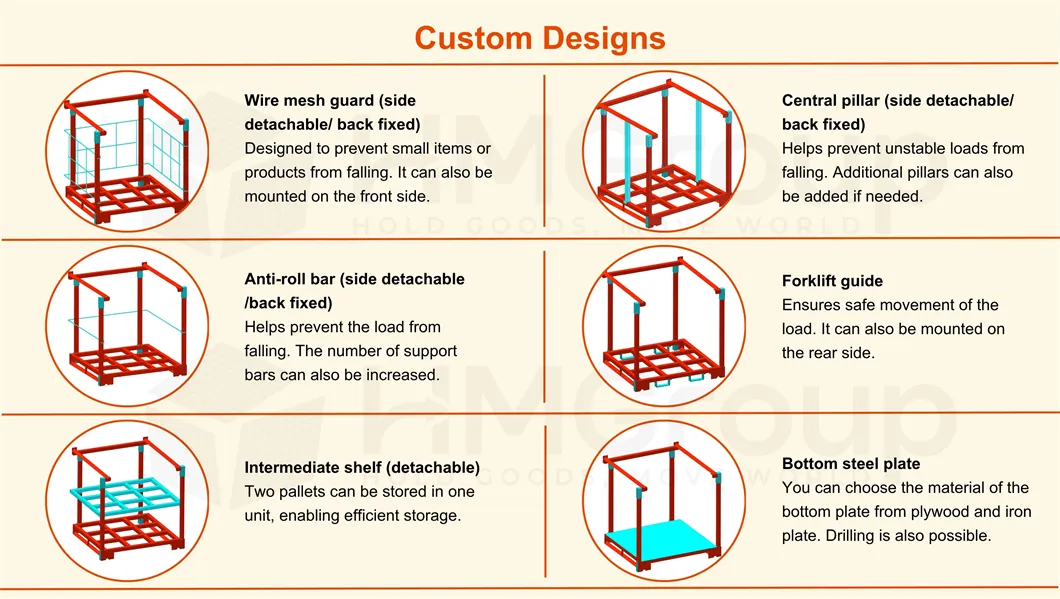

Yes, they can be customized with various features, including sizes, finishes, logos, and other branding elements.
Full responsibility is accepted for any manufacturing defects, and we will refund or re-ship them to you.
