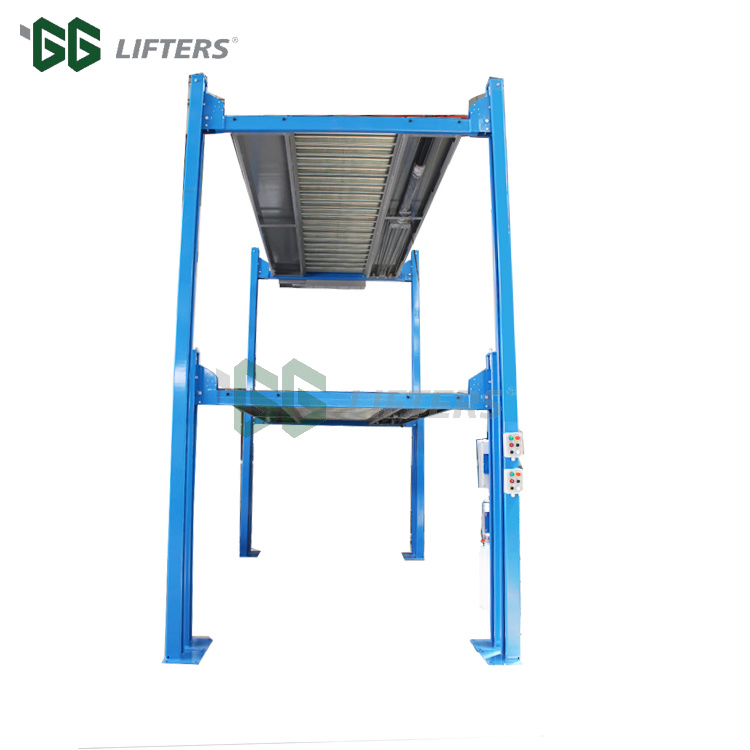

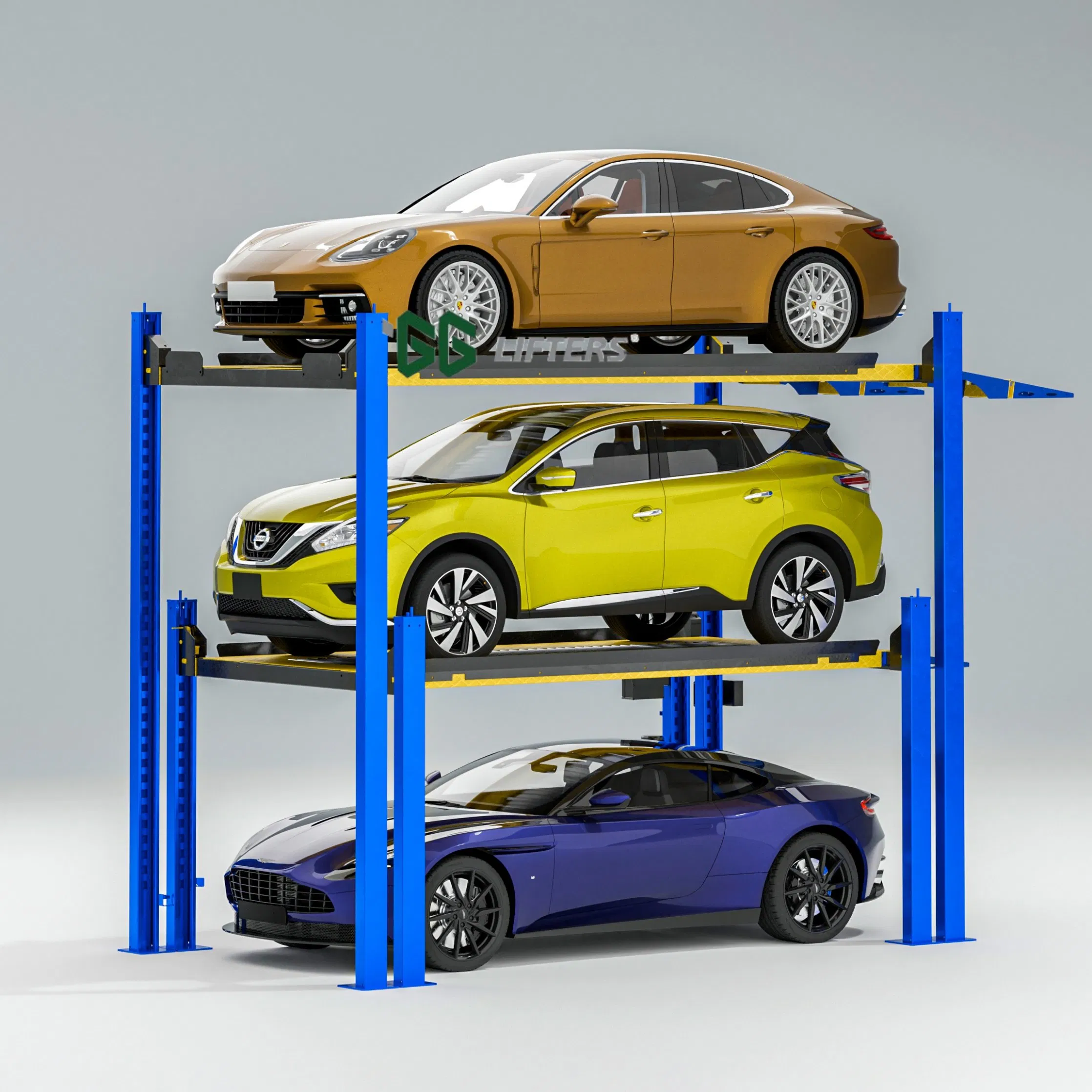

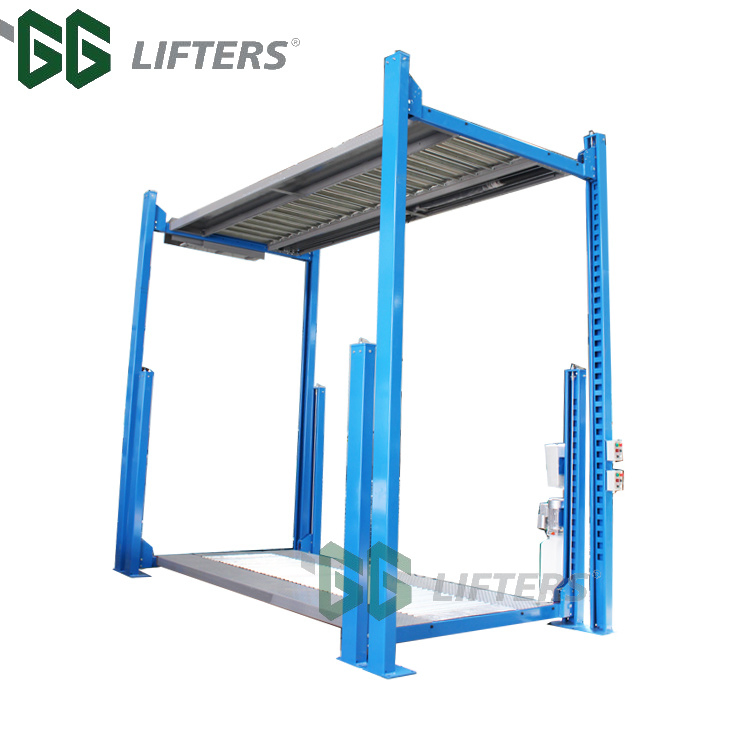

Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
1 / 5
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System

Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System

Customization: Available
Parking Post: 1-8 Posts
Level: 2-4 Levels
Send Inquiry

Product Description

Basic Info.
Model NO.
PEP54/3500
Capacity
Customizable
Color
Customizable
Installation
Indoor & Outdoor
Lifting Height
Customizable
Material
Steel
Operation
Manual
Safety Features
Automatic Safety Locks, Emergency Stop Button, Overload Protection
Type
Parking Lift
Vehicle Compatibility
Sedans, SUVs
Warranty
2 years
Lifting Capacity
3600 kg + 2700 kg
Runway Type
Checkered steel plates
Brand of Oil Seals in Cylinder
Aston, Italy
Operation Method
Electric operation with operation panel
Quantity per 40' Container
multi-storey garage car parking system manufacture
Safety Device
Double safety locks
Motor Capacity
2 separate units each is 2.2 Kw.
Lock Release Type
Electromagnetic lock release
Middle in the Runway
4 ea plastic oil trays in the middle of runway
Certification
CE, ISO, CCC, SGS
Lift Mode
Hydraulic Cylinder
After-sales Service
Supply with sales installing
Working Mode
Electric operation
Voltage
According to customer's requirement
Transport Package
Steel Pallets + Air Bubbles Plastic Wrapping + Strap
Specification
6227 * 2682 * 4201 mm
HS Code
84289020
Production Capacity
300 pieces/Month
Product Description

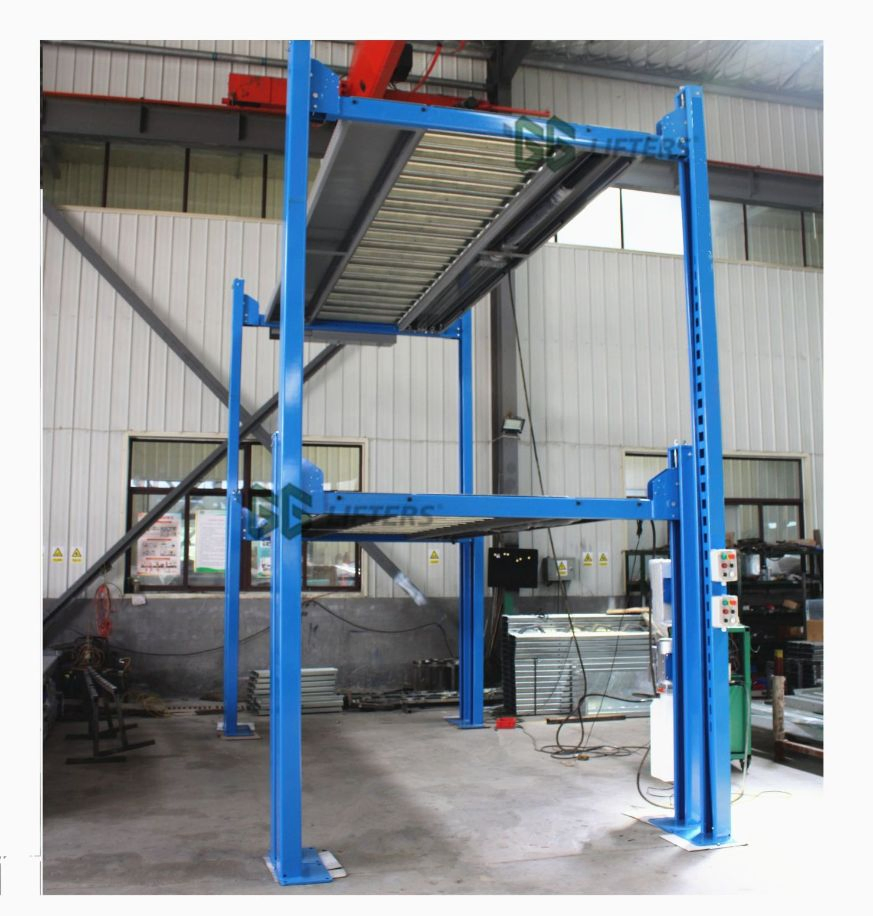

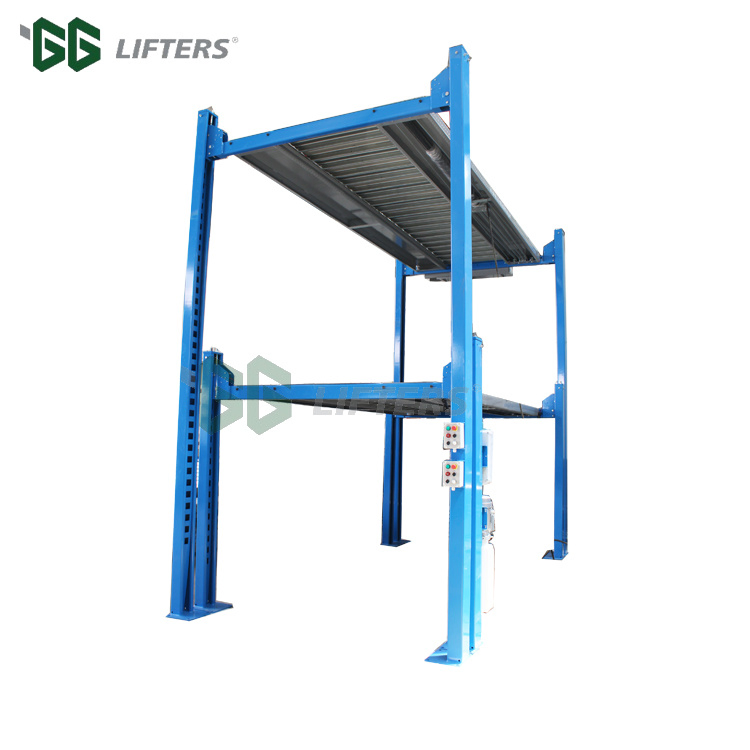

Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
  • 1. 2 separated 4 post car parking lifts installed together, one external and one internal.

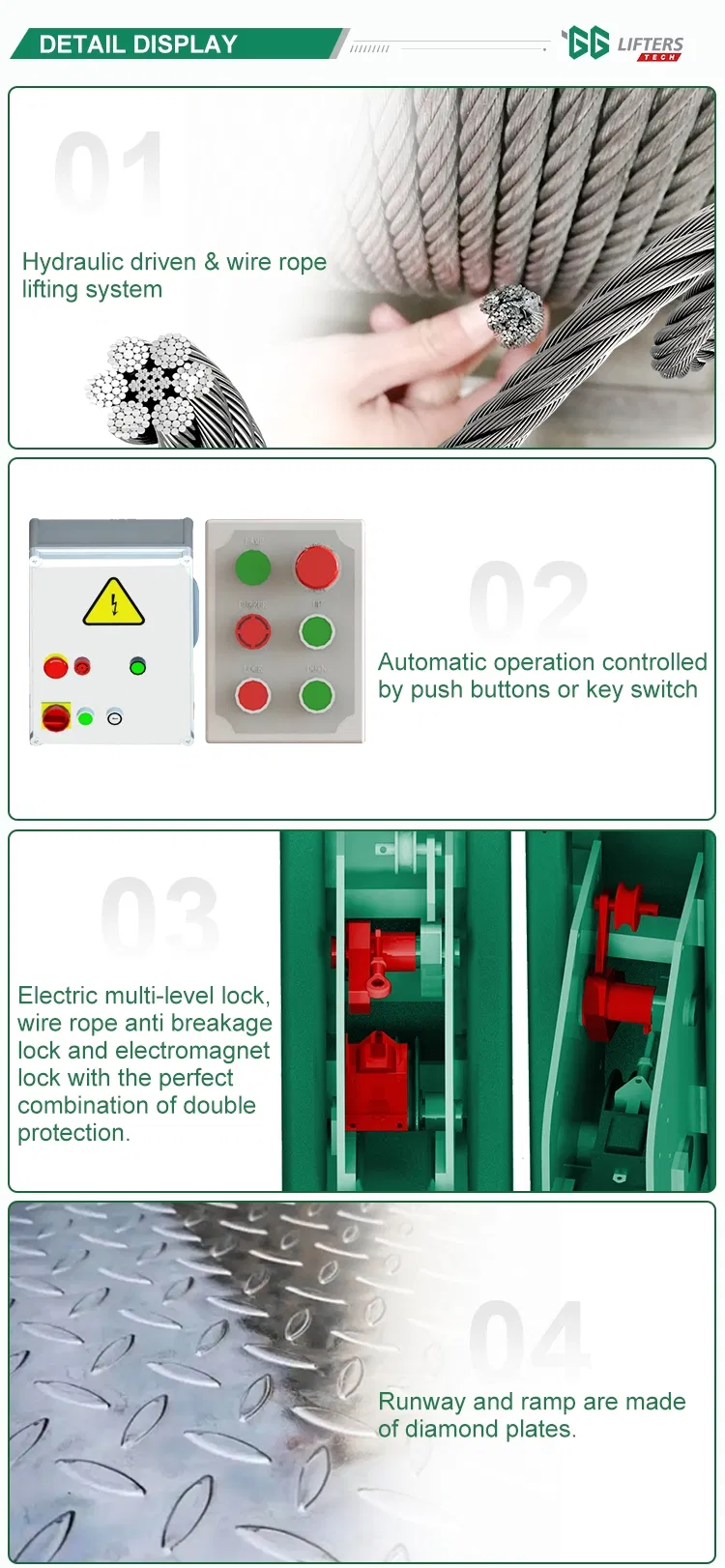

  • 2. Hydraulic driven cylinder with wire rope lifting system through sheaves.
  • 3. Double safety locks in each post: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
  • 4. Foldable ramps suitable for sport cars and occupy less space.
  • 5. Automatic locking system of the latches inside ladders while electromagnetic lock release through push button on operation box.
  • 6. Electric control panel & hydraulic power unit of external lift will be placed inside a compartment fixed to the back side of its platform.
  • 7. Electric control panel & hydraulic power unit of internal lift will be placed inside a compartment fixed to the right side of its platform.
  • 8. Separate Operation box for each lift, will be fixed on the front right post.
  • 9. Wheel stoppers on upper platform.
  • 10. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Parameter Detail Specification
Model No. PEP54/1800
Lifting Capacity 2700 kg per platform, 5400kg totally
Lifting Height 1800mm + 1800mm
Driven Type Hydraulic driven

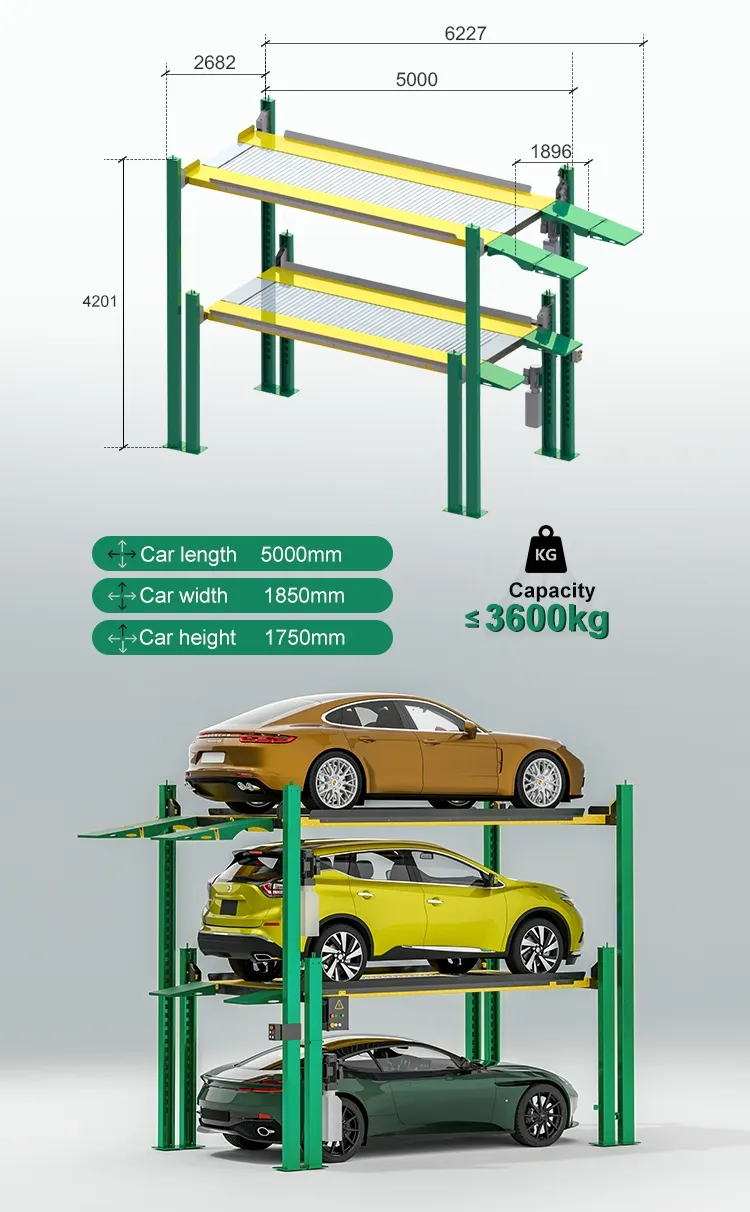

Unit External Dimensions 6227 * 2682 * 4201 mm
Platforms Length x Width Lower: 4200 x 1986 mm
Upper: 4780 x 1986 mm
Lock Release Type Electromagnetic lock release
Operation Type Electrical Operation

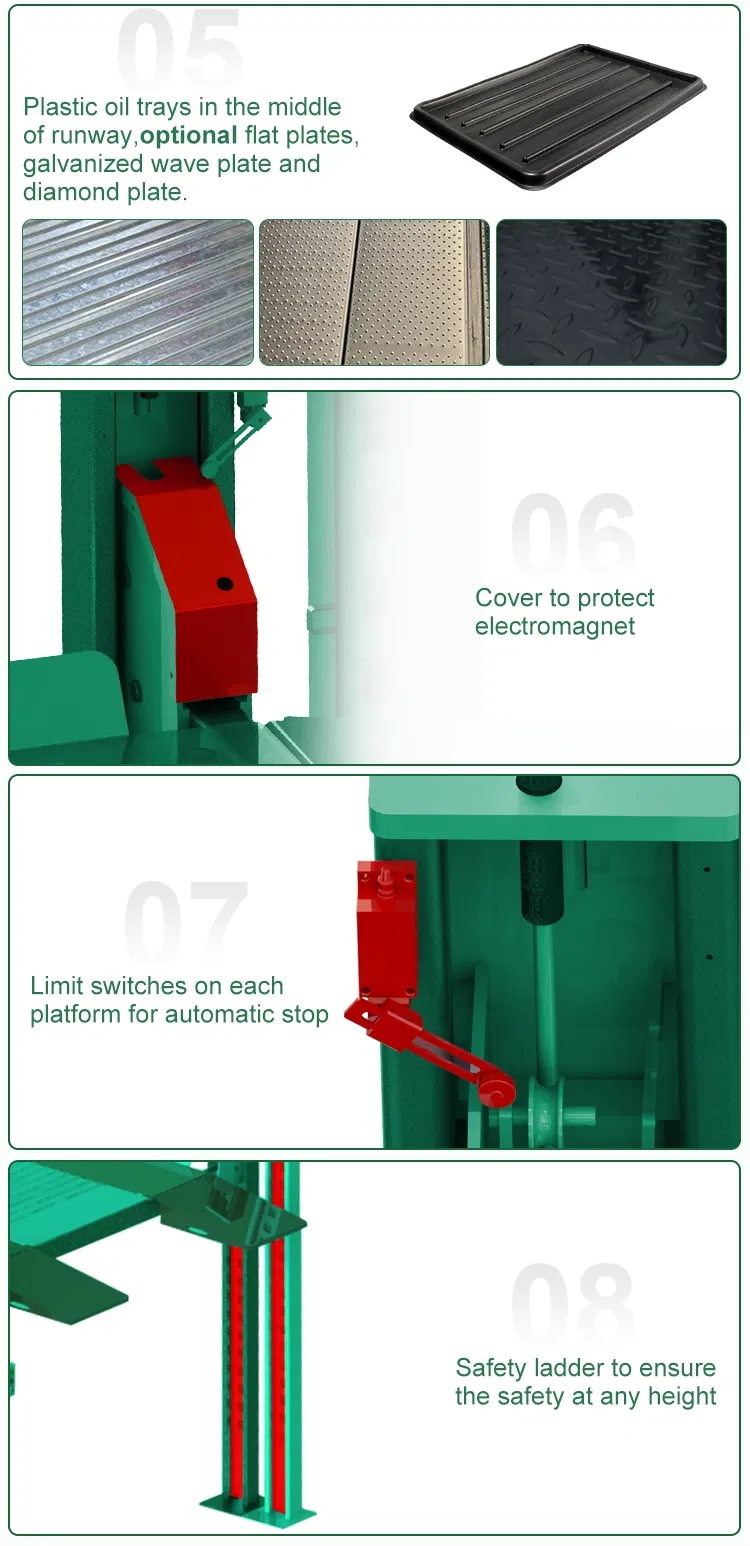

Middle in the Runway 4 ea plastic oil trays in the middle of runway
Type of Ramp Foldable ramps
Specifications Diagram 1
Specifications Diagram 2
Structure Dimension
Parking Setup Side view
Electric Control Box
Platform Connection Detail
Foldable Ramps View
Runway & Oil Trays
Hydraulic Power Unit
FAQ
Q: Are you a factory?
A: We have an invested factory with an area of 4500 square meters, specialized in the production of various car lifts and car parking lifts.
Q: Could you offer customized products?
A: Yes, of course. We have professional engineers to design according to your requests.
Q: How do you control your production quality?
A: We have our independent QC engineers who are doing inspection during all production phases and full test & inspection for finished products before packaging and shipping.
Q: What kind of support can I get if I am an agent?
A: Competitive price, training at our factory and site inspection at your project location.
Q: May I know the Lead time?
A: Commonly the lead time of our machine is 2-3 weeks.
Q: What is your payment terms?
A: We accept TT, LC etc.
Q: How long is the warranty?
A: Our products enjoy a long warranty which is 2 years against manufacturing defects as per limited warranty.
