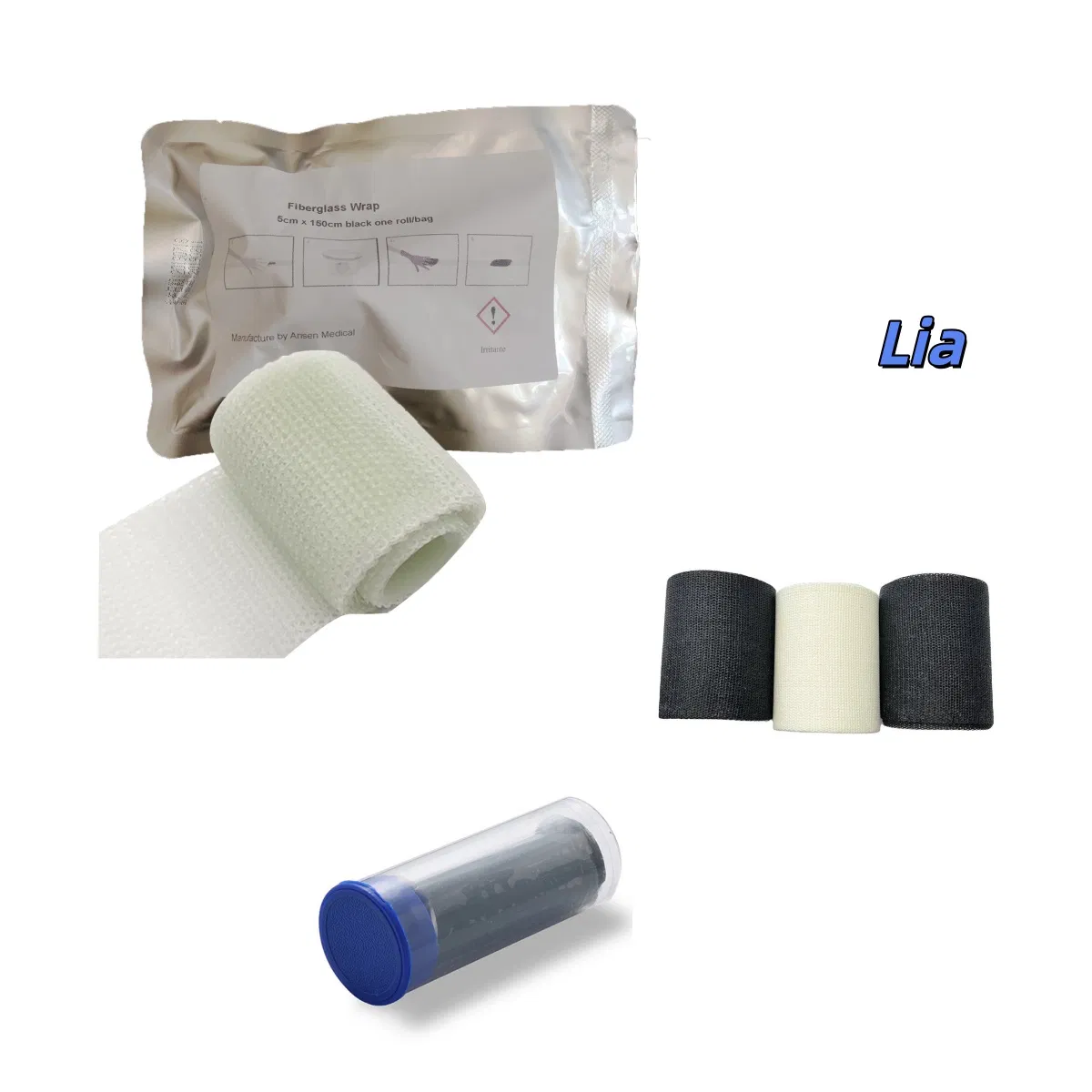

Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
1 / 5
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty

Industrial Pipe Use Emergency Repair Kit with Epoxy Putty

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Heat Resistance High Temperature
Waterproof Waterproof
Application Paper, Plastic, Metal, Rubber
Adhesive Polyurethane
Base Material Fiber
Type Double Sided Tape
Size 2/3/4/5/6 Inch
MOQ No MOQ( No Inventory Pressure)
Pressure Resistance up to 8 MPa( with Putty)
Curing Time Cures in 10-30 Minutes
Product Application Pipe Leak Repair/Reinforcement/ Anti-Corrosion
Material Type Water Hardening Pipe Repair Bandage
Sealing Product Need Epoxy Putty for Leaks
Keyword Water Activated Resin Impregnated Tapes
Packing Individual Bag or Pipe Repair Bandage Kit
Feature Water Activated Resin Impregnated Tapes
OEM Support
Package Plain Bag or Plain Bag with Label
Transport Package Bag/Carton
Origin China
HS Code 7019909990
Production Capacity 10000
Product Description
1. Product Overview
Pipe Repair Bandage is easy to use. Dipping the Bandage into water activates the resin. The Bandage is then wrapped around the pipework requiring strengthening or protection with further water used to smooth it down as the application continues. The Pipe Bandage has a work time of 2-5 minutes. A functional cure is achieved in 30 minutes and a full cure with maximum properties in 24 hours.
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
2. Specification
Product Name Model No. Size Packing
Pipe Repair Bandage PR002 50mm x 3.6m (2" x 12') 10bags × 10boxes/ctn
PR003 75mm x 3.6m (3" x 12') 10bags × 10boxes/ctn
PR004 100mm x 3.6m (4" x 12') 10bags × 10boxes/ctn
PR005 125mm x 3.6m (5" x 12') 10bags × 9boxes/ctn
PR006 150mm x 3.6m (6" x 12') 10bags × 9boxes/ctn
Bandage's length can be made as your request.
Max Length: 15 m

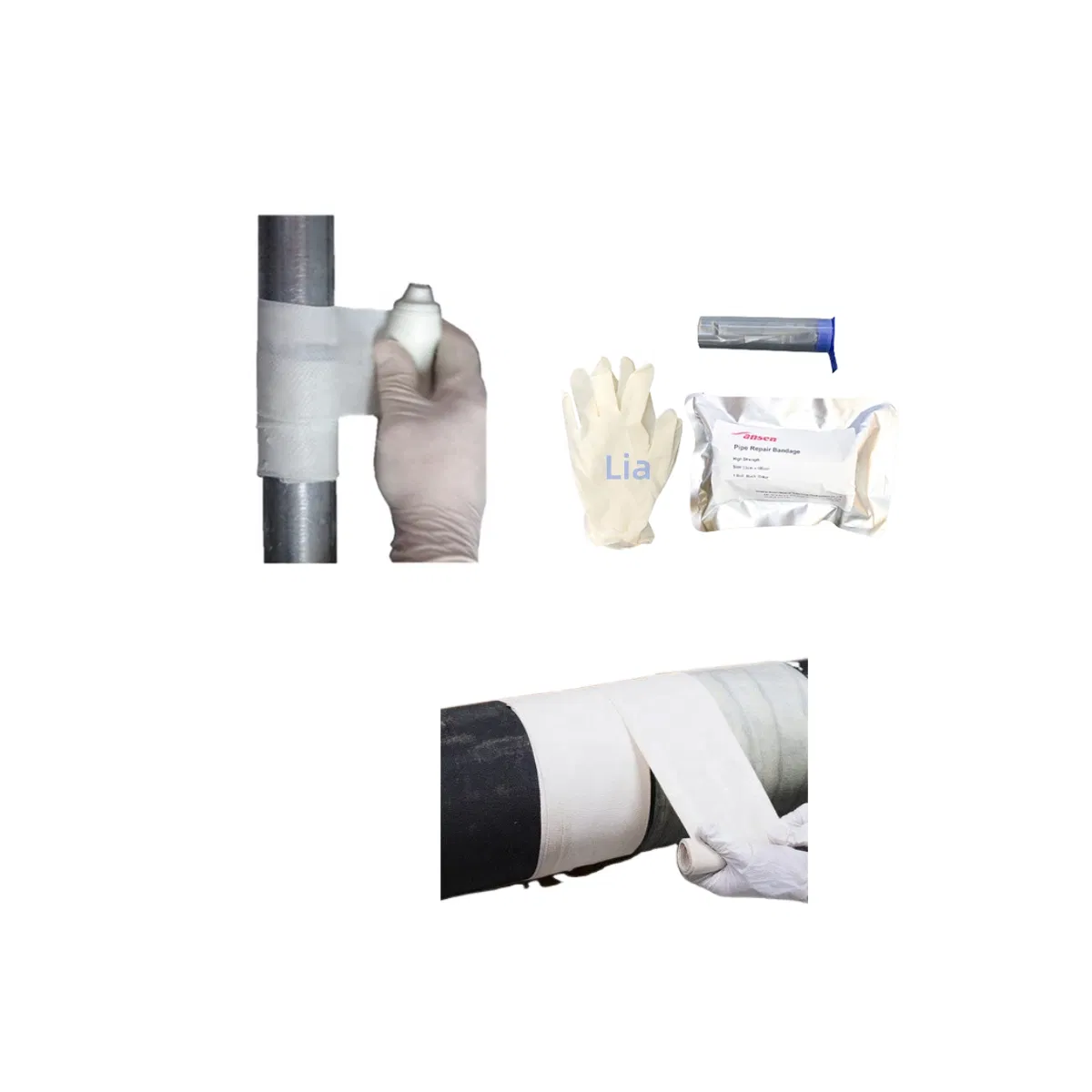

3. Product Operation
  • Once the leaking area is identified, shut down relevant pipes or hoses immediately.
  • Prepare the surface by cleaning and roughening the pipe.
  • Put on enclosed latex gloves.
  • Apply Steel Putty to the leak site and mould.
  • Open foil pouch and immerse bandage in temperate fresh water for 10 seconds, must be used once the package is opened.
  • Apply around the damaged area extending up to 50mm either side of the leak to ensure complete coverage.
  • Wrap quickly as curing begins once it is taken out of the water.
  • Whilst wrapping, pull each layer tightly by using your hand to mould and squeeze the layers together.
4. Our Advantage
Advantages Technical Data
Emergency Water Activated Fiberglass Fix Pipe Repair Wrap

1. Catalyst: Water
2. Resin Makeup: Polyurethane
3. Heat Resistance: 180°C
4. Pressure: 450 PSI
5. Bonds: Copper pipe, PVC, polypipe, metal, fibreglass
6. Set Time: 20 - 30 minutes, sets under water
7. Chemical resistance: Most diluted chemicals and fuels 		1. Useable life: 2-3 minutes, depending on temperature of water and pipework
2. Initial cure time: 5 minutes
3. Full cure time: 30 minutes
4. Shore D hardness: 70
5. Tensile strength: 30-35Mpa
6. Tensile modulus: 7.5Gpa
7. Maximum service temperature: 150°C
8. Pressure resistance: 450psi (Min wrapping 12 layers around cracked/leaking area)

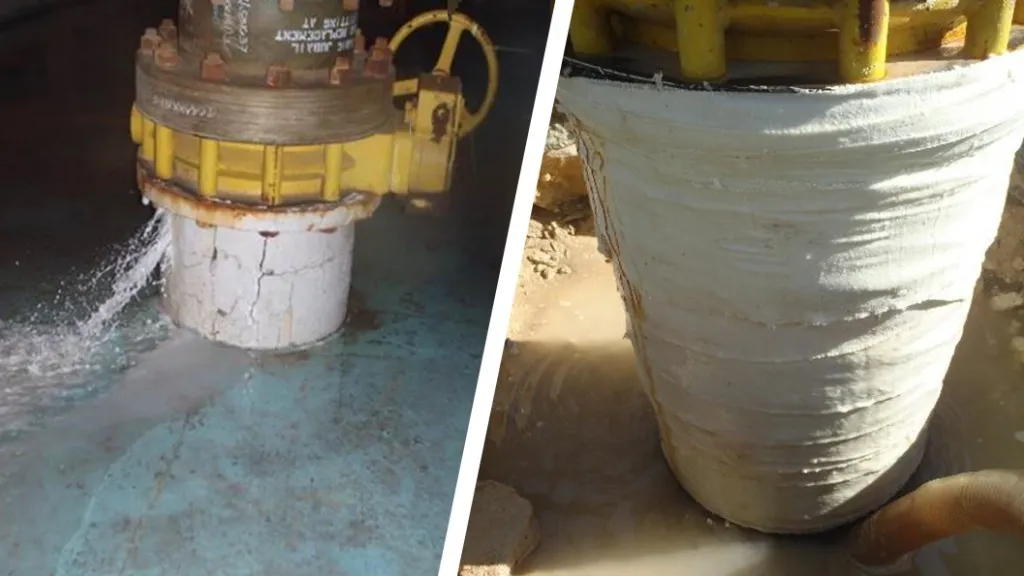

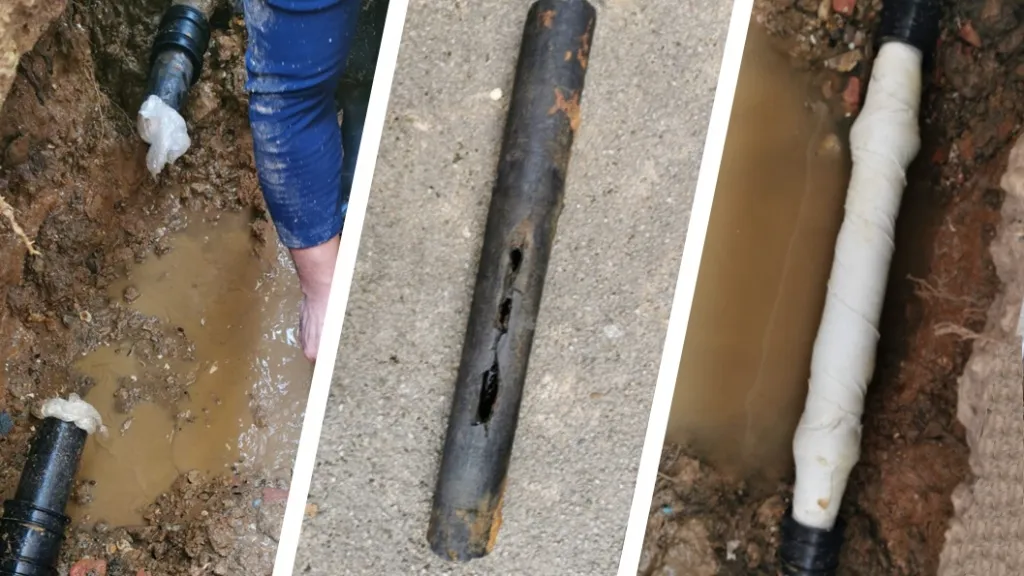

5. Application
  • Domestic live leak repairs, including kitchen and bathroom pipes
  • Industrial live leak repairs, including wastewater treatment works, quarry wash plants, dry risers, petrochemical plants, nuclear power plants, oil rigs, farms, hotels, and breweries
  • Increasing the pressure resistance, chemical resistance, and longevity of pipes
Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty Industrial Pipe Use Emergency Repair Kit with Epoxy Putty
Frequently Asked Questions (FAQ)
How does the pipe repair bandage activate?
The bandage is water-activated. Dipping the fiberglass wrap into temperate fresh water for about 10 seconds activates the polyurethane resin, allowing it to start curing.
What materials can this pipe repair bandage bond to?
It successfully bonds to a wide variety of pipe materials including copper, PVC, polypipe, metal, and fiberglass.
How fast does the bandage cure?
It features a working time of 2-5 minutes once activated. An initial cure is achieved in 5 minutes, a functional cure in 30 minutes, and a full cure with maximum strength properties is completed within 24 hours.
What temperature limit and pressure can the bandage withstand?
The bandage can withstand service temperatures up to 150°C (with a peak heat resistance up to 180°C). It handles pressure up to 450 PSI (or up to 8 MPa when applied with steel putty) with a recommended minimum wrap of 12 layers.
Can this wrap be used for underwater applications?
Yes. Because the polyurethane resin is water-activated, it is capable of setting and curing completely under water, making it ideal for wet environments and live leak applications.
Is there a requirement for preparing the pipe surface?
Yes, for optimal bonding, the pipe surface should be thoroughly cleaned and roughened before wrapping. Applying steel putty directly onto the leak site beforehand helps ensure a secure seal.
