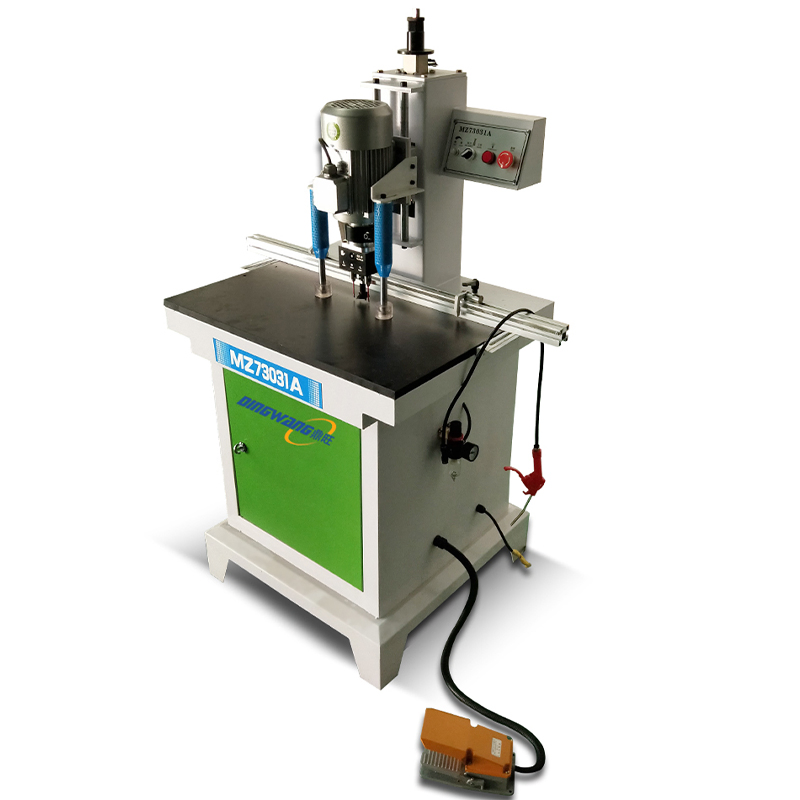

| Model NO. | MZ73031A |
| Condition | New |
| Certification | CE |
| Automatic Grade | Semi-Automatic |
| CNC or Not | not CNC |
| Voltage | 380V |
| Working Air Pressure | 0.6-0.8MPa |
| Weight | 70kg |
| Drilling Diameter | ≤35mm |
| Drilling Depth | ≤50mm |
| Transport Package | Stretch Film or Wooden Packaging |
| Specification | 1000*650*1440MM |
| Origin | China |
| Package Size | 100.00cm * 65.00cm * 145.00cm |
| Package Gross Weight | 70.000kg |
Performance and features:
| Technical Specifications Table | |||
|---|---|---|---|
| Dimensions | 1000*650*1440MM | Weight | 70kg |
| Power | 1.5 kW | Voltage | 380V/50Hz(standard) / 220V50Hz |
| Spindle speed | 2840 r/min | Air Pressure | 0.6-0.8Mpa |
| Number of drill shafts | 3 × 1 pcs | Max. machining workpiece length | 850mm |
| Max. drilling hole diameter | Single hole, 35 mm | Max. drilling depth | 50mm |

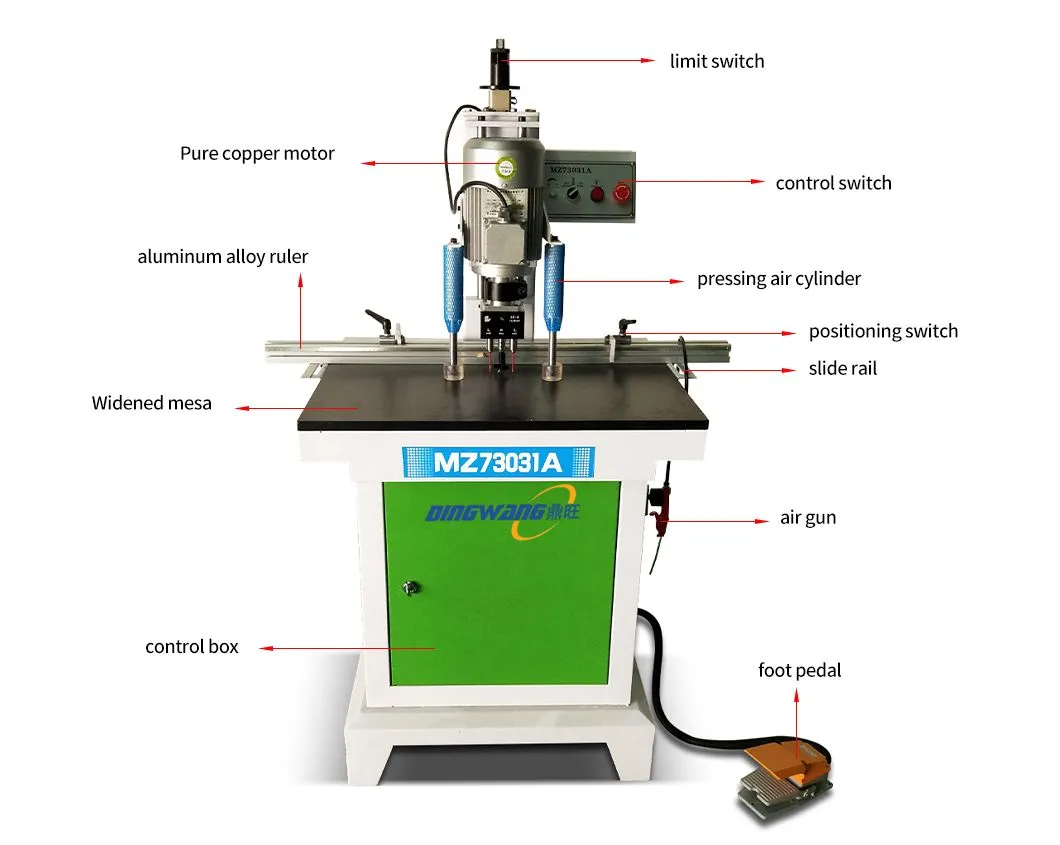

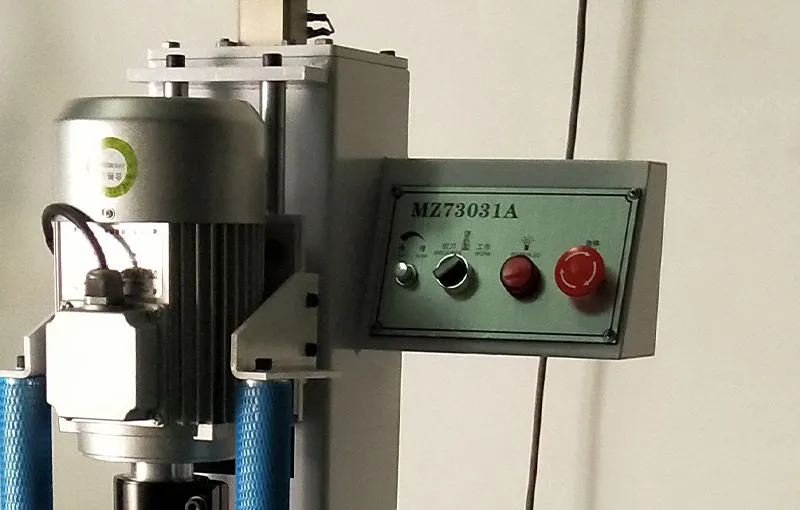

The control panel is set at a high position, making operations simple and quick without the need to squat.

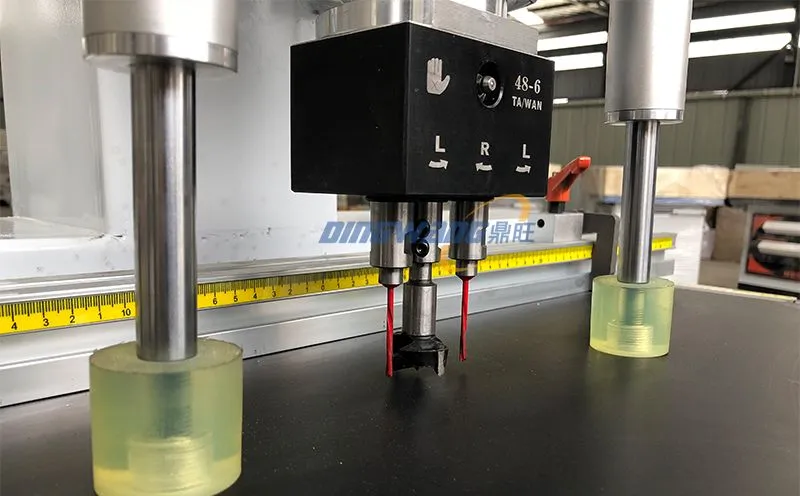

Hinge drill sets of multiple specifications are available, featuring low noise and long durability.

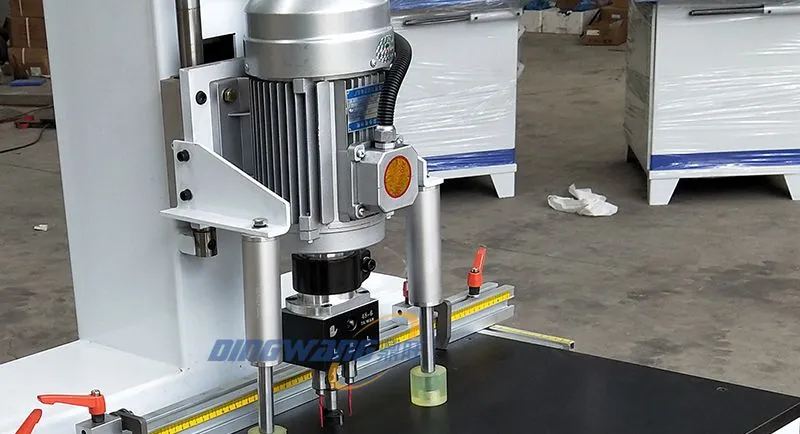

Pure copper motor core, smooth operation, easy to use.

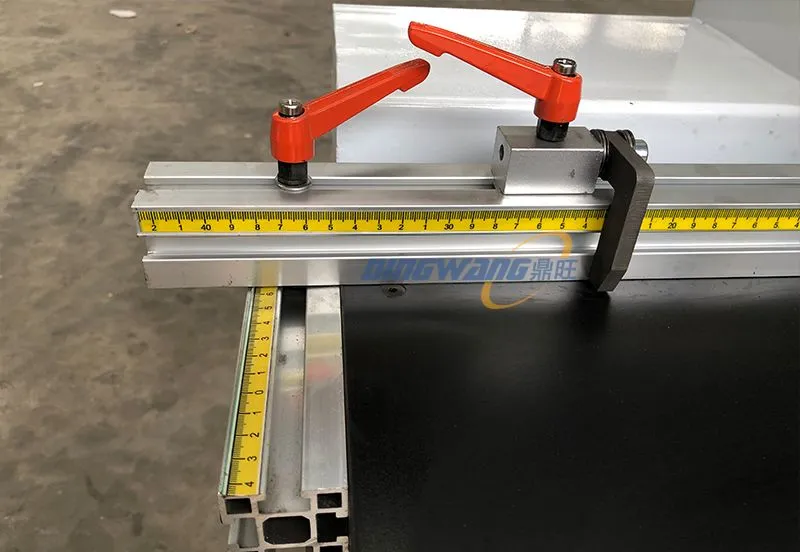

Precise scale ruler, adjustable according to work needs.

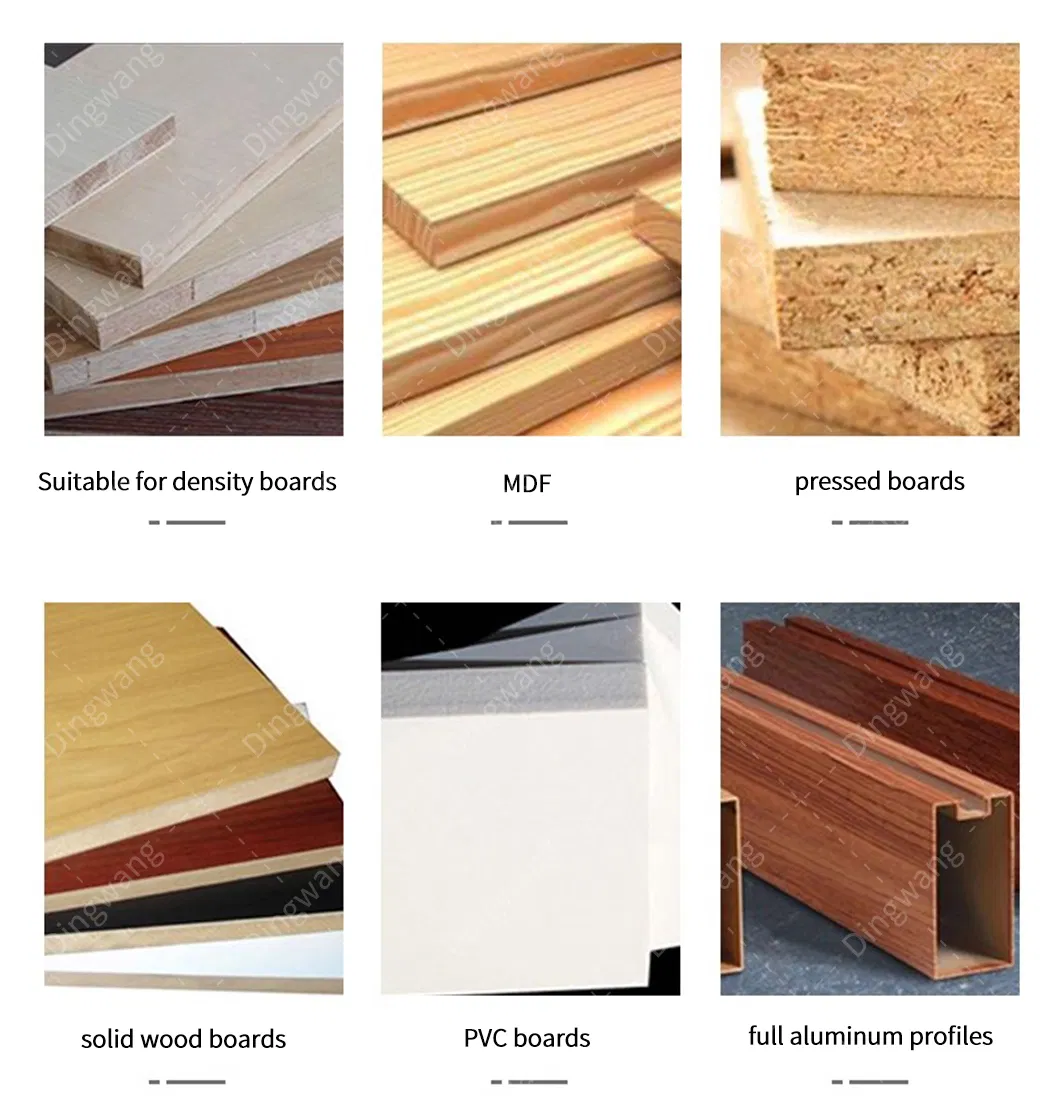

Suitable for density boards, medium density fiberboards (MDF), pressed boards, solid wood boards, PVC boards, full aluminum profiles, etc.
Focusing on the automation and numerical control of panel furniture machinery and equipment, innovative solutions are continuously developed. With advanced foreign technologies absorbed, reformed, and innovated, control over product details is ensured through professional knowledge and R&D design and manufacturing teams to produce advanced, stable, and high-quality machinery. The main products include fully automatic edge banding machines, semi-automatic edge banding machines, heavy-duty high-speed edge banding machines, PUR edge banding machines, panel saws, computer panel saws, CNC drills, CNC cutting machines, and automated production line equipment. Serving customers nationwide and exporting to more than 20 countries, these products have won wide support and trust.

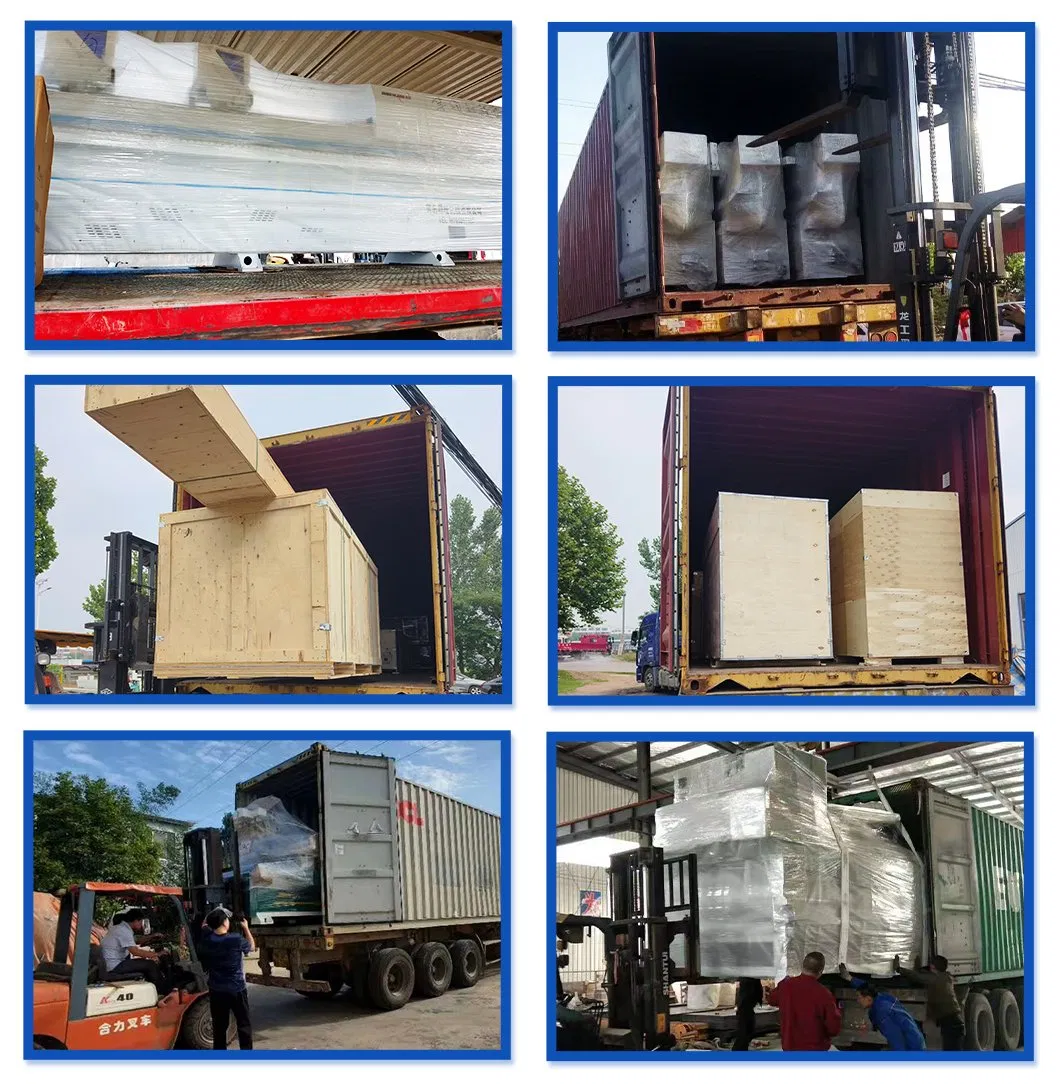

Machine will be properly packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine warranty is two years. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
Manual and video illustration of the machine will be provided 24 hours online. Technical support by email, whatsapp, wechat, imo and skype available on time.
