The impeller, the heart of a centrifugal pump, is pivotal in accelerating liquid to high velocities before releasing it into the casing. This process converts kinetic energy into pressure, a crucial factor in pump performance and efficiency. Various impeller designs are available to suit specific applications, ensuring optimal performance tailored to your needs.
For our submersible sewage pumps, we offer a range of impeller options, including vortex type, semi-open channel type, non-clog closed type, and non-clog impeller with cutter type. Each is engineered to provide exceptional performance in distinct environments, offering flexibility and reliability.

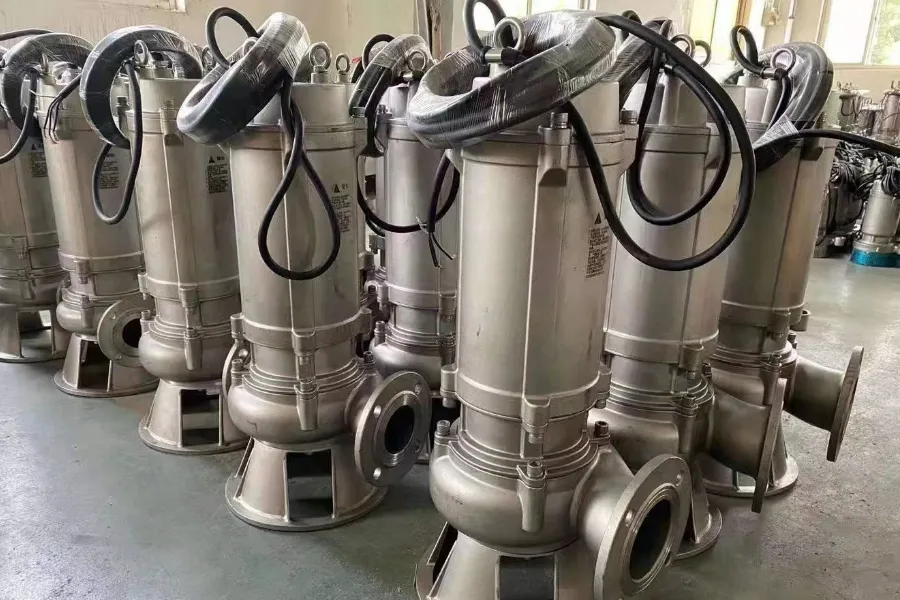

Equipped with a robust copper electric motor and a UL water-proof armored cable, our submersible sewage pumps guarantee a stable power supply even with large flow rates, ensuring uninterrupted operation and peace of mind.

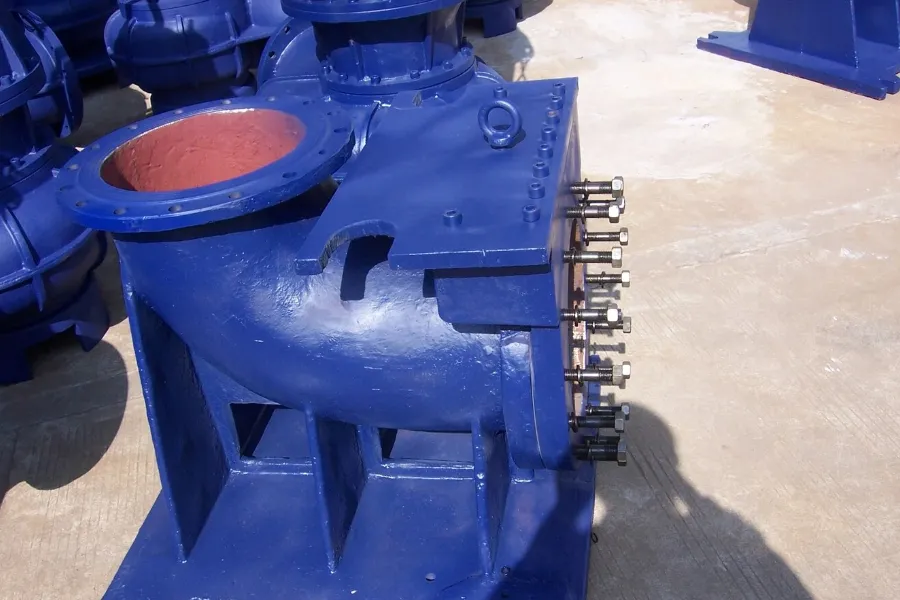

Our auto coupling set, also known as a guide rail system, revolutionizes maintenance by allowing easy pump lifting and lowering within a sump or chamber without disconnecting fittings or pipework. The standard kit includes a base, pump adaptor/guide hook, and upper rail positioning bracket, complete with lifting chains and shackles. Depending on your model choice, the pump is guided with precision by one or two rails, facilitating effortless seating or removal.
Guide rail system come with the following attachment:
• Fixing stand
• Locking arrangement
• Bend pipe
Applications:
Technical Parameters
| Parameter | Range / Specification |
|---|---|
| Flow rate range | 7 ~ 8000m3 / hr |
| Head range | 7 ~ 60m |
| Motor speed | 740 ~ 2900r/min |
| Medium temperature | ≤ 80°C |
| Outlet diameter | 25 ~ 1500mm |
This pump is widely used for industrial wastewater discharge, municipal drainage projects, residential sewage stations, hospital and hotel drainage, defense systems, exploration/mining sites, power plants, and agricultural uses such as ponds dredging and crop irrigation.

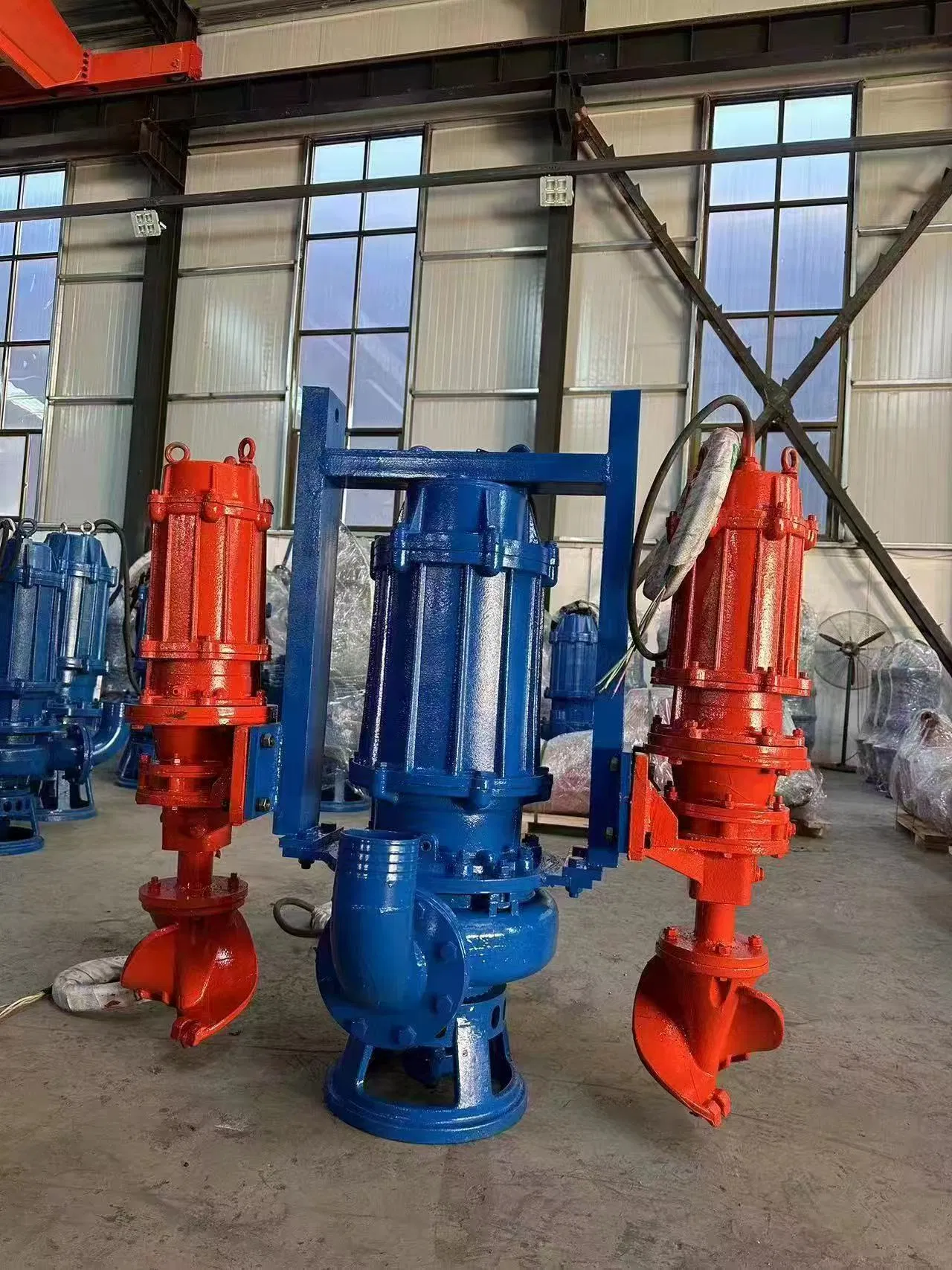

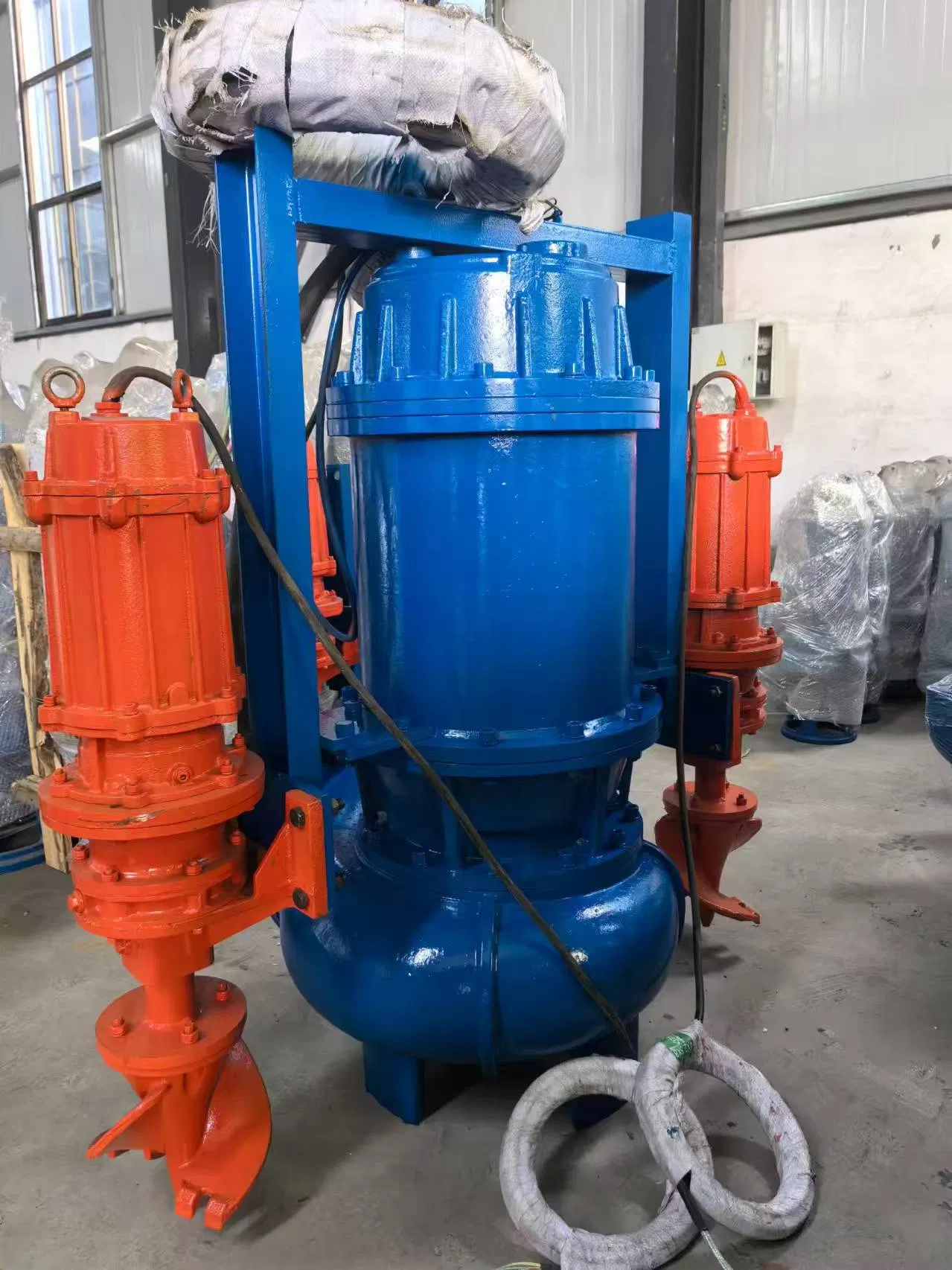

Yes. The pump is designed with a non-blocking structure, uniquely crafted single or dual flow-path impellers, and optional grinder/chopper functions, making it exceptionally efficient at handling liquids containing heavy solids and long fiber waste.

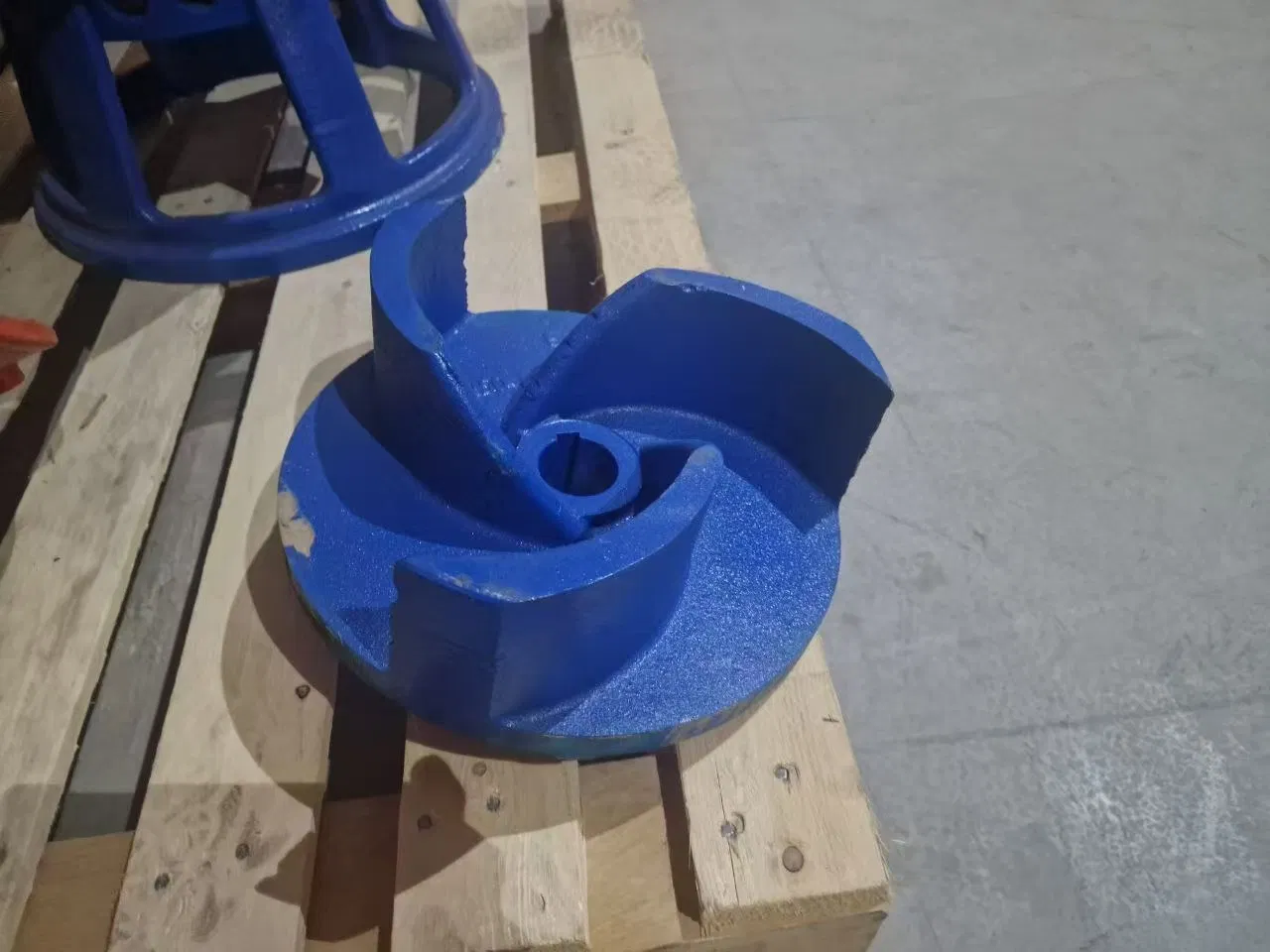

We offer multiple impeller configurations including vortex type, semi-open channel type, non-clog closed type, and non-clog impellers with cutter setups to suit varying operational environments.
The auto coupling system allows for easy lifting and lowering of the pump inside a chamber without disconnecting pipework. It features a base, guide hook, and upper rail positioning bracket that precisely guides the pump into place.
The WQ series features a flow rate range of 7 to 8000 m³/hr, a head range of 7 to 60m, and outlet diameters ranging from 25 to 1500mm.

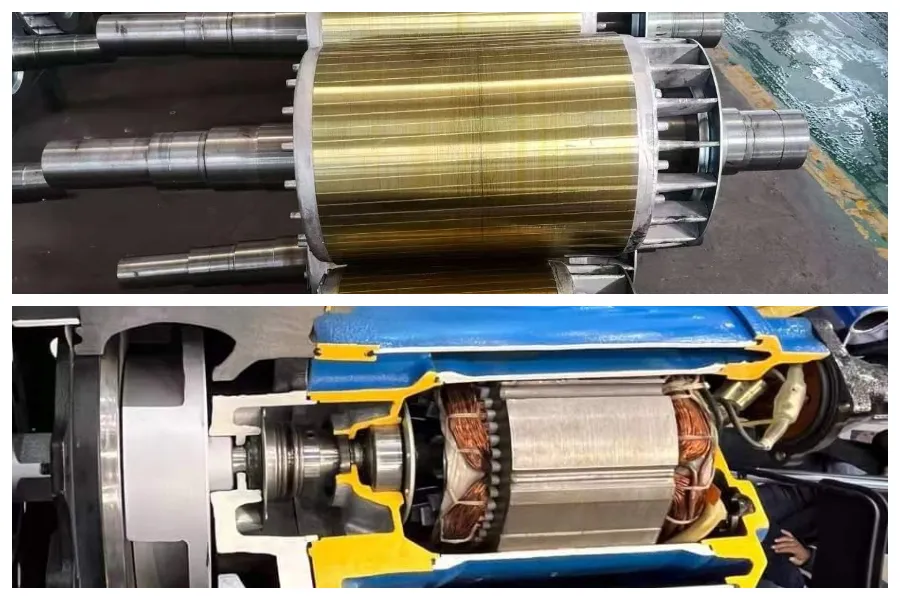

Yes, the pumps come equipped with a robust copper electric motor coupled with a UL-rated anticorrosive, water-proof armored power cable to ensure continuous operation under submerged conditions.
