Pneumatic Break Hammer Tpb40 Concrete Jack Hammer Mining Pneumatic Air Pick

Customization:	Available
After-sales Service:	Guarantee of Repair, Replacement, and Refund
Warranty:	1 Year

Basic Information

Model NO.

TPB40

Certification

CE, ISO 9001:2000

Condition

New

Motor

AC Motor

Drill Hole Diameter

100-150mm

Drill Hole Depth

150-200m

Bit Type

Diamond Bit

Drilling Way

Rotary

Color

Customized

Voltaje

Customized

Air Inlet Size

3/4

Transport Package

by Wood Case

Specification

tpb40, tpb60, tpb90 tcd 20

Origin

China

HS Code

8474100000

Production Capacity

50000pieces /Year

Product Description

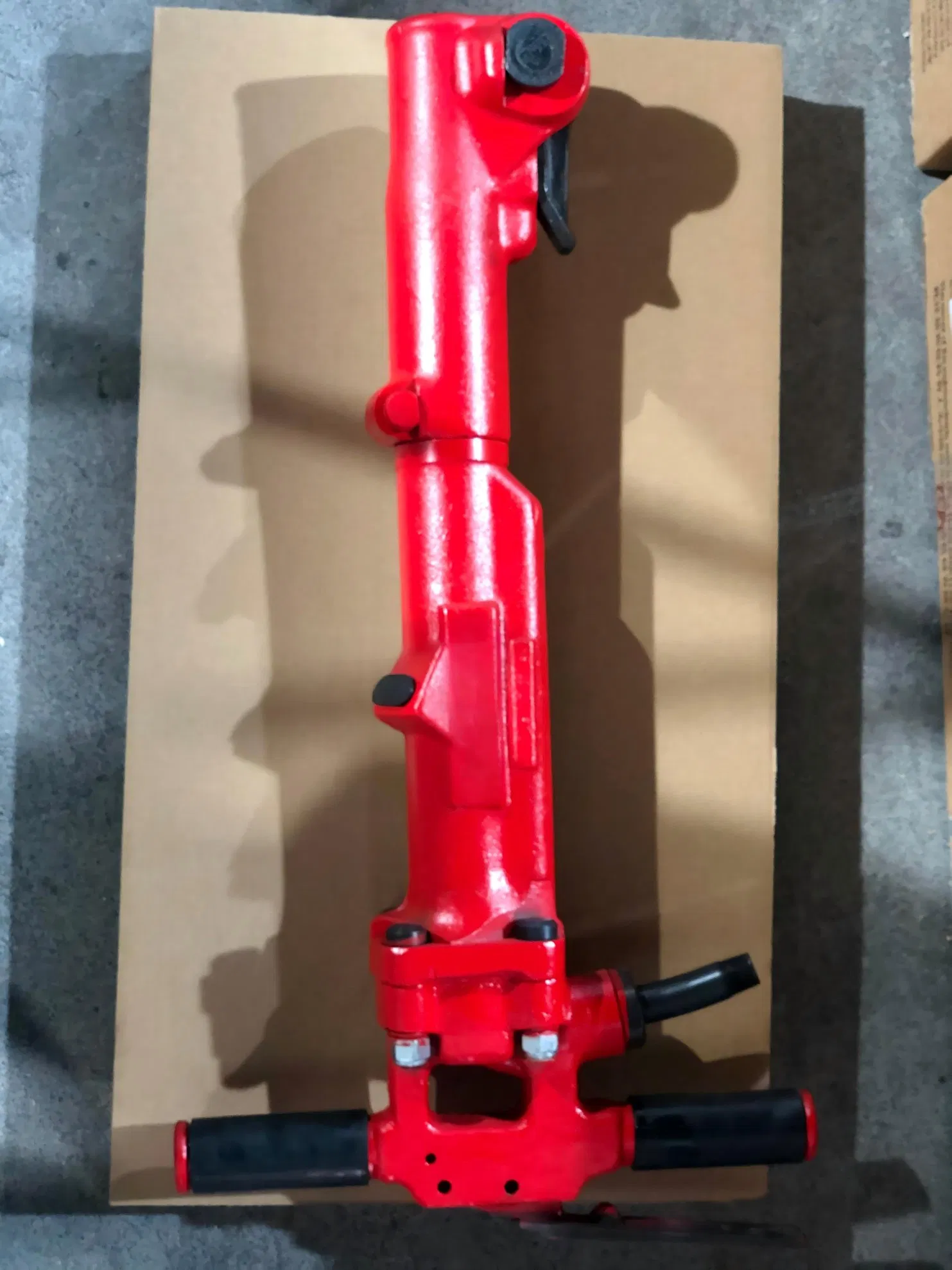

Pneumatic Break Hammer Tpb40 Concrete Jack Hammer Mining Pneumatic Air Pick

TPB40 Pneumatic Breaker is an efficient and reliable pneumatic crushing tool. Powered by compressed air, it distributes compressed air to both ends of the cylinder block through a valve, driving the hammer body to move back and forth to impact the tail of the steel chisel. It is used for crushing hard materials such as concrete, rock and asphalt, and is suitable for various working conditions including mining, road construction, building demolition and municipal engineering.

Specification

Model Parameter	Value Details
Model	TPB-40
Piston diameter (mm)	44
Piston stroke(mm)	146
Percussive Frequency (bpm)	1050
Weight (kg)	18
Length (mm)	660
Consumption (m3/min)	1.6
Air Tube size (mm)	19
Bit head size (mm)	R25x108
Air inlet size (mm)	3/4

Performance Characteristics

Robust and durable structure with alloy steel forged components, ensuring the service life of the tool under high-intensity operations.
Optimized cylinder design provides strong impact energy, high crushing efficiency, and can quickly process hard materials.

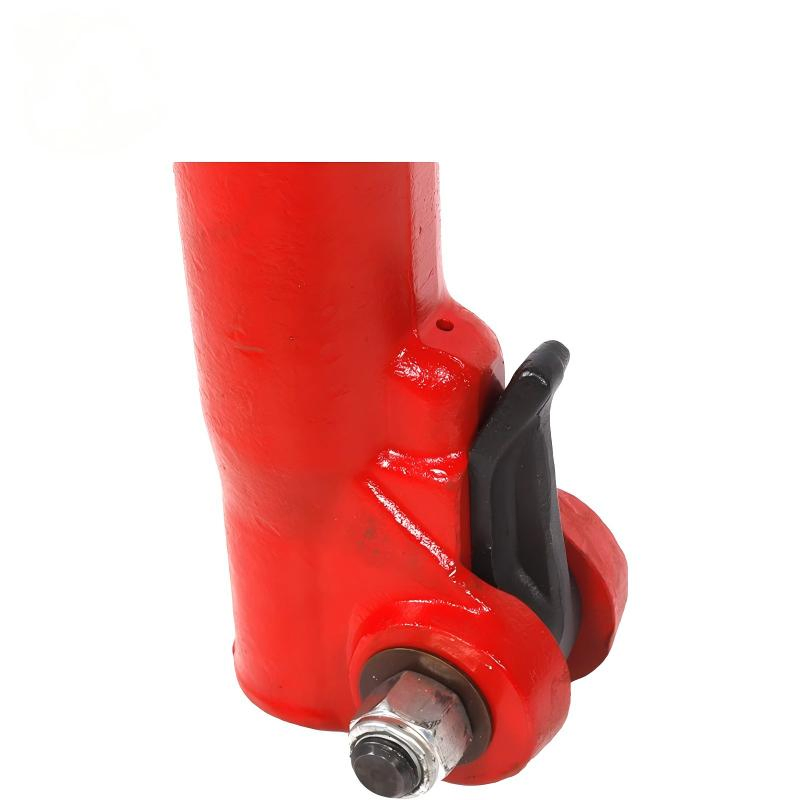

Equipped with a forged buckle-type drill shank fixing device, which allows quick replacement of drill shanks, reduces downtime and improves work efficiency.

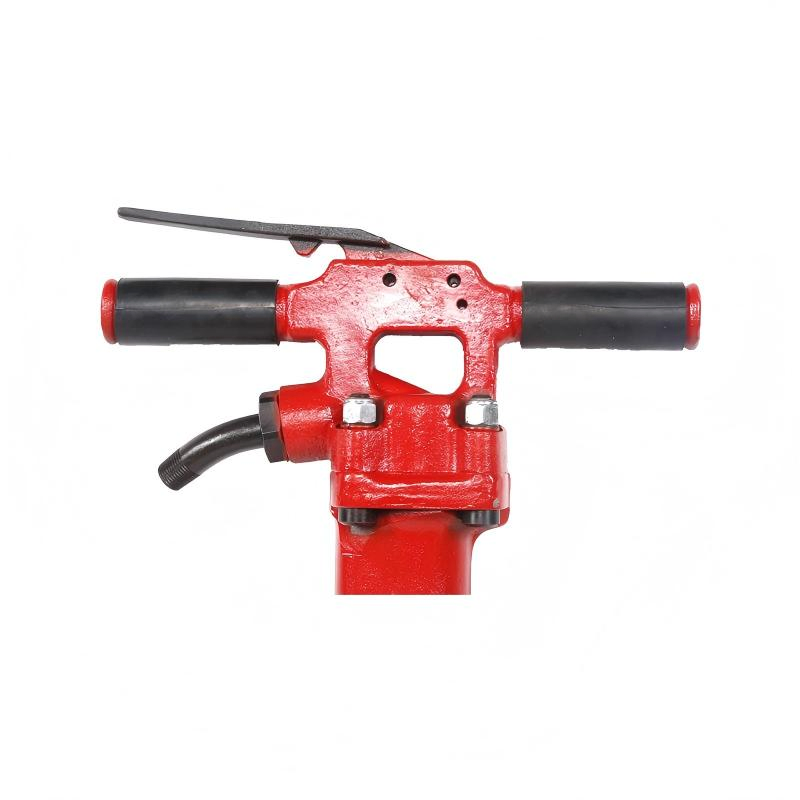

4-bolt handle design reduces operating costs, is easy to operate and convenient for daily maintenance.
Replaceable front bushing effectively protects the front head from wear and extends the overall service life of the tool.

Application Area

Mining: Used for secondary crushing of mine rocks, tunnel excavation and other operations.
Road Engineering: Suitable for construction links such as asphalt pavement crushing and cement pavement repair.
Construction: Can be used for building foundation crushing, wall demolition, concrete component crushing, etc.
Municipal Engineering: Used for crushing rocks and concrete during pipeline laying, and demolition of old facilities, etc.

Packaging & Shipping

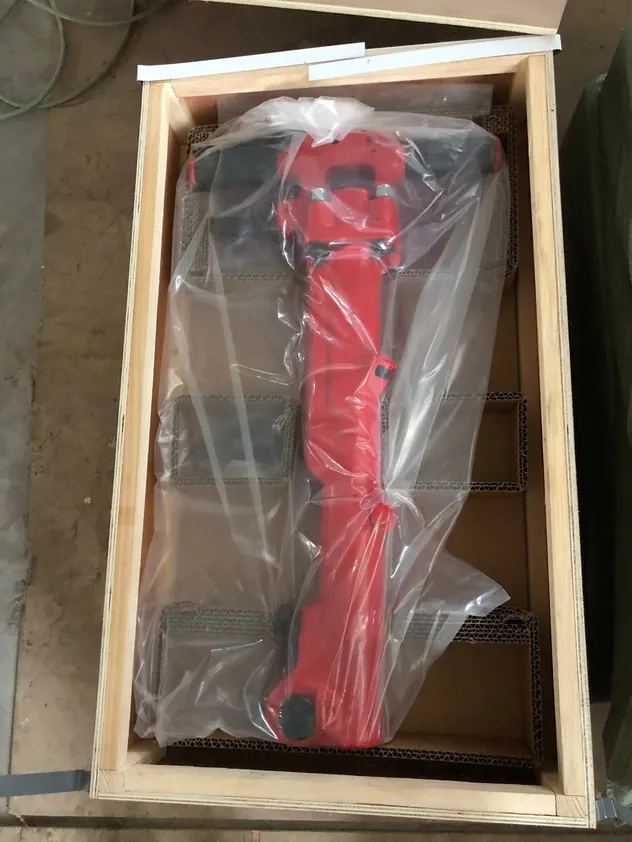

Pneumatic Break Hammer Tpb40 Concrete Jack Hammer Mining Pneumatic Air Pick Packaging 1

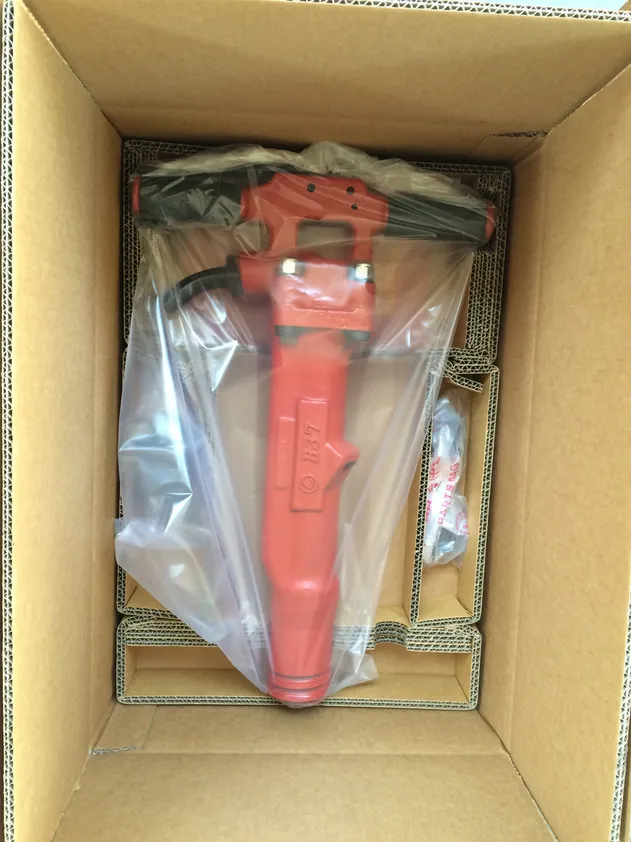

Pneumatic Break Hammer Tpb40 Concrete Jack Hammer Mining Pneumatic Air Pick Packaging 2

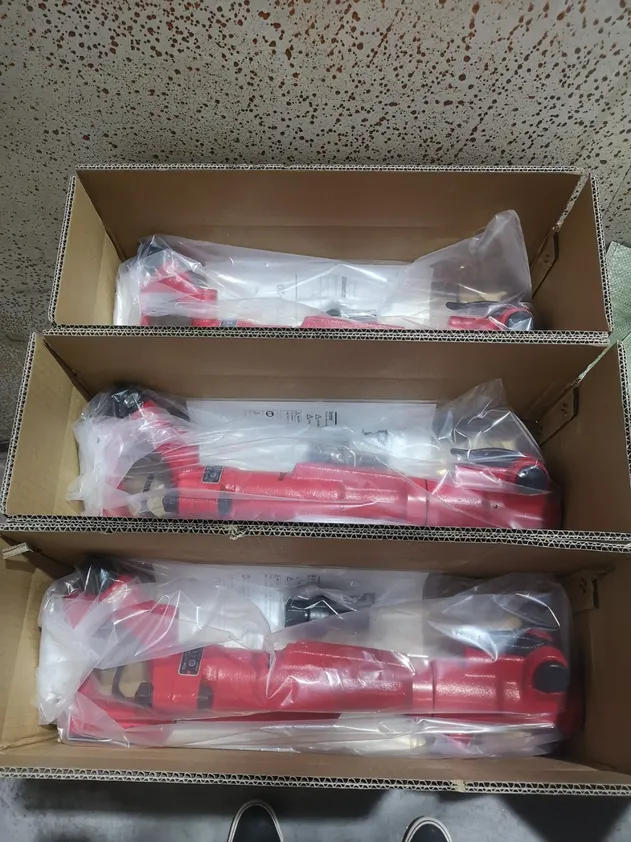

Pneumatic Break Hammer Tpb40 Concrete Jack Hammer Mining Pneumatic Air Pick Packaging 3

Operation and Maintenance Points

Before operation, check that the air pressure is stably at 0.63MPa, and the air pipe is firmly connected without air leakage.
Regularly check the wear of the drill shank. Replace it in time when it is severely worn to avoid affecting the crushing effect and the service life of the tool.
Regularly add special lubricating oil to ensure good lubrication of internal parts and reduce wear.
After operation, clean the dust and debris on the surface of the tool in time and store it in a dry and ventilated place to prevent rusting.

Frequently Asked Questions (FAQ)

Q1: What is the main application of the TPB40 Pneumatic Breaker?

A1: It is highly effective for breaking and crushing hard materials like concrete, rocks, and asphalt. Typical applications include mining, road repair, construction demolition, and municipal utility installations.

Q2: What is the optimal air pressure required for operating this breaker?

A2: The breaker should be operated under a stable air pressure of 0.63 MPa (approximately 91 psi) to ensure high operational efficiency and prolong tool life.

Q3: How often should I lubricate the tool?

A3: Lubrication is critical. You should regularly add specialized pneumatic tool lubricating oil before and during operations to minimize friction and wear on internal cylinder parts.

Q4: Why does the TPB40 use a 4-bolt handle design?

A4: The 4-bolt handle configuration provides structural rigidity, making the tool easier to operate, reducing vibration transfer to the user, and facilitating quick, cost-effective maintenance.

Q5: How can I prevent the pneumatic breaker from rusting?

A5: After each project, make sure to clean off all dust, dirt, and moisture from the surface. Store the tool in a dry, well-ventilated storage space to prevent oxidation and rust.

Q6: Are replacement parts like front bushings easily installable?

A6: Yes. The TPB40 is designed with a replaceable front bushing that protects the main housing from front-end wear, which can be easily swapped out during routing maintenance schedules.
