Professional Wet Grinding Machine Horizontal Sand Mill

Customization:	Available
After-sales Service:	Online Technical Guidance
Warranty:	1 Year

Basic Info

Type

Multi-Use Grinding Machine

Product Type

Paint

Processing Object

Ink, Paint, Pigment

Precision

High Precision

Condition

New

Function

Wet Grinding/ Milling

Materials

Stainless Steel

Grinding Medium

Zirconia Beads

Transport Package

Packed in a Standard Exported Wooden Case.

Specification

GB

Origin

China

HS Code

8479820090

Product Description

Horizontal Sand Mills or Bead Mills are widely used in coatings, dyes, inks, photosensitive materials, medicine and other industries.

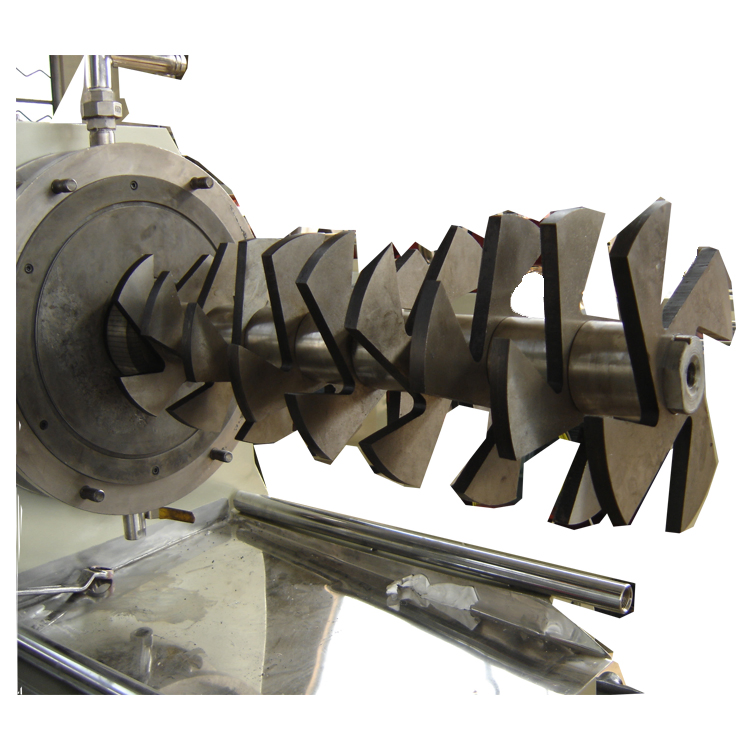

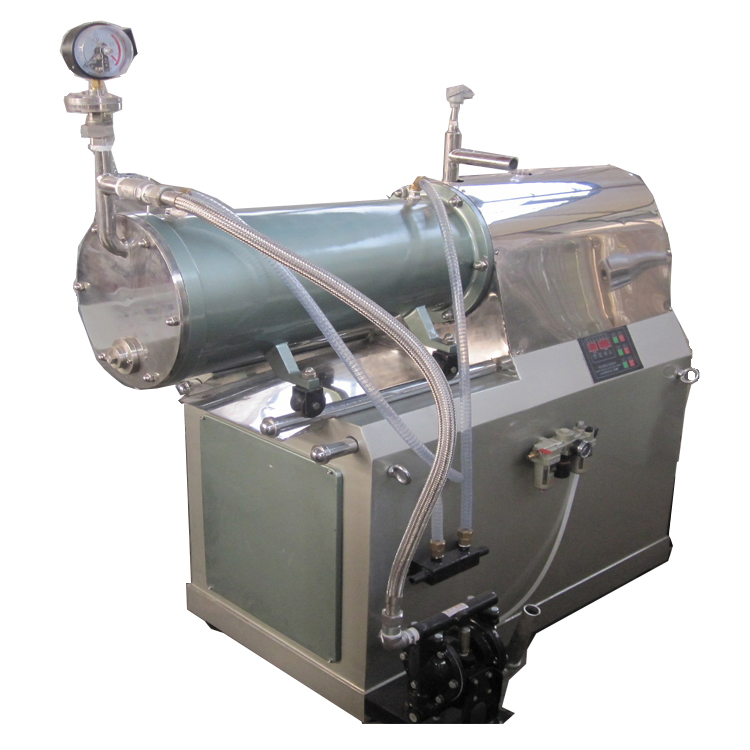

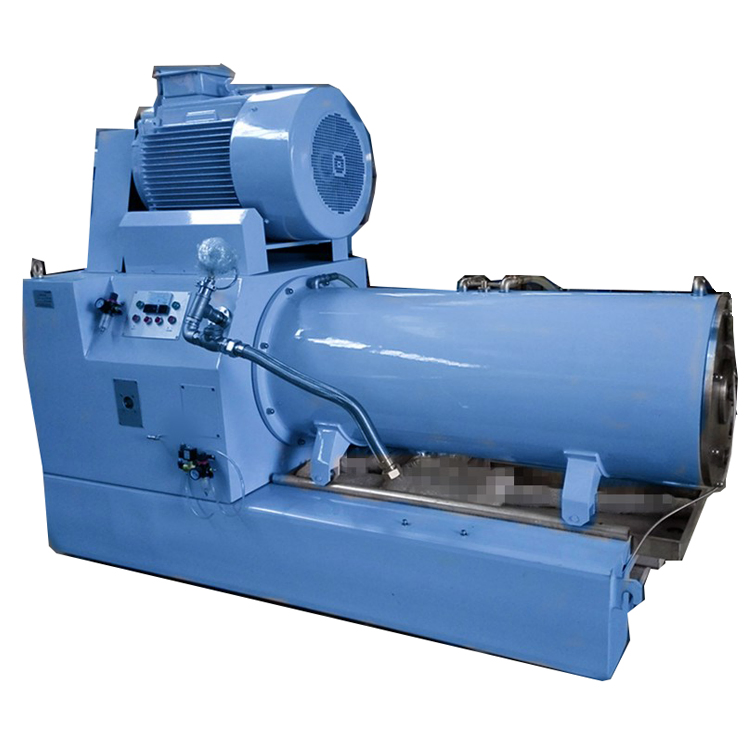

Professional Wet Grinding Machine Horizontal Sand Mill

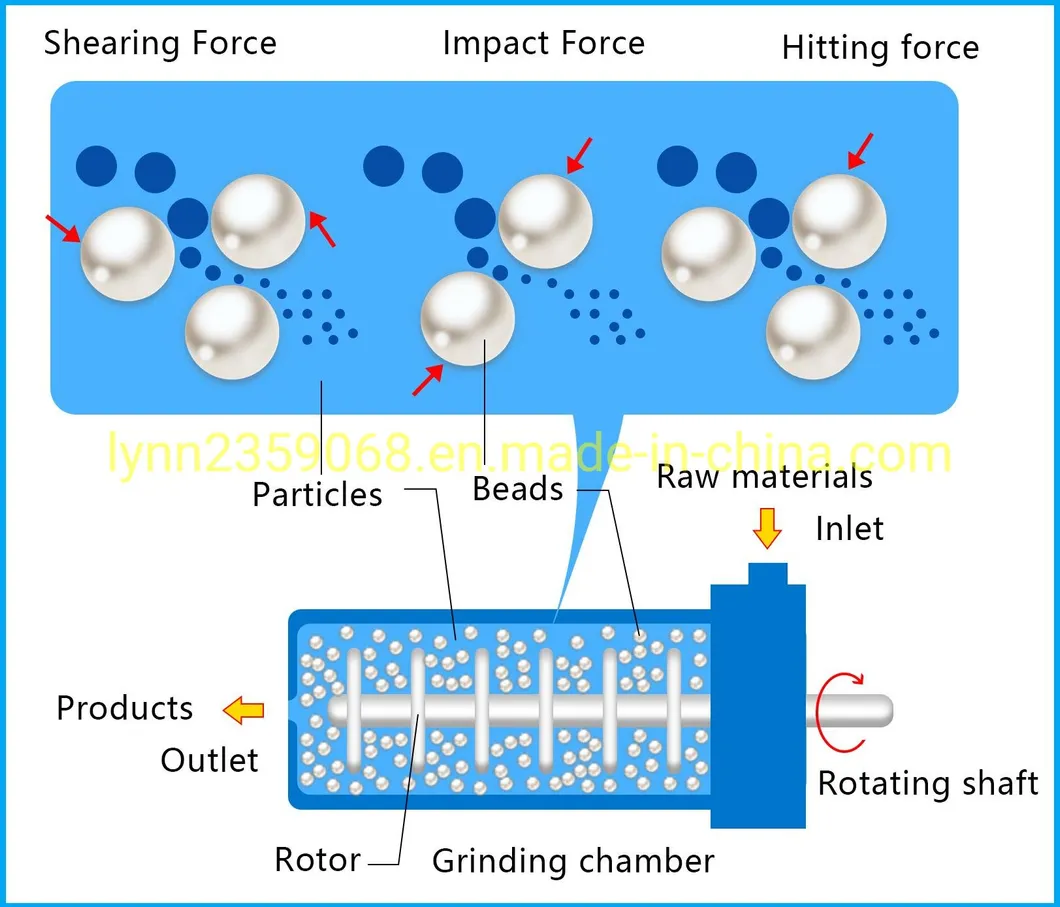

⚙️ Working Principle:

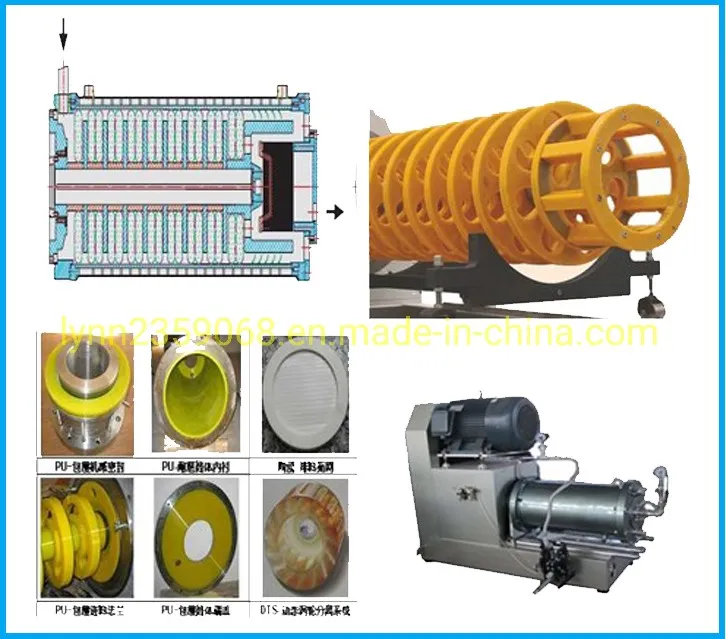

The material (fluid) to be ground is pumped into the static grinding chamber with a jacket through a pneumatic diaphragm pump. A special separation device separates the dispersed matter from the grinding medium and discharges it, so as to achieve the goal of accelerating the process of grinding fine particles and dispersing aggregates. The ground and dispersed material is separated from the grinding medium through a dynamic separator and flows out of the discharge pipe. The barrel part of the horizontal sand mill is equipped with a cooling or heating device. This machine uses zirconia beads as the grinding medium. The zirconia beads are easy to clean, have the highest hardness, are more wear-resistant, and have a good grinding effect. When the feed particle size is less than 450 microns, the discharge particle size can reach less than 1 micron, but the inner barrel of the sand mill is relatively worn. This machine can realize mass continuous production, which greatly improves the quality and greatly reduces the cost.

Characteristics

The main features of the horizontal sand mill are advanced design, closed continuous production, uniform grinding and dispersion fineness, good quality and high production efficiency. Double mechanical seal, double protection, zero leakage. The new dynamic separation structure makes the discharge more smooth. This machine is especially suitable for dispersing and grinding products with high viscosity and fine particle size.

A mechanical shaft seal (imported double end mechanical seal) is installed between the transmission structure and the grinding structure of the horizontal grinding mill, and solvent based liquid is used to circulate and lubricate the mechanical shaft seal to separate the grinding material from the transmission structure. The solvent for circulating and lubricating the mechanical shaft seal is stored in a storage tank, and cooling water is transported to circulate and cool the lubricating solvent.
The grinding operation of the horizontal sand mill is conducted in a fully closed and pressurized grinding cylinder at high speed, so there is no problem of solvent volatilization polluting the air, ensuring workshop hygiene and the physical and mental health of the operators. The production of materials in a closed state saves energy and reduces production costs because there is no solvent volatilization.
The bottom of the grinding cylinder of this equipment is equipped with a sliding track to facilitate the replacement of grinding beads and disassembly during maintenance and repair. As long as the fixing screws are removed, the grinding cylinder can be opened to allow the grinding beads to flow out.
There are two types of pumps for conveying raw materials in horizontal grinding mills: gear pumps and pneumatic double diaphragm pumps. Users can choose between them based on the physical properties and characteristics of the raw materials they want to grind.
The design of the machine is advanced, and the closed wet grinding method makes the grinding speed of the medium faster and more uniform. The product has uniform grinding and dispersion fineness, good quality and high production efficiency.
In addition, there is no need for a special installation foundation for the horizontal sand mill, and the installation position can be changed at any time as needed.

Product Parameters

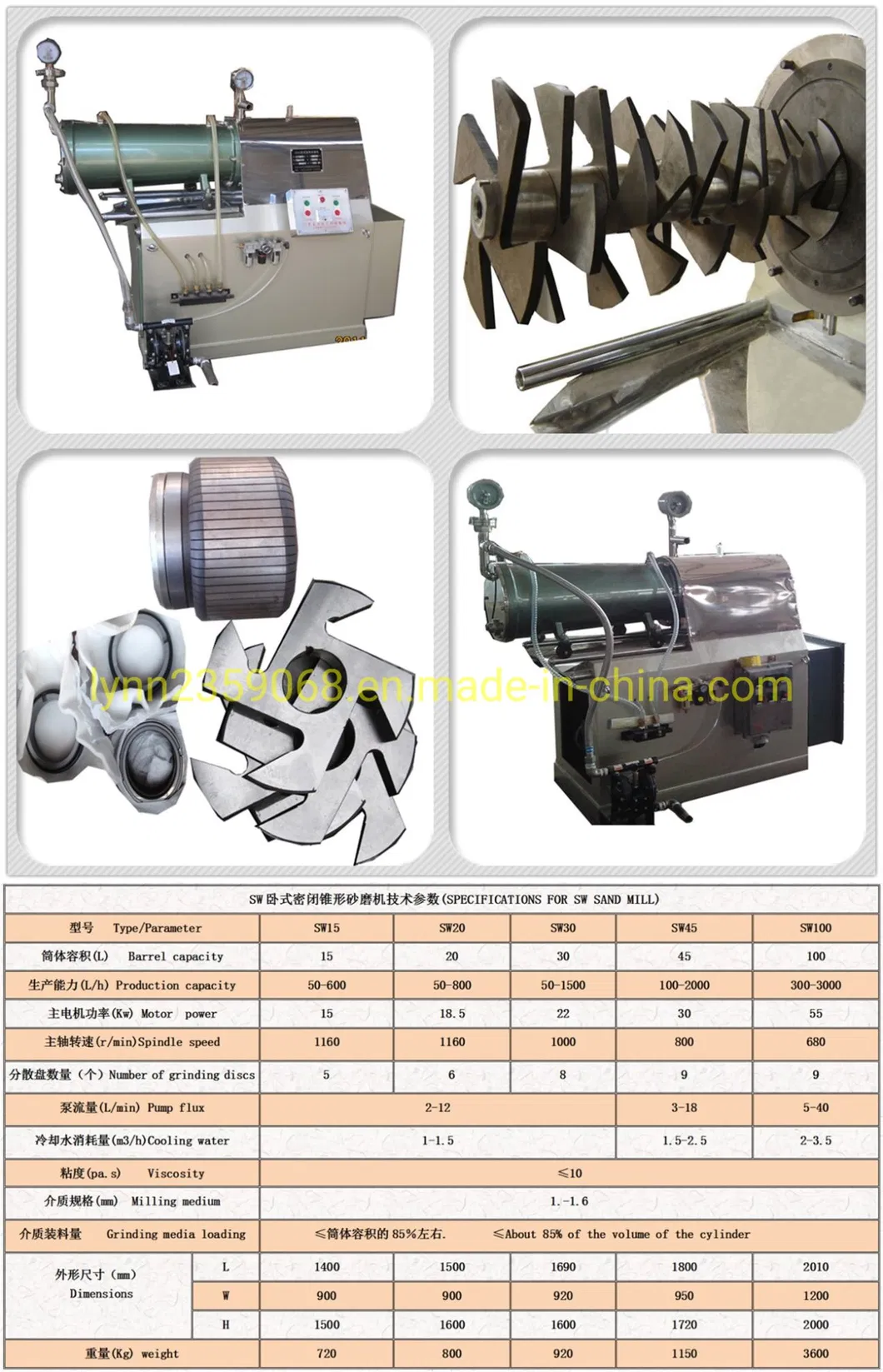

Professional Wet Grinding Machine Horizontal Sand Mill Specifications

⚠️ Notes:

(1) The equipment can be designed according to the user's specific requirements.
(2) For the last update of the technology, we will change the technical data without notice, and the correct parameters are subject to the real product.
(3) If you are unsure which type to choose, our professional sales engineers will recommend one for you.

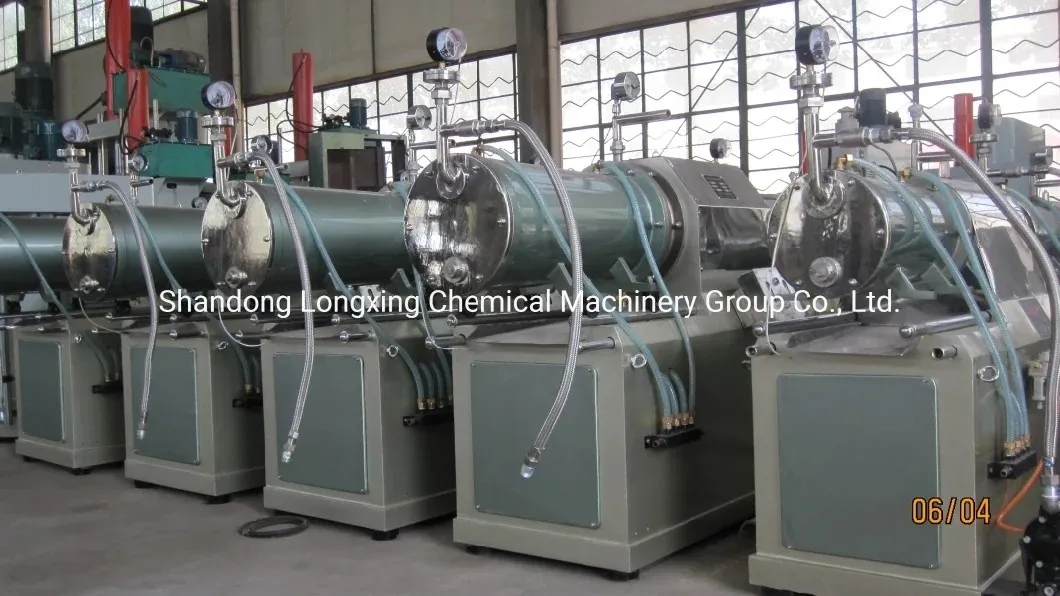

Professional Wet Grinding Machine Horizontal Sand Mill Structure

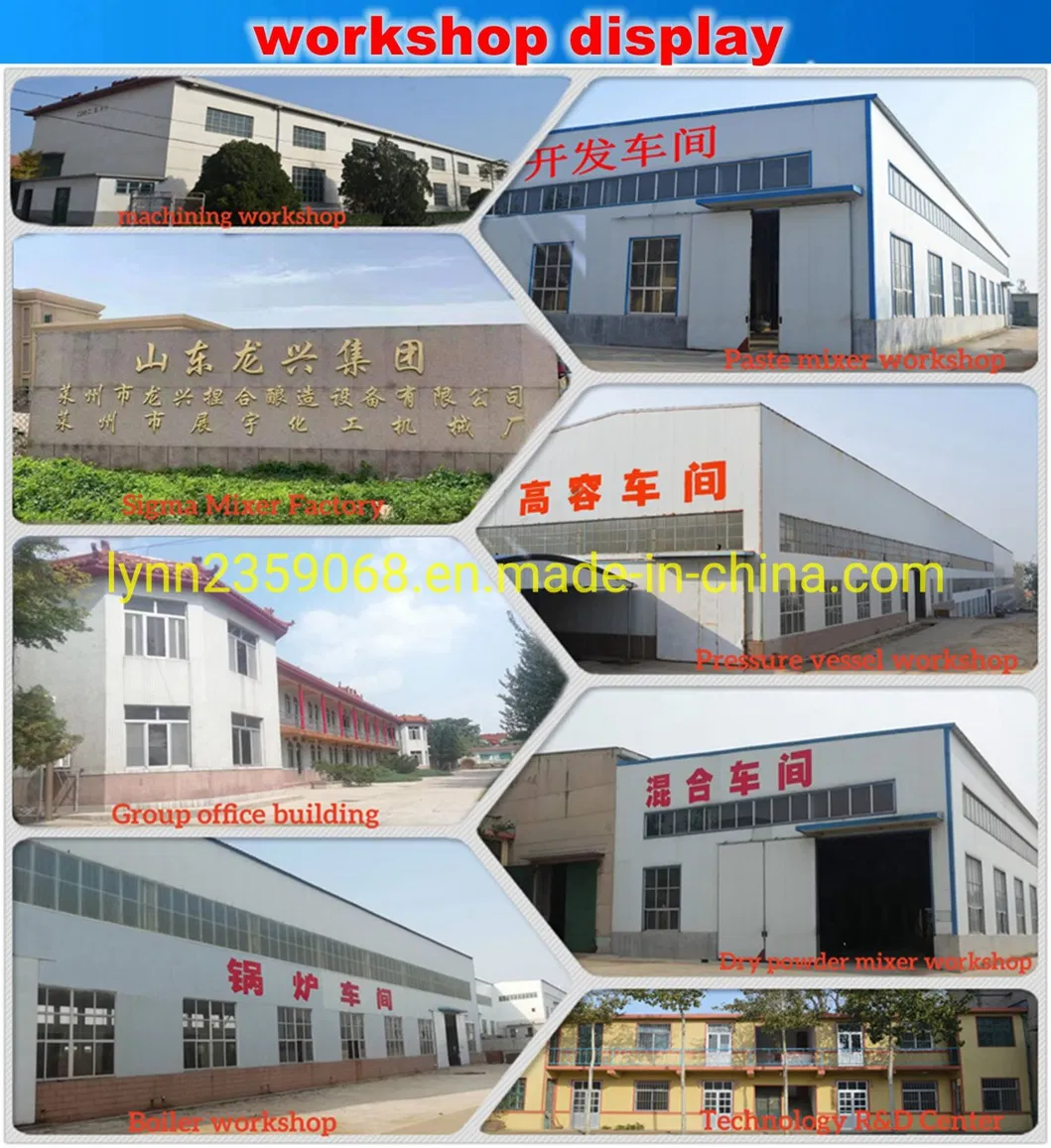

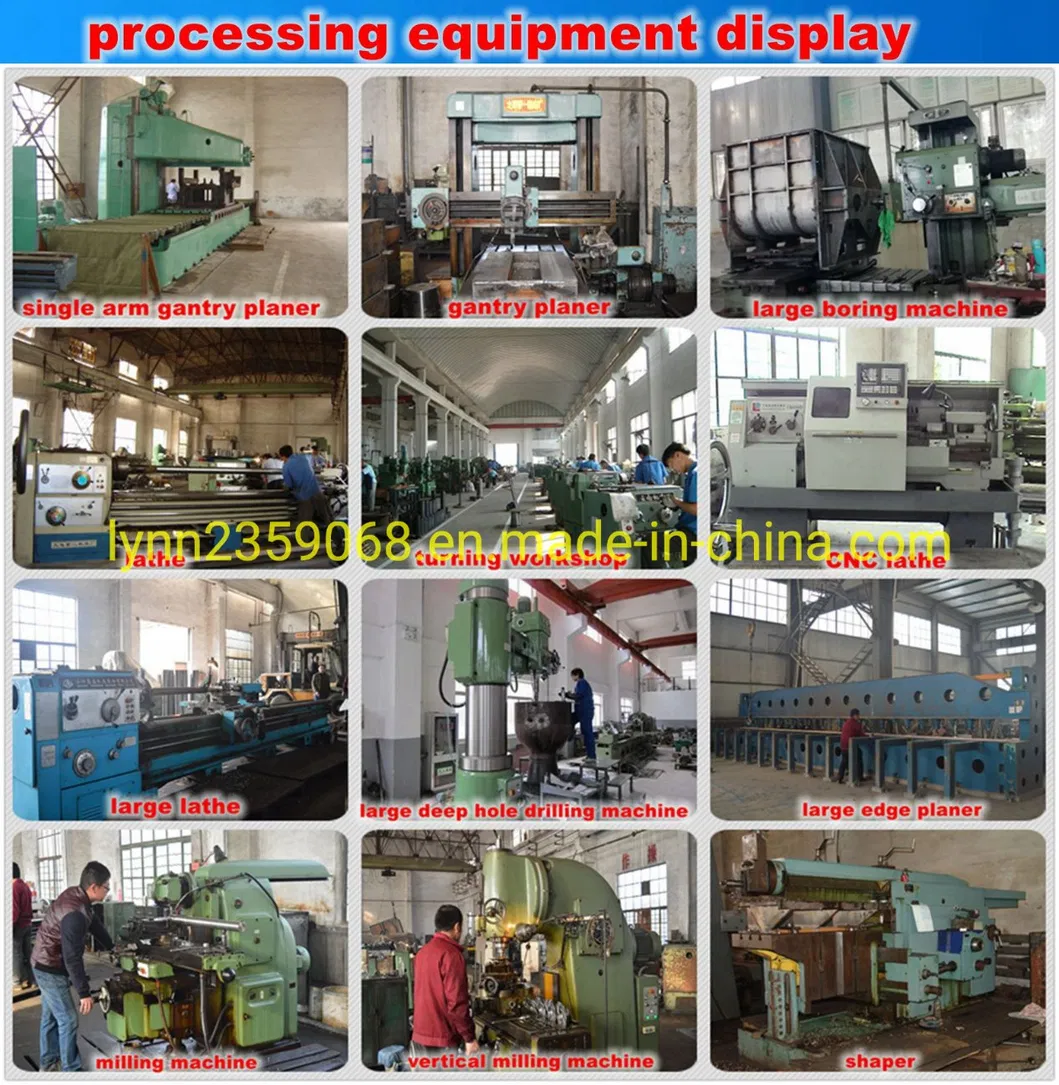

Machining Strength

Product Catalog

Professional Wet Grinding Machine Horizontal Sand Mill Catalog

FAQ

QWhat are your terms of packing?

Generally, we pack our goods in plywood cases. If your goods have one container, the goods can be packed without plywood, just be wrapped with the film to load.

QWhat are your terms of payment?

T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.

QWhat are your terms of delivery?

FOB, CFR, CIF, DDU.

QHow about your delivery time?

Generally, it will take about 30 days after receiving your advance payment for the customized machine. The delivery time depends on the items and your order quantity.

QCan you produce it according to the drawing?

Yes, we can produce according to your technical drawings. If you don't have the drawing, just tell us your need and our engineer will make the drawing for your reference.

QDo you test all your goods before delivery?

Yes, we have 100% test before delivery.
