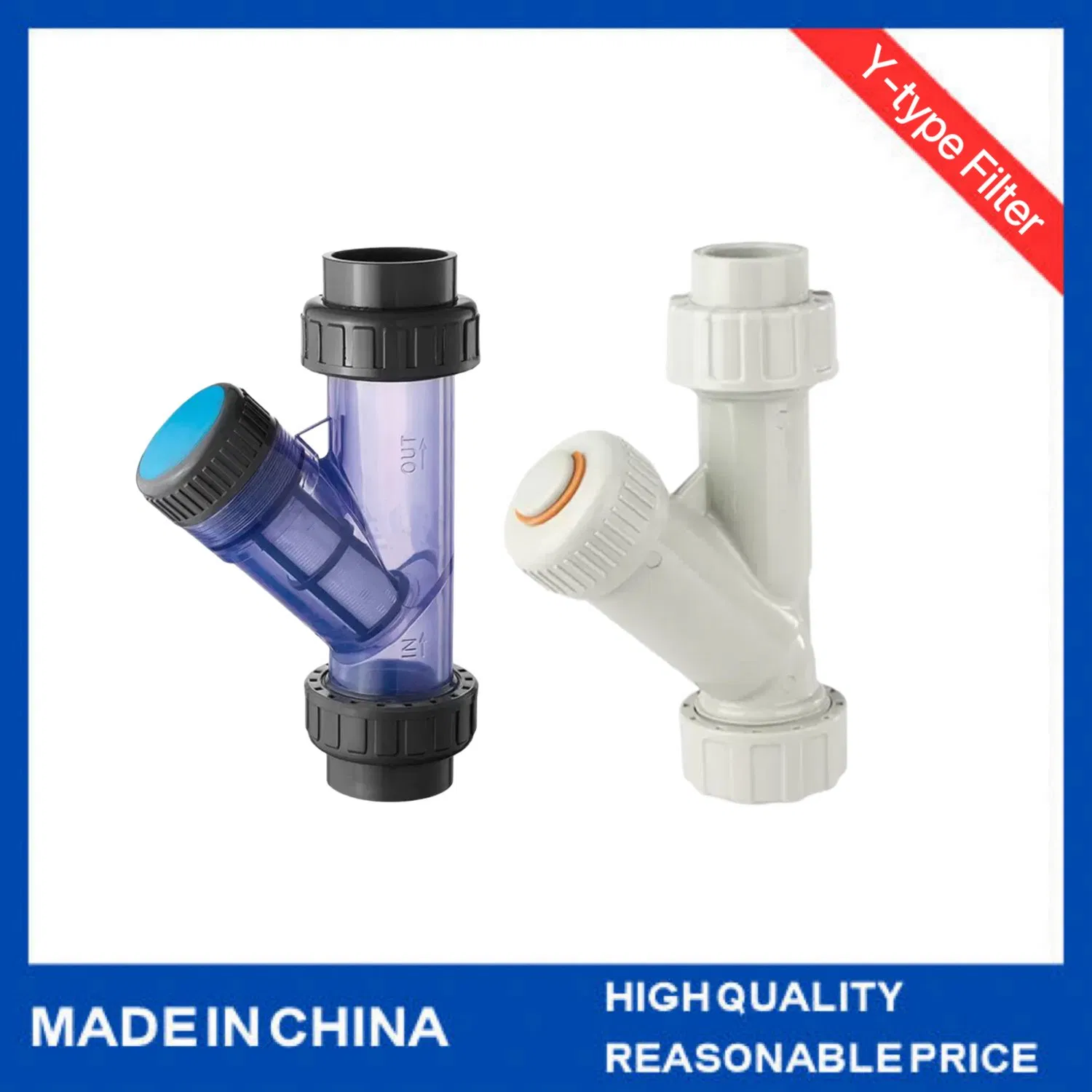

Premium Y-Strainer for Optimal Filtration and Flow Control

1 / 5

Premium Y-Strainer for Optimal Filtration and Flow Control

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Product Description
Detailed Photos
Features
Product Parameters
Other Products
Packaging & Shipping
FAQ

Basic Info.

Model NO. P017

Connection Form Glue

Driving Mode Manual

Nominal Pressure JIS10-20K

Channel Straight Through Type

Structure Flexible Ball Valve

Type Flexible Ball Valve

Function Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve

Temperature Ultralow Temperature

Standard Support

Application Industrial Usage, Water Industrial Usage, Household Usage

Color Dark Grey

Other Standard BS , ASTM, DIN

Port Size 20-125mm

Name EPDM Seal Pph Double Union Ball Valve for Water Tr

Transport Package Carton

Specification Customed

Trademark No

HS Code 8481300000

Production Capacity 100000PCS/Week

Packaging & Delivery

Package Size 47.00cm * 35.00cm * 37.00cm

Package Gross Weight 15.000kg

Product Description

Ball valve, opening and closing parts (spheres) driven by the stem, and the ball valve axis for rotating movement of the valve. It can also be used for fluid regulation and control, in which the V-shaped ball valve with hard seal has a strong shear force between the V-shaped ball core and the metal seat of surfacing cemented carbide, especially suitable for the medium containing fiber, small solid particles and so on. The multi-pass ball valve can not only flexibly control the confluence, shunt, and flow direction of the medium on the pipeline, but also can close any channel and make the other two channels connected. This type of valve should generally be installed horizontally in the pipeline. Ball valve classification: pneumatic ball valve, electric ball valve, manual ball valve.

Detailed Photos

Features

1 The ball type is marked with the installation direction, and the installation mode is selected according to the customer's use condition. The correct direction can prevent the leakage when the pipeline is disassembled.
2 Single-side adjustment ball seal, PTFE cushion seal, corrosion and wear resistance.
3 Maintenance lines do not need to stop, as long as the ball valve is closed, can be unloaded, work.
4 Cushion tightness can be adjusted moderately, without using special tools, can be quickly assembled.
5 There are two pipe fixing screws at the bottom of the ball valve for pipe fixing.

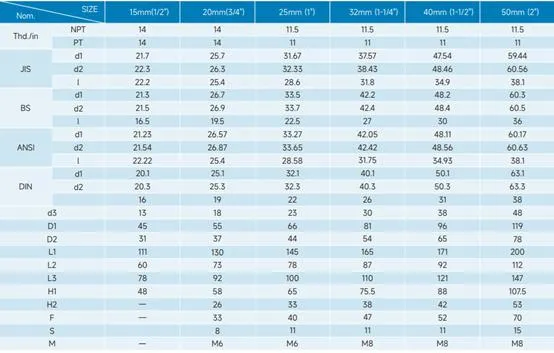

Product Parameters

Application	General
Place of Origin	China
Power	Manual
Port Size	1/2"-4"
Color	Black, white, blue, grey, can be customized
Size	1/2"-4"

Note: If you need order ball valve, pls provide the data above.

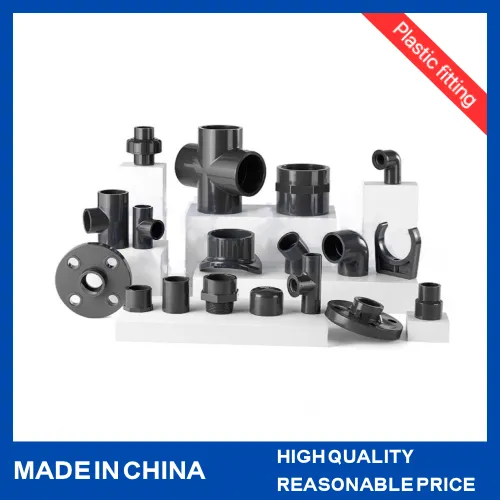

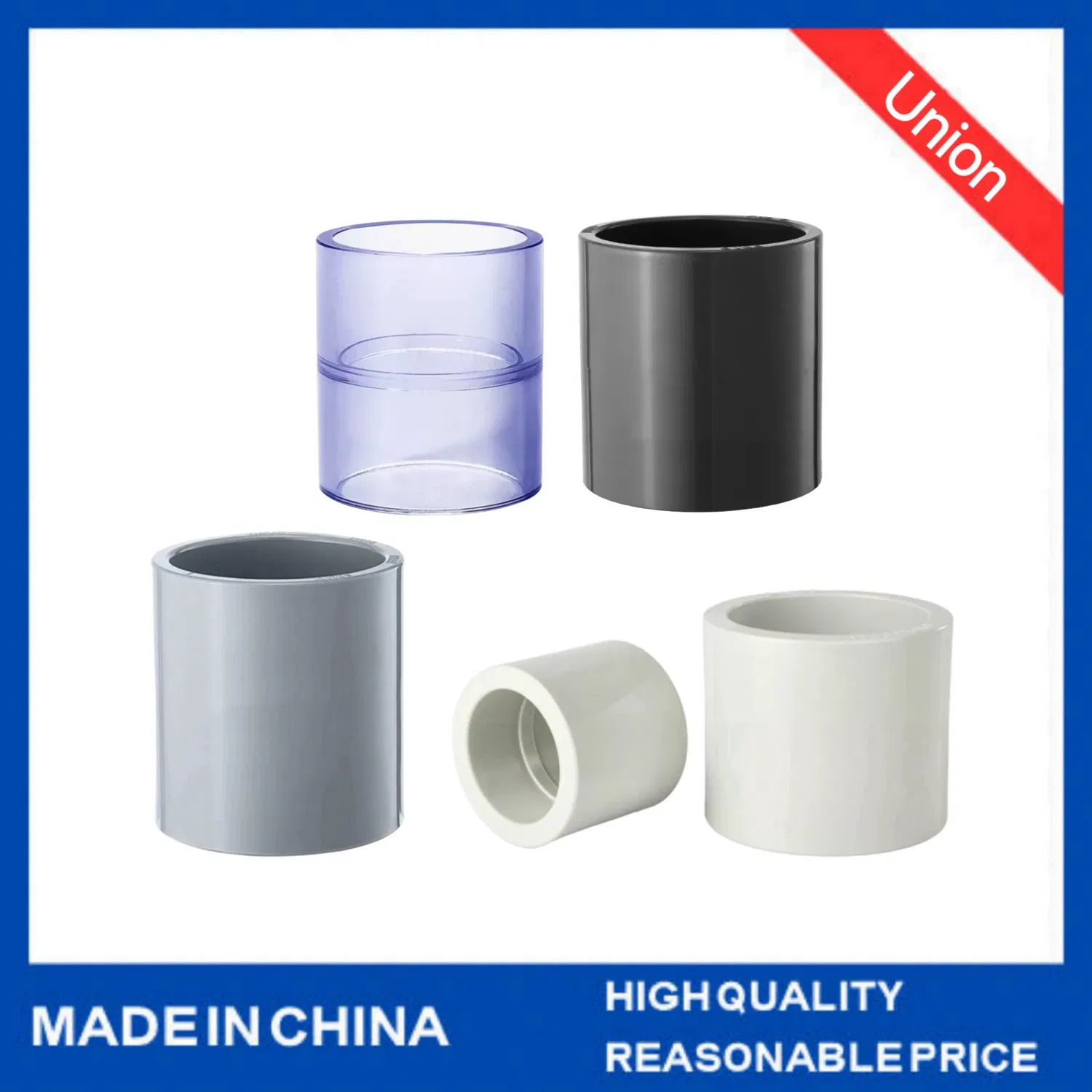

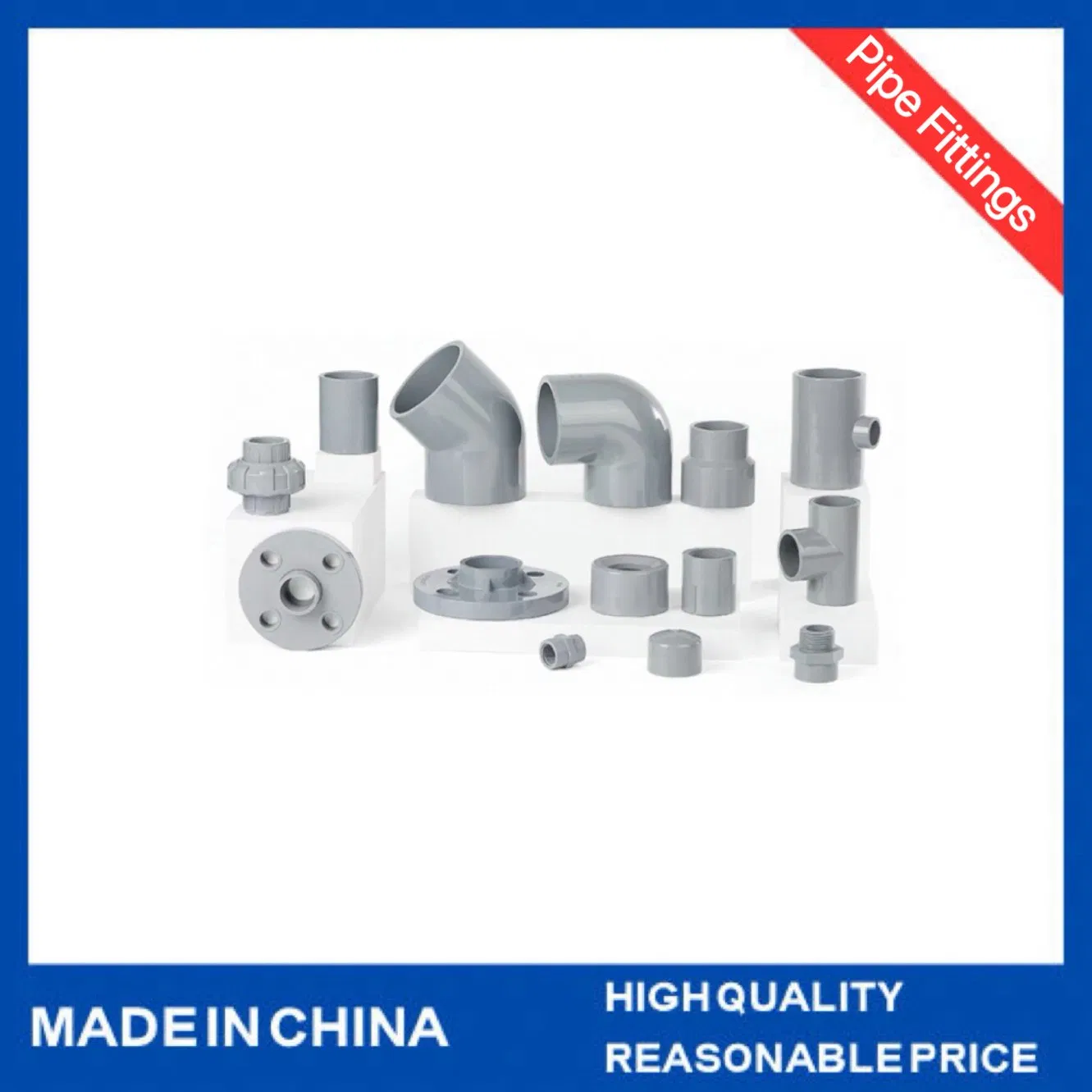

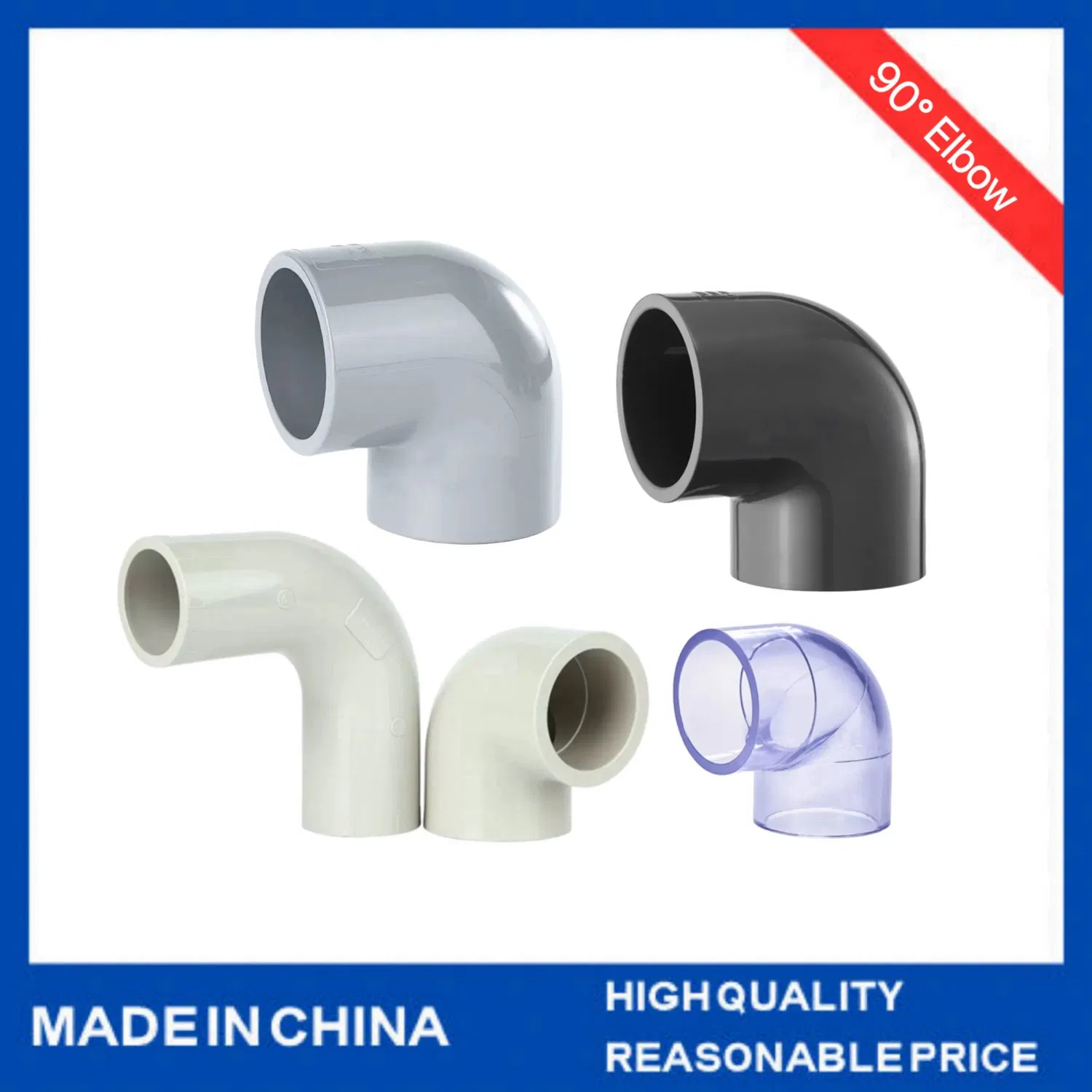

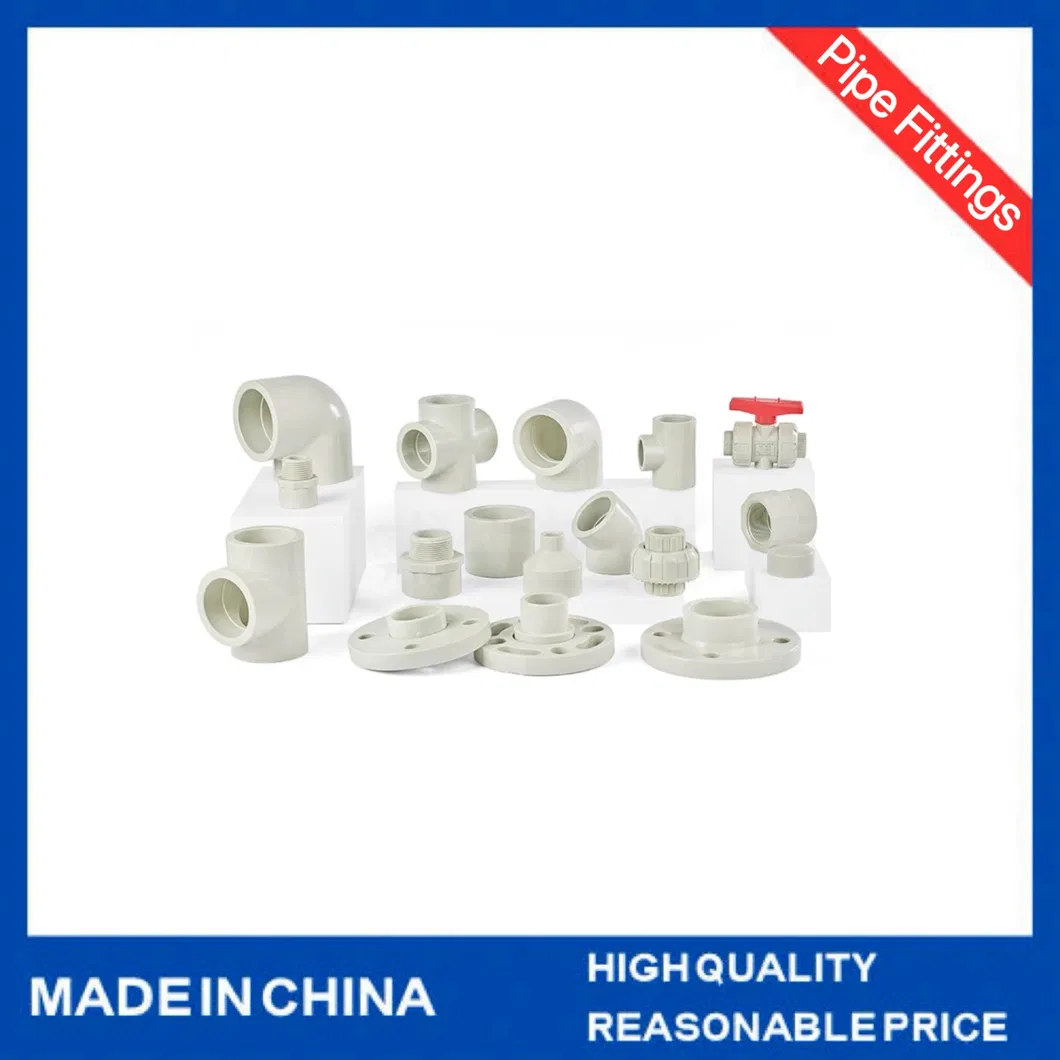

Other Products

Packaging & Shipping

FAQ

QAre you trading company or manufacturer?

We are manufacturer.

QHow to order?

Normally you can order our products by contacting our representatives. After we receive your message, we will help you to choose the right specifications and handle other inquiries. Then we will send a proforma invoice to you, which includes details of your order and payment instructions. After we receive payment, we will ship your goods and provide the invoice, packing list, and tracking number.

QWhat is our term of trade?

Usually we use EX WORKS. If you need other terms of trade, please let us know.

QHow to pay?

We accept payment by T/T (bank transfer). Please inquire with us about the details in advance.

QHow are you going to deliver our goods?

We can ship your goods either by air express (FedEx, DHL, UPS, TNT etc) or by sea.

QWhat is the main application of the EPDM Seal Pph Double Union Ball Valve?

It is suitable for industrial usage, water industrial usage, and household usage.
