Additionally, we support all overseas factories with raw materials and accessories needed for manufacturing solar water heaters.

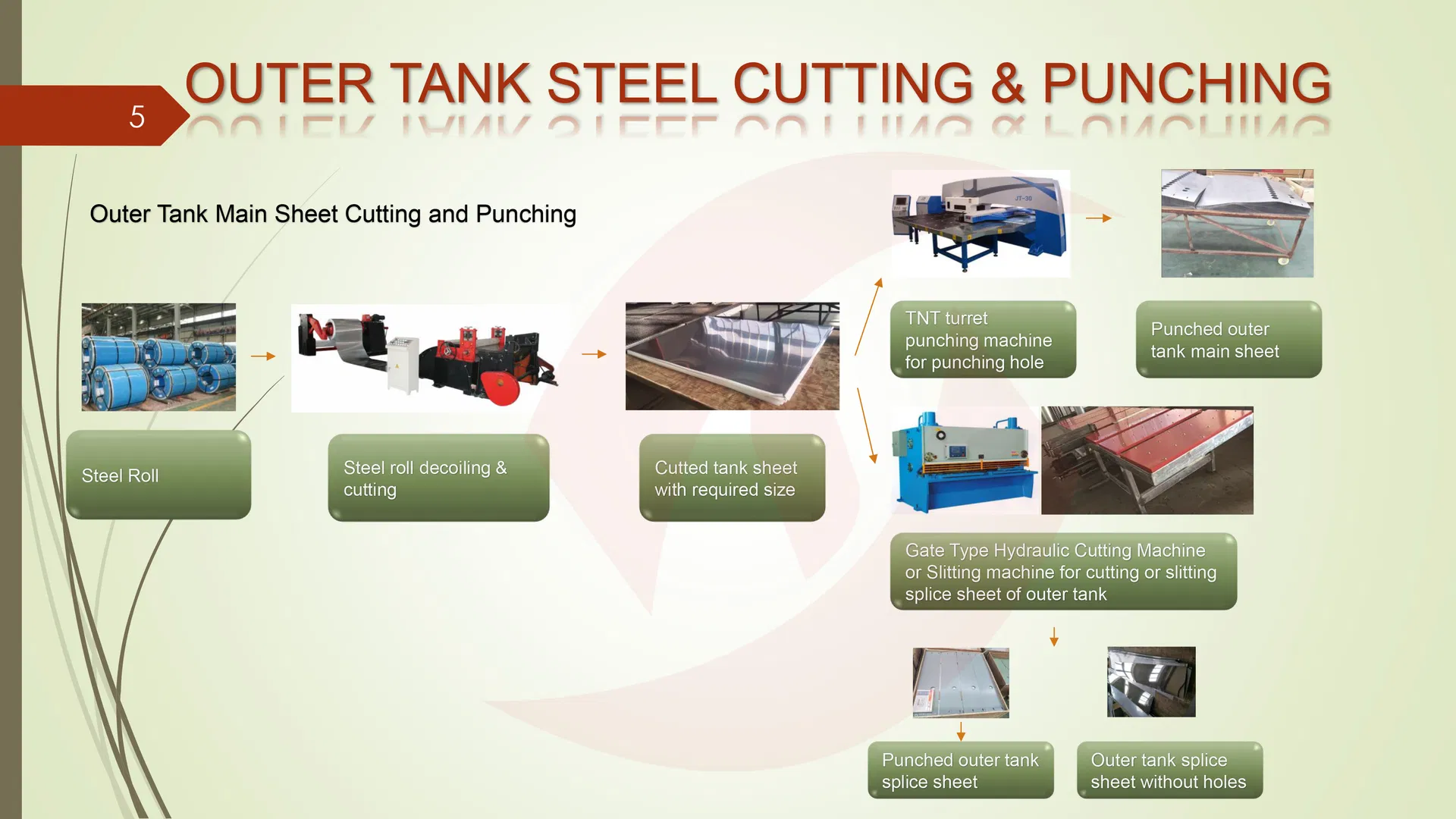

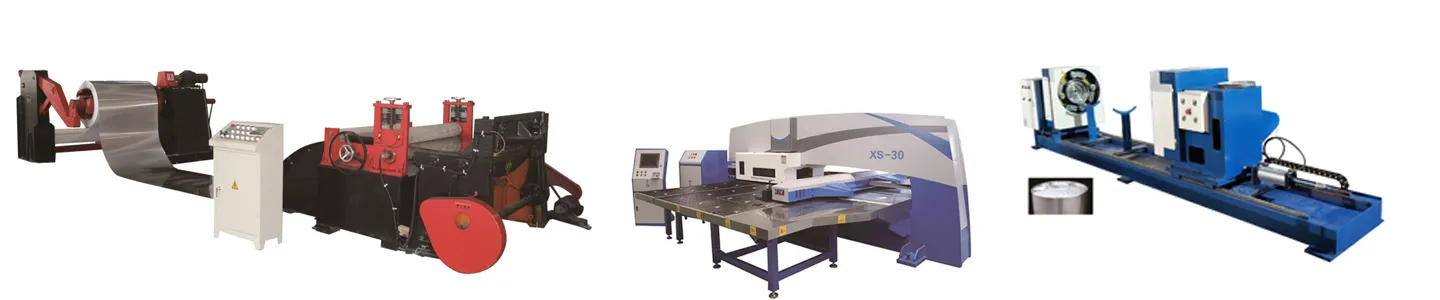

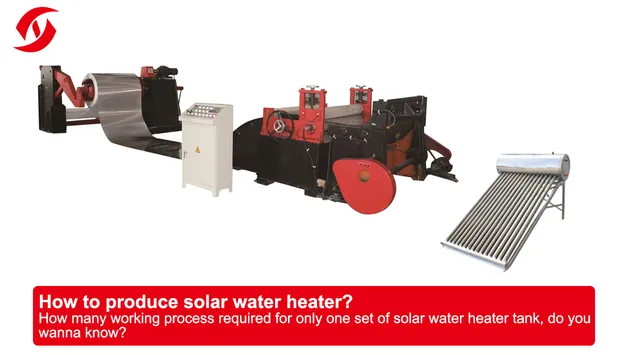

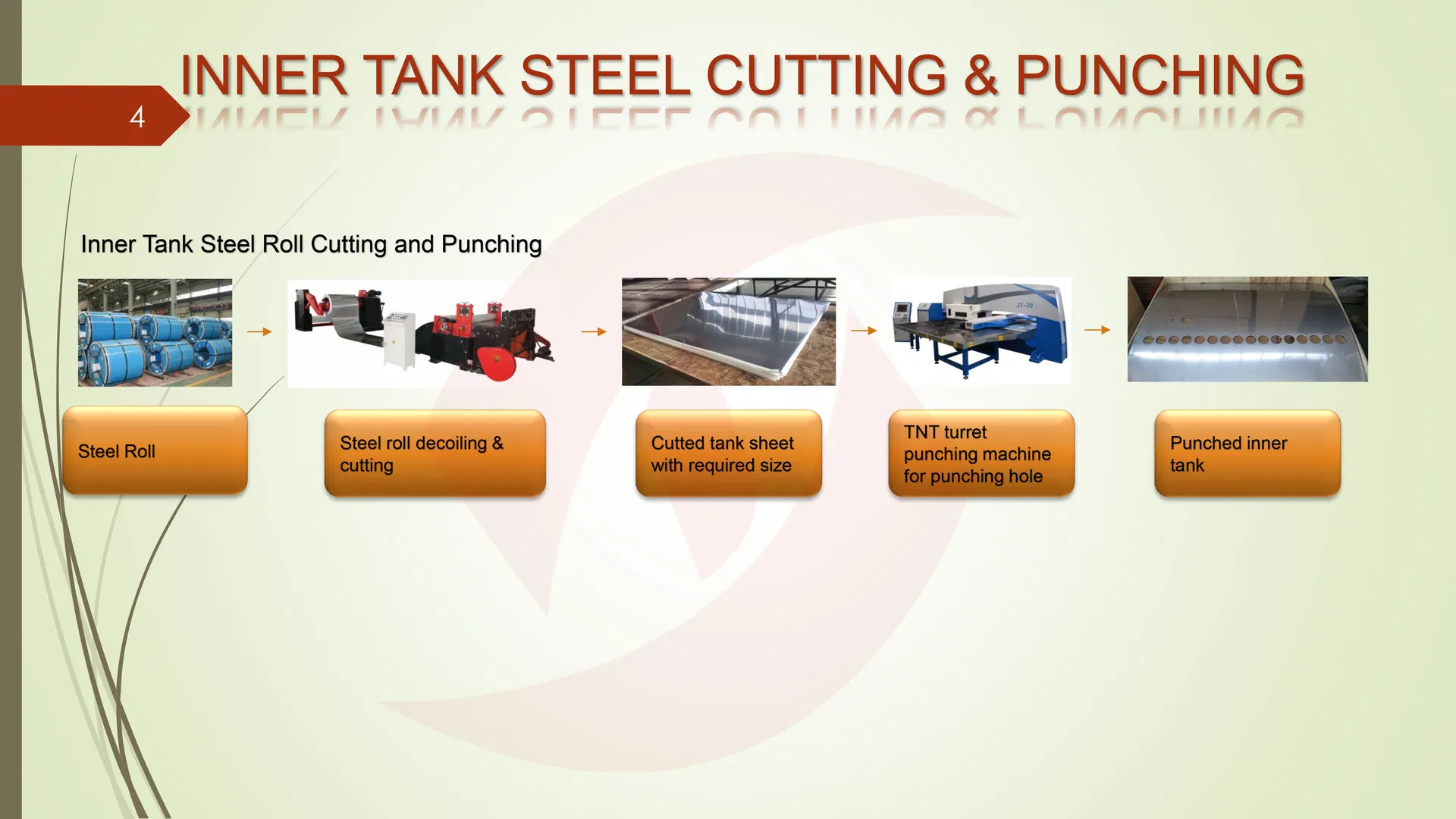

Used for uncoiling the Steel Coil and cutting the plate to specified sizes.

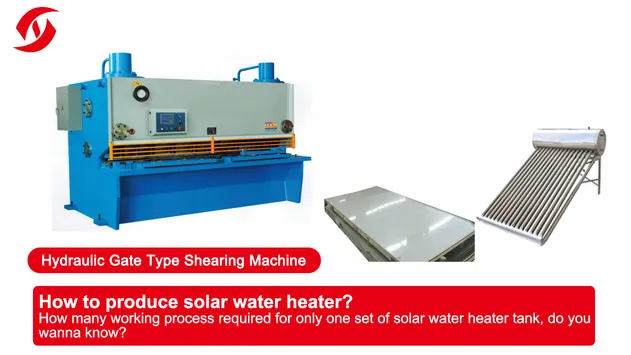

Designed for cutting the splice sheet of the outer tank accurately.

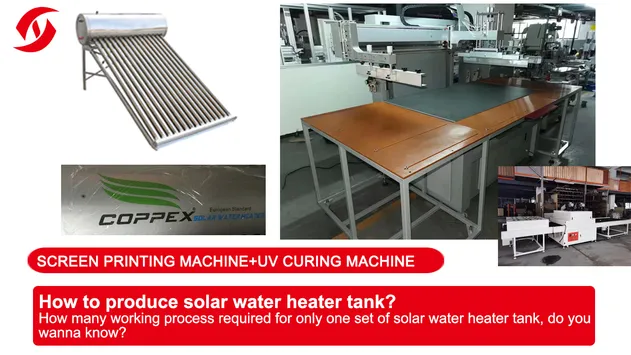

Prints and dries the required logos onto the outer tank sheets.

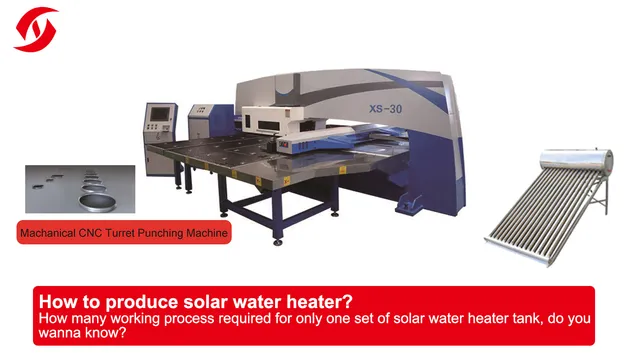

Punches inner and outer tank holes, integrating all functional openings on the main tank sheet.

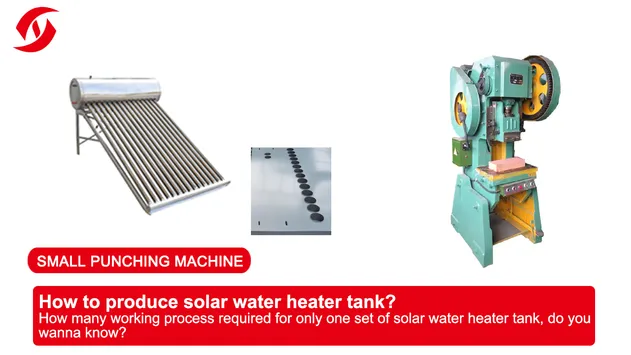

Punches holes on the outer tank splice sheets and key functional holes on tank caps.

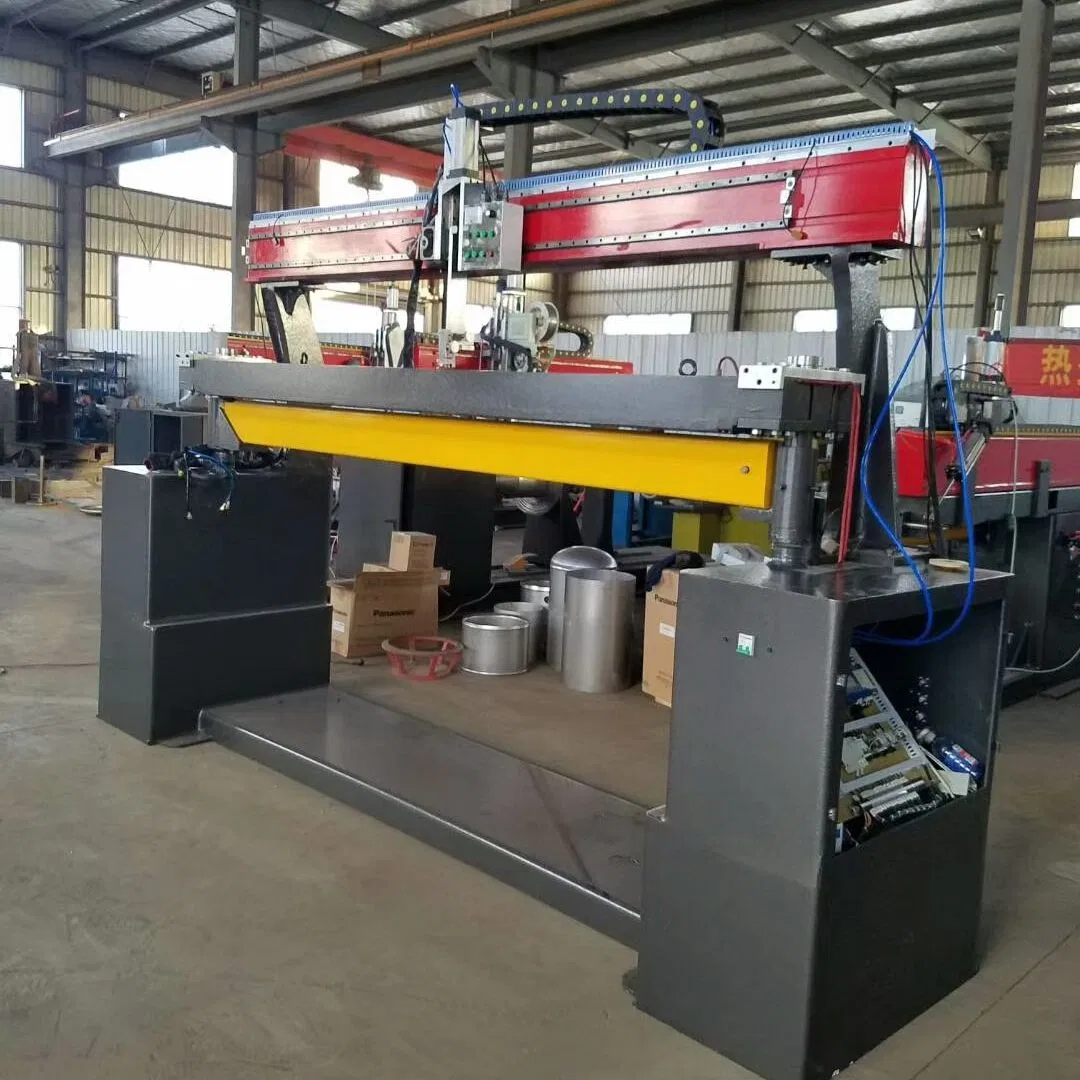

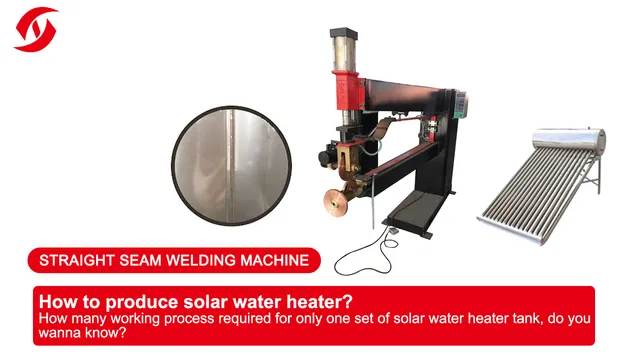

Performs longitudinal straight seam welding for the inner tank.

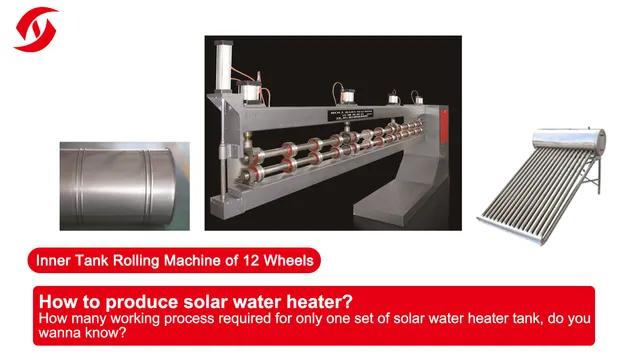

Enhances inner tank strength by rolling annular convex tendons onto the tank surface.

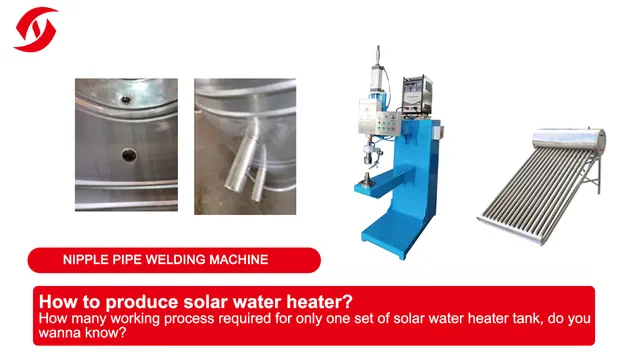

Securely welds the pipe nipples to the inner tank or inner tank covers.

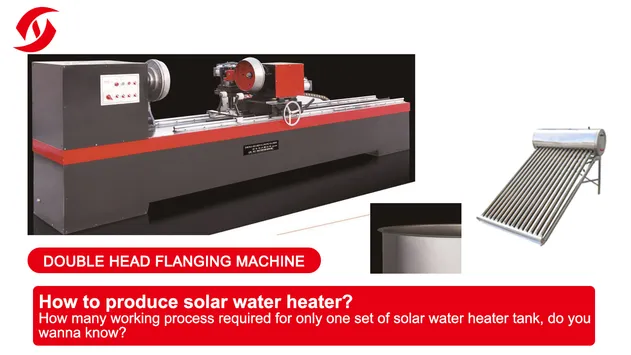

Specifically engineered for flanging both ends of the inner tank body.

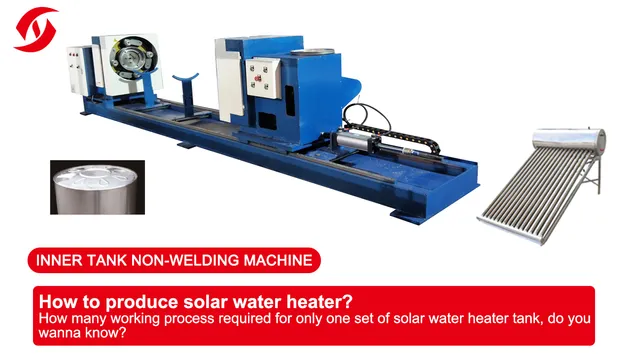

Combines the inner tank body and inner tank cover using mechanical non-welding technology.

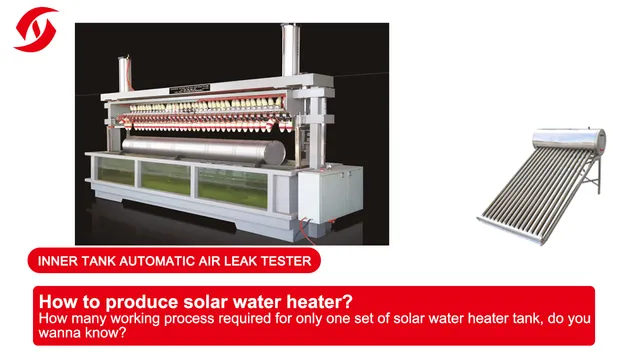

Provides quality checks to detect any leakage in the assembled inner tank.

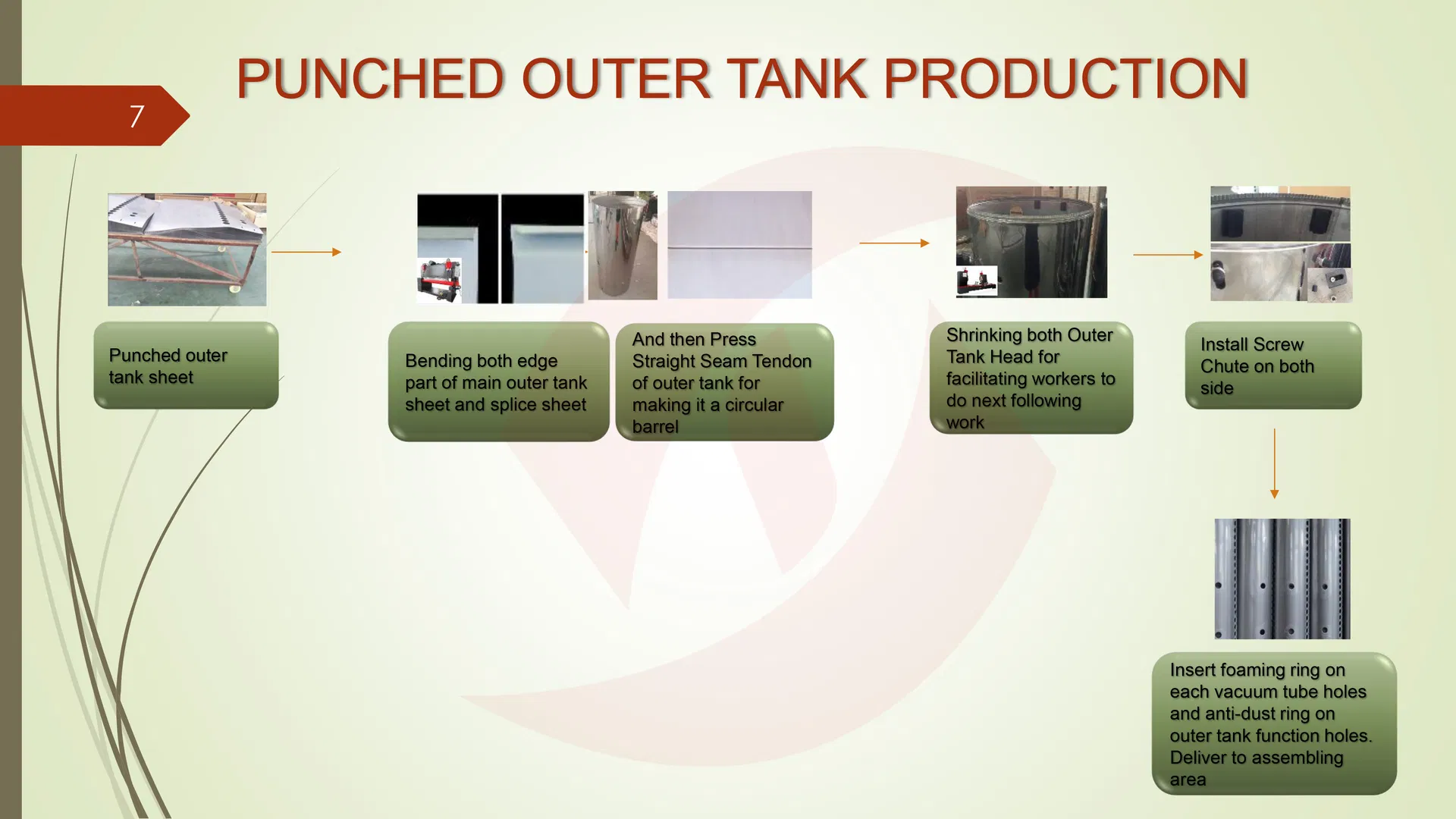

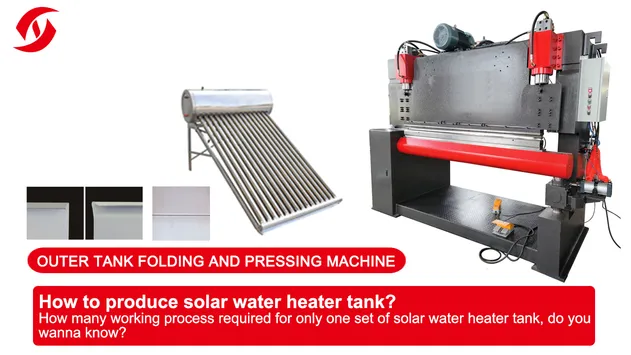

Performs outer tank edge bending and straight seam pressing operations.

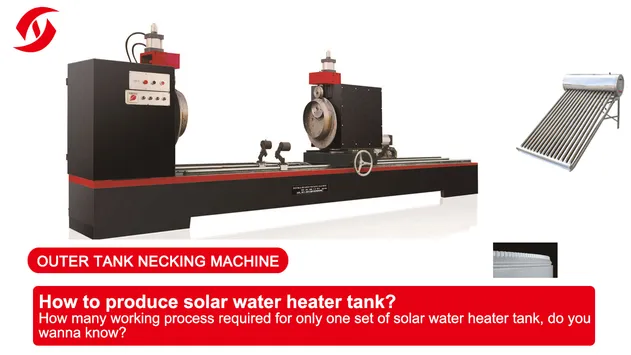

Shapes the outer tank end into a toothing format to simplify combination with the outer tank cap.

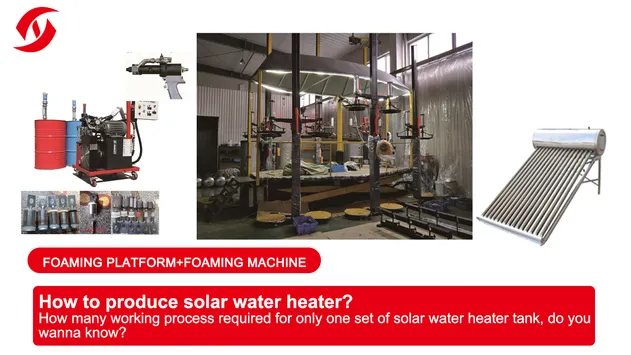

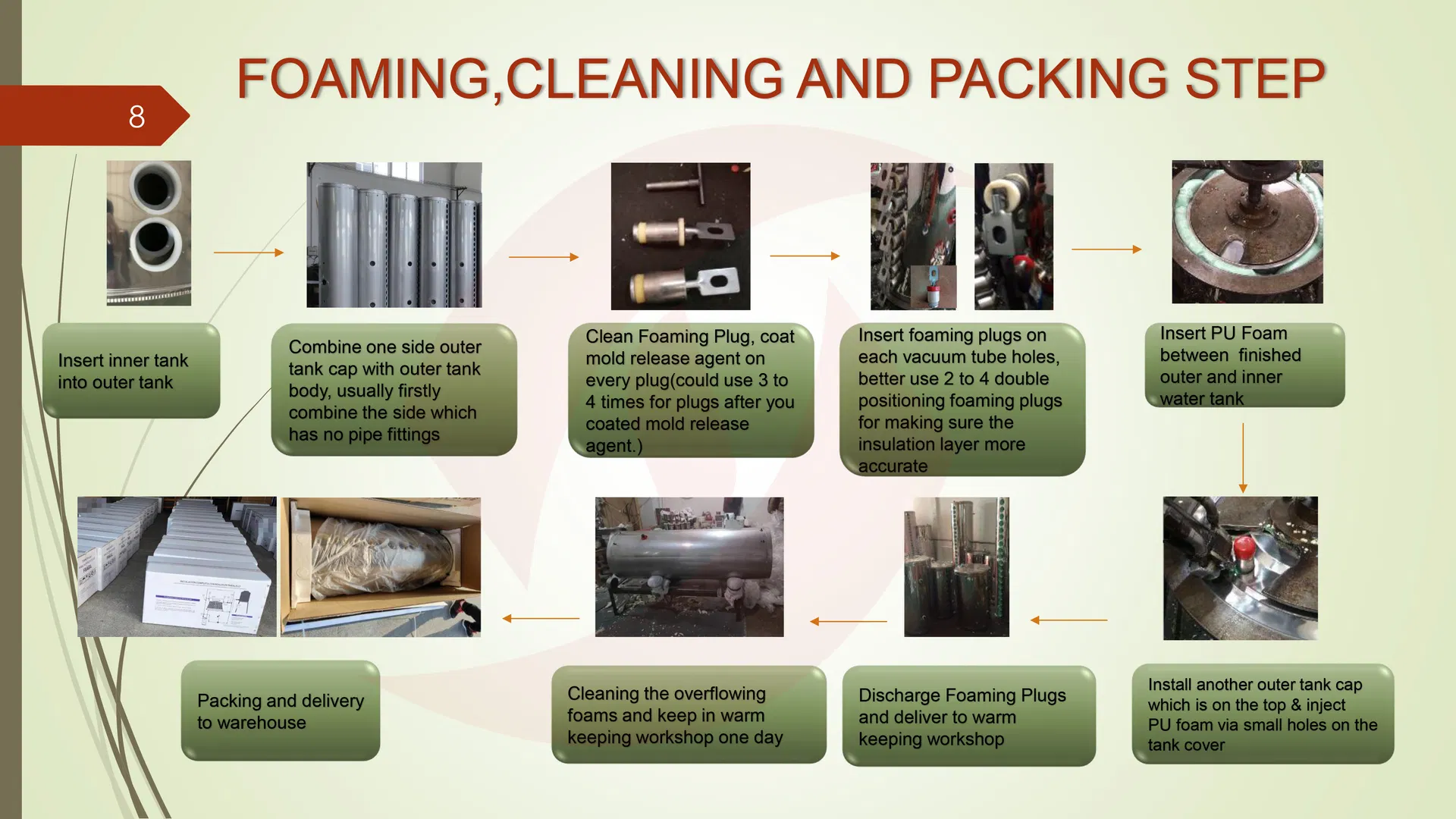

Fixes the assembled tank structures and injects PU insulation foam inside the foaming layer.

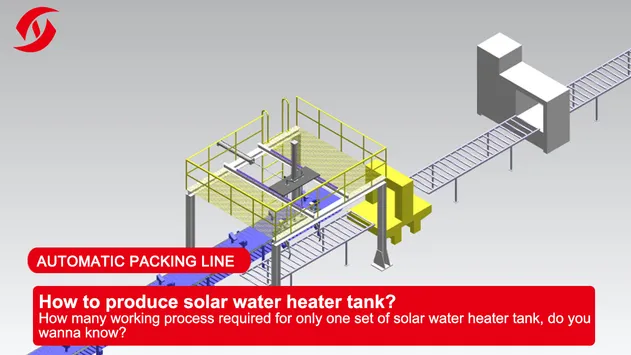

Automates the final protective packaging phase for completed tanks.

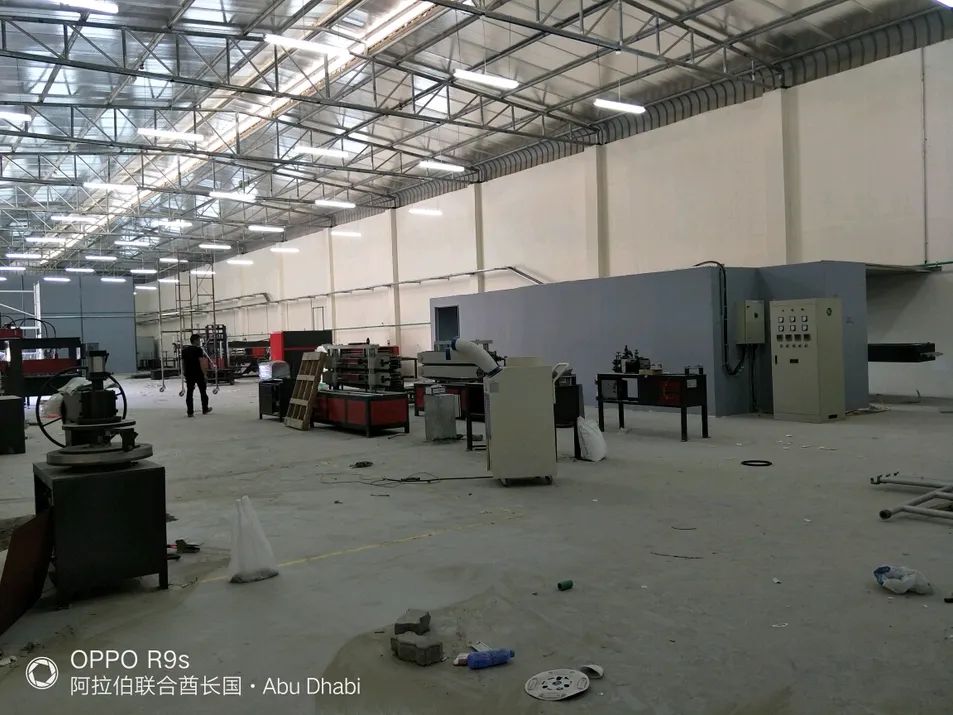

Complete solar water heater tank production line, plus corrugated pipe production and annealing line installed in Abu Dhabi, UAE.

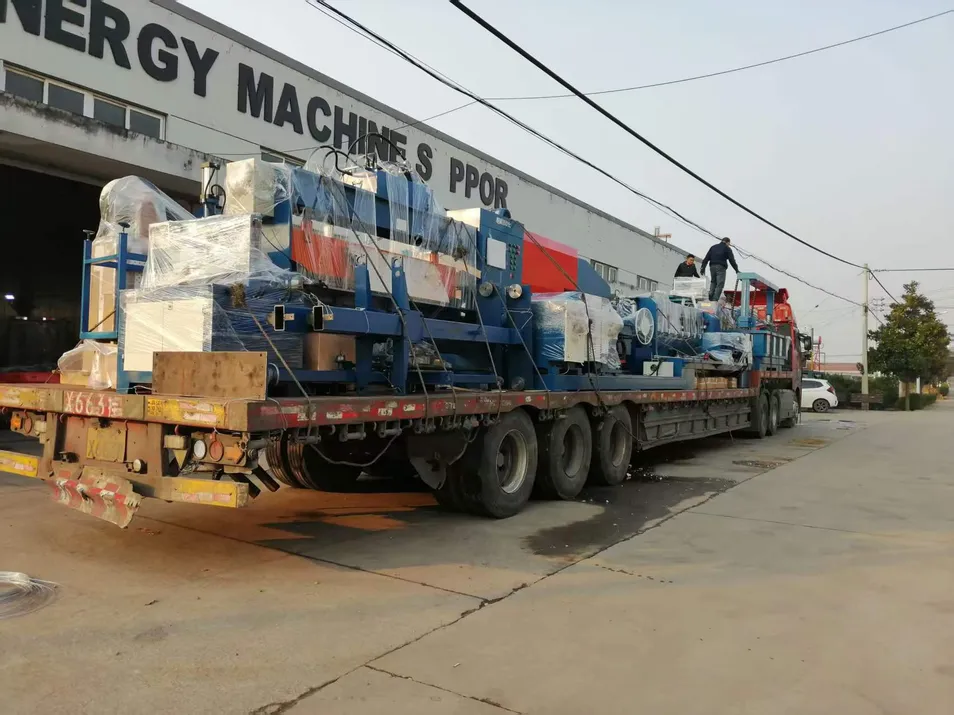

A complete solar water heater tank production line delivered directly to Vietnam by truck.

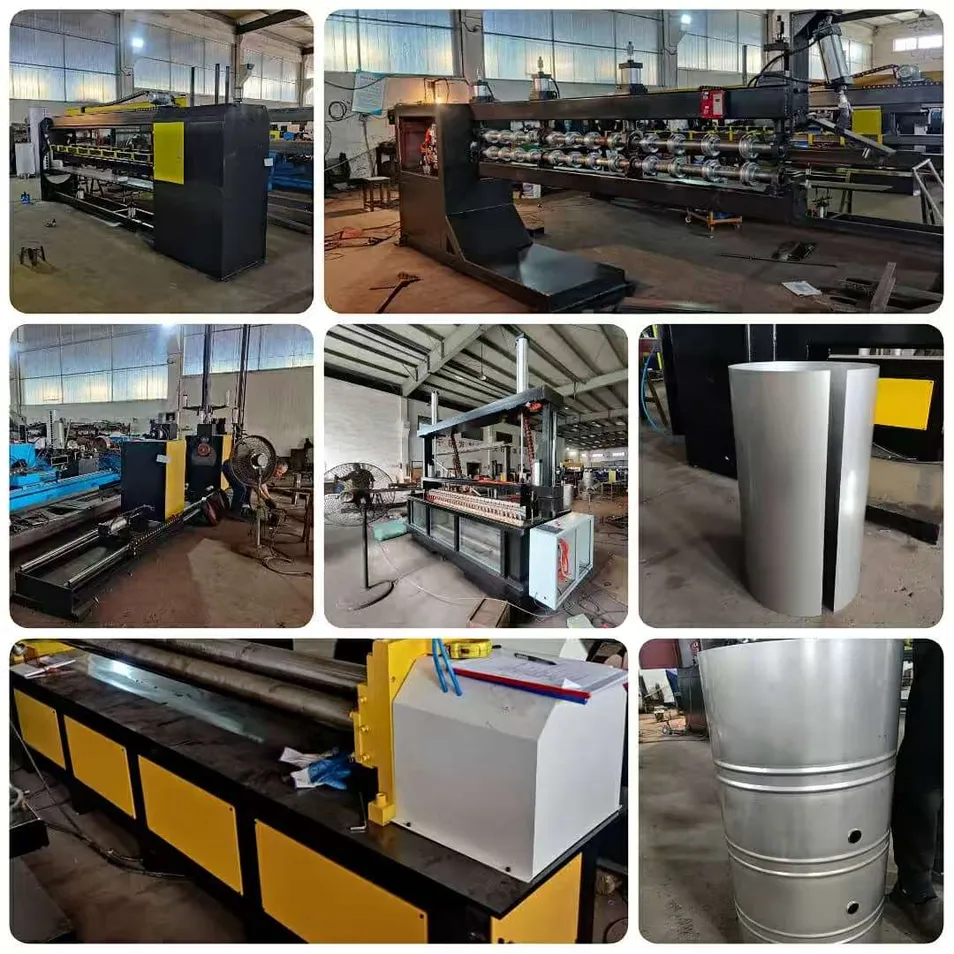

Complete solar water heater tank production line tailored specifically for the Mexico market.

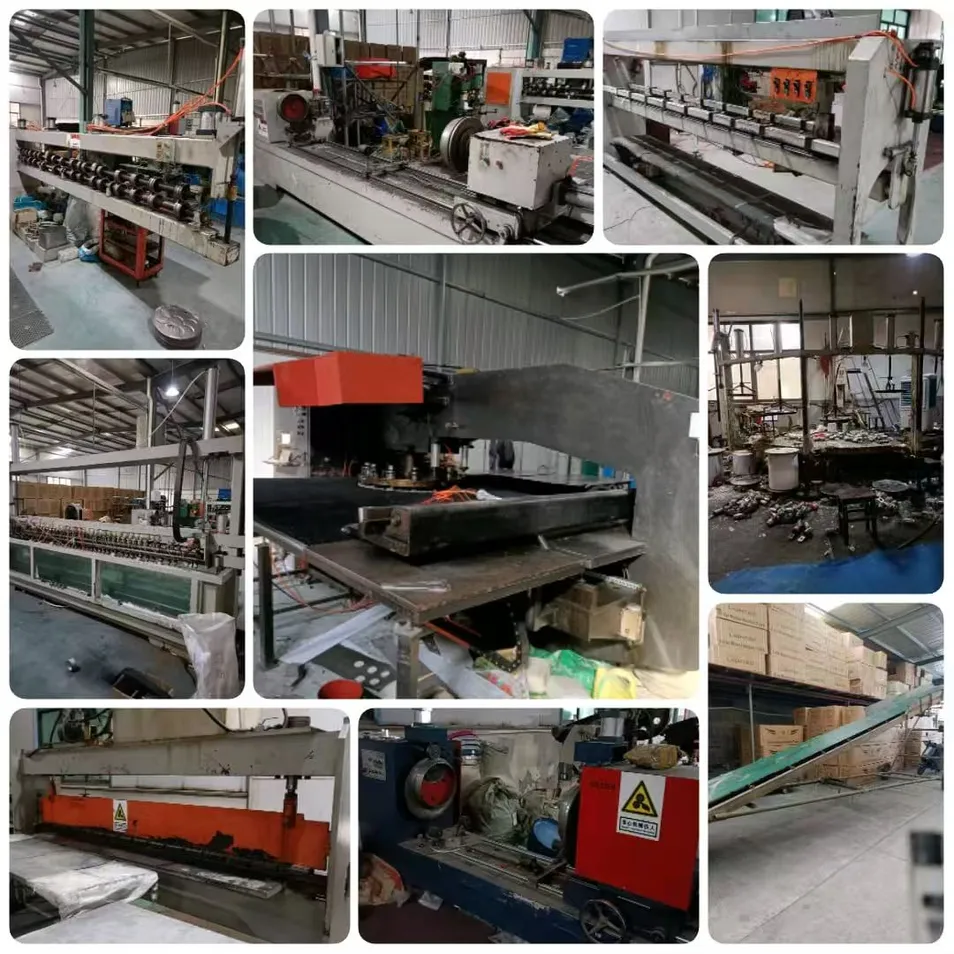

Refurbished and complete second-hand production line configured for solar water heater tanks in the Middle East.

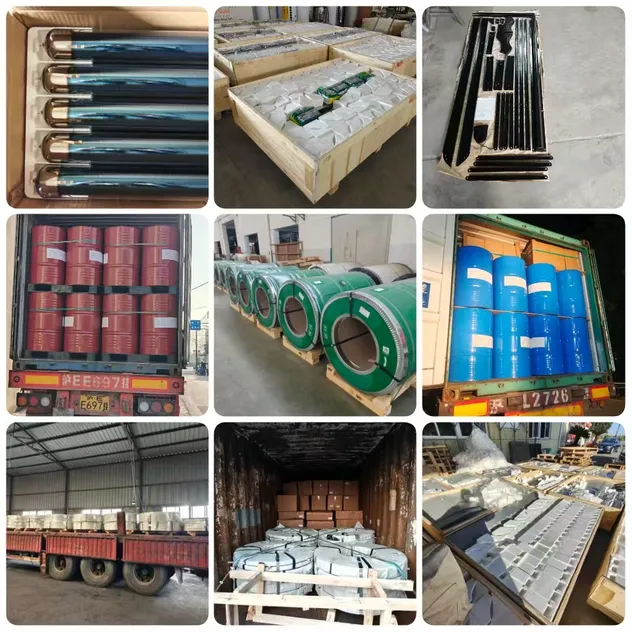

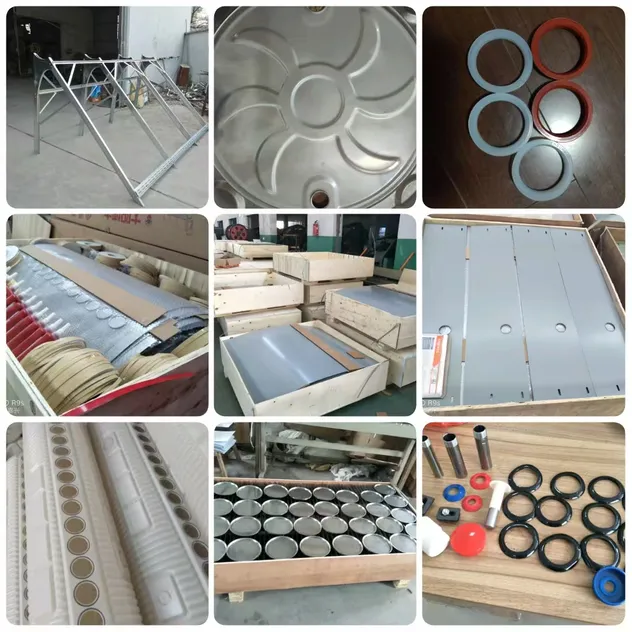

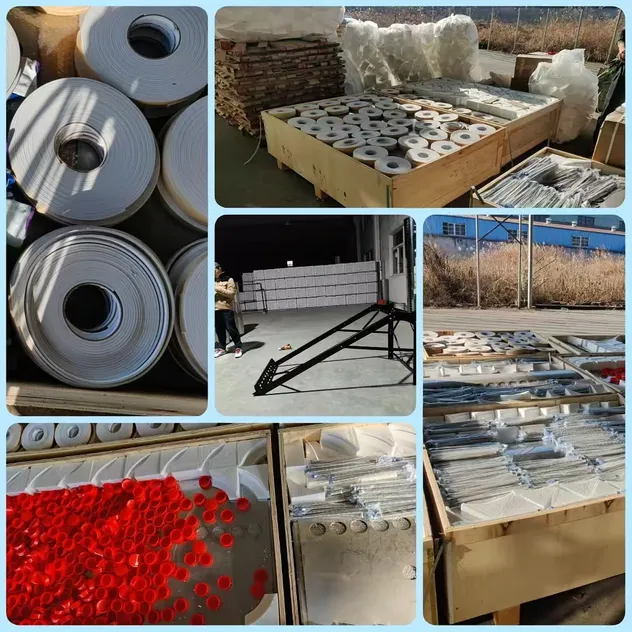

| RAW MATERIALS LIST REQUIRED FOR SOLAR WATER HEATER | |
|---|---|
| Tank Part Ingredients: | |
| Inner Tank |
Stainless Steel Sheet (SUS304-2B, SUS316L) Inner Tank Cap with SUS304-2B/SUS316L Stainless Steel Material Silicone Rings & Pipe Fittings |
| Outer Tank |
PVDF Coating Galvanised Steel Sheet (Pearl White, Ivory White, Silver Brushed, Silver Fluorine Titanium with High Gloss, Golden Yellow, Red, Green, etc.) SUS201-BA/SUS304-2B/SUS304-BA/SUS304 Hairline/SUS316L Stainless Steel Outer Tank Cap, Anti-dust Rings, Bottom Decoration Cap Heating Resistor Hole Nylon/Silicone/SUS304/SUS316L Plug & Red Plastic Cover Heating Resistor Decoration Cover & Air Vent Cover |
| Insulation Layer | POLYMERIC MDI, COMBINATION POLYETHER, MOLD RELEASE AGENT |
| Frame |
Galvanised Steel Type frame with color paint SUS201 Frame, SUS304 Frame, Alloy Aluminum Frame |
| Vacuum Tube | Cu/SS-ALN/ALN, Three-target magnetron sputtering plating |
| Optional Accessories | Assistant Tank, Electric Backup Heater, Check Valve, Magnesium Rod, etc. |
