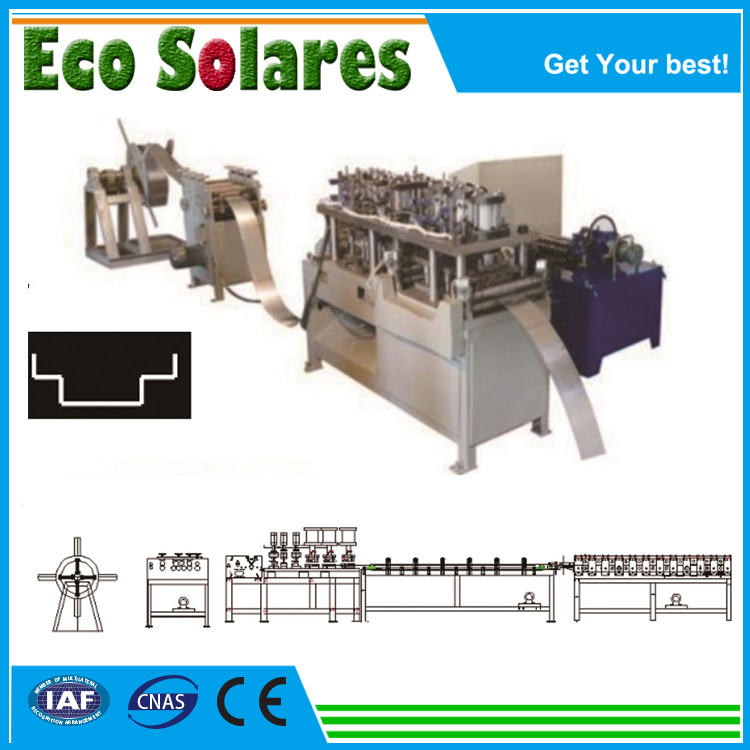

Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
1 / 5
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming
Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming

Solar Water Heater Frame Manufacturing Equipments/ Producing Machinery/Production Line Cap Punching Machine Foaming

Customization: Available
After-sales Service: Online
Warranty: 5 Years
Send Inquiry

Product Description

  • Overview
  • Solar Water Heater Manufacturing Equipment
  • Introduction of Manufacturing Equipment
  • Projects We Supported Overseas
  • Raw Materials We Supported
ℹ️ Basic Info.
Model NO.
YYSP Series
Application Scope
Solar Water Heater Bracket Fore & Back Leg Forming
Technics
Punching, Foaming
MOQ
1 Set
Delivery
1 Month
Transport Package
Nude Package for Whole Container
Specification
YY-XS-3000-Series
HS Code
8462411900
Production Capacity
500 Sets/Year
⚙️ Solar Water Heater Manufacturing Equipment

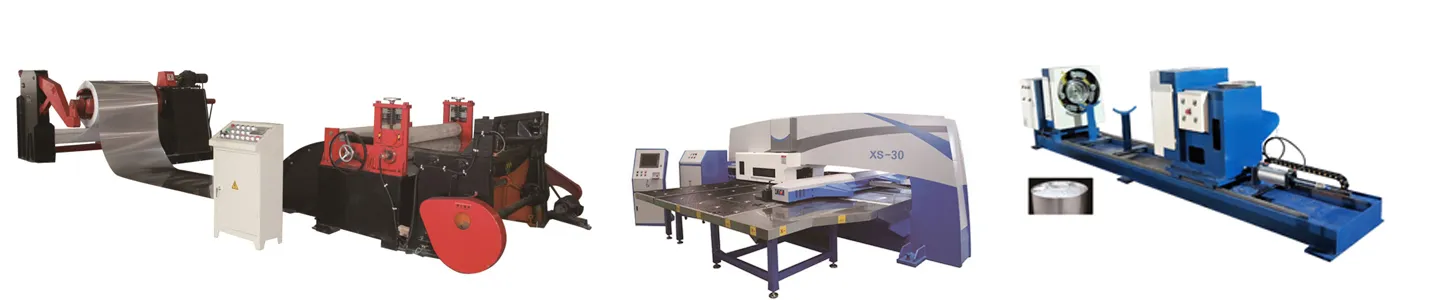

Solar Water Heater Frame Manufacturing Equipments

BRIEF INTRODUCTION

Specializing in offering all types of solar water heater manufacturing equipment with over 20 years of experience in machinery innovation and production.

  • Low Pressure Solar Water Heater Tank Production Line
  • High Pressure Solar Water Heater Tank Production Line
  • Solar Water Heater Bracket Production Line
  • Tank Cap Production Line
  • Corrugated Pipe Production and Annealing Line
  • Solar Collector Production Line (Flat Plate, Manifold, Heat Pipe Type)
  • Global factory support with raw materials and accessories needed for production

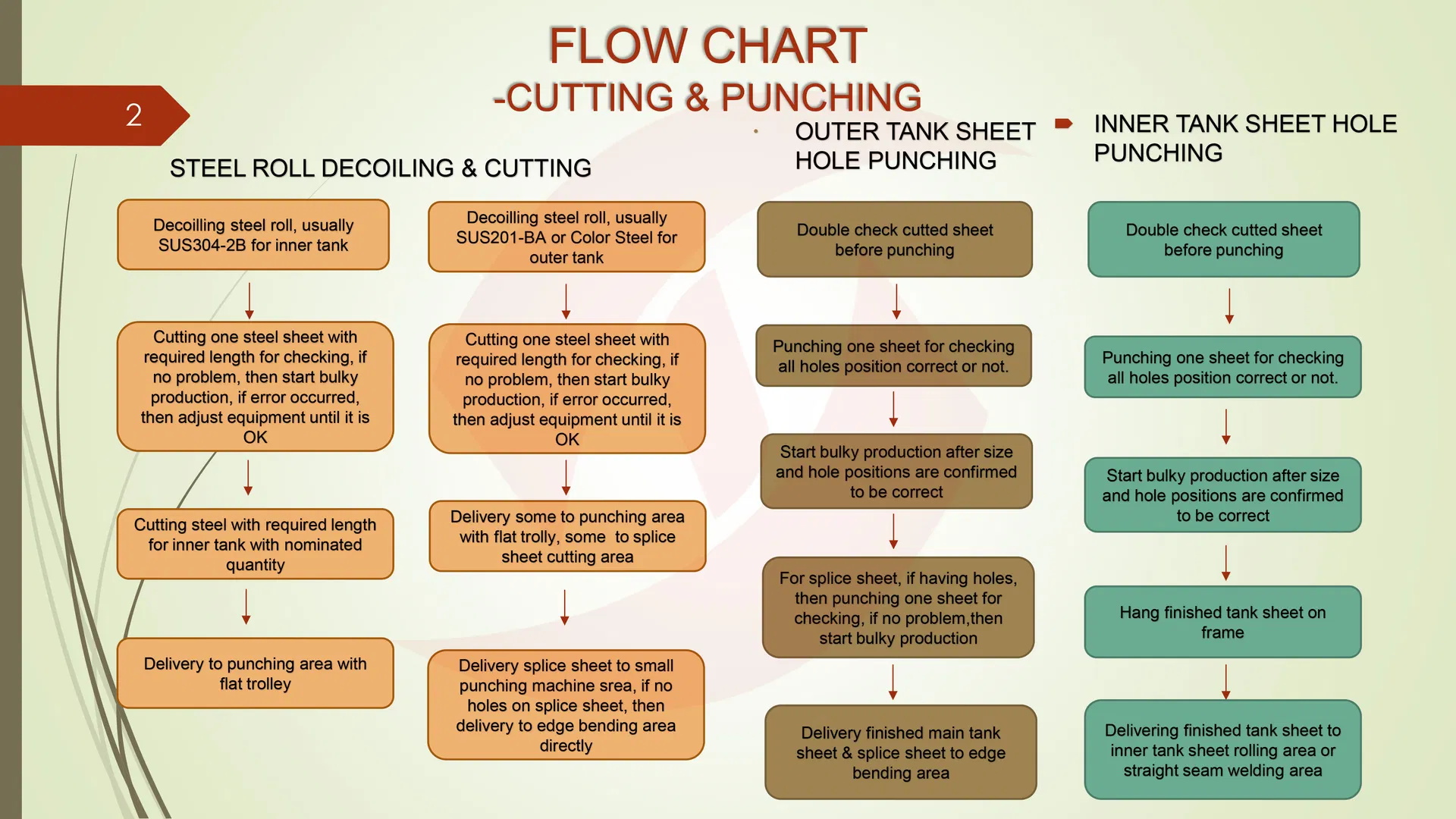

Equipment Setup
Machinery Part

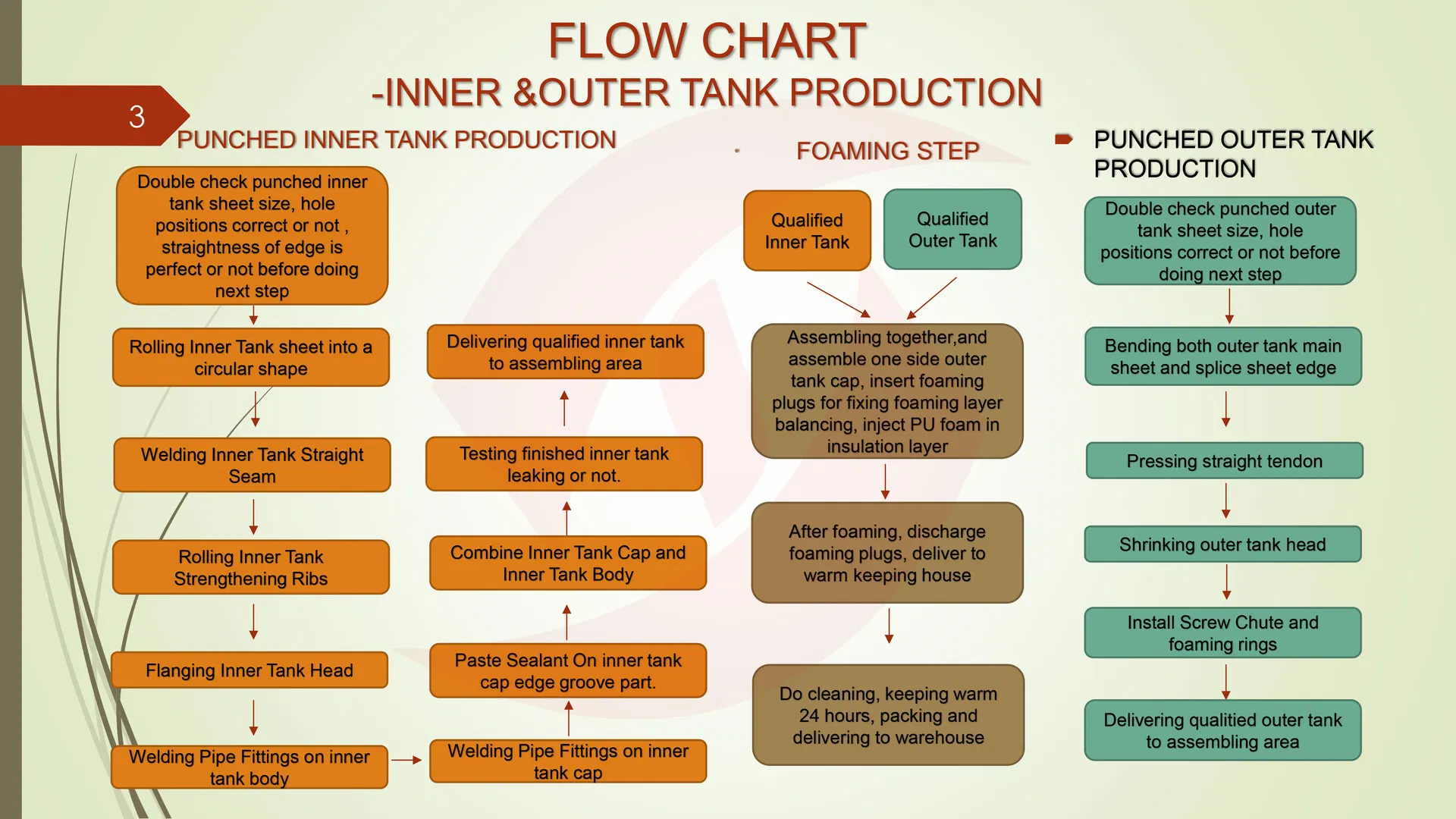

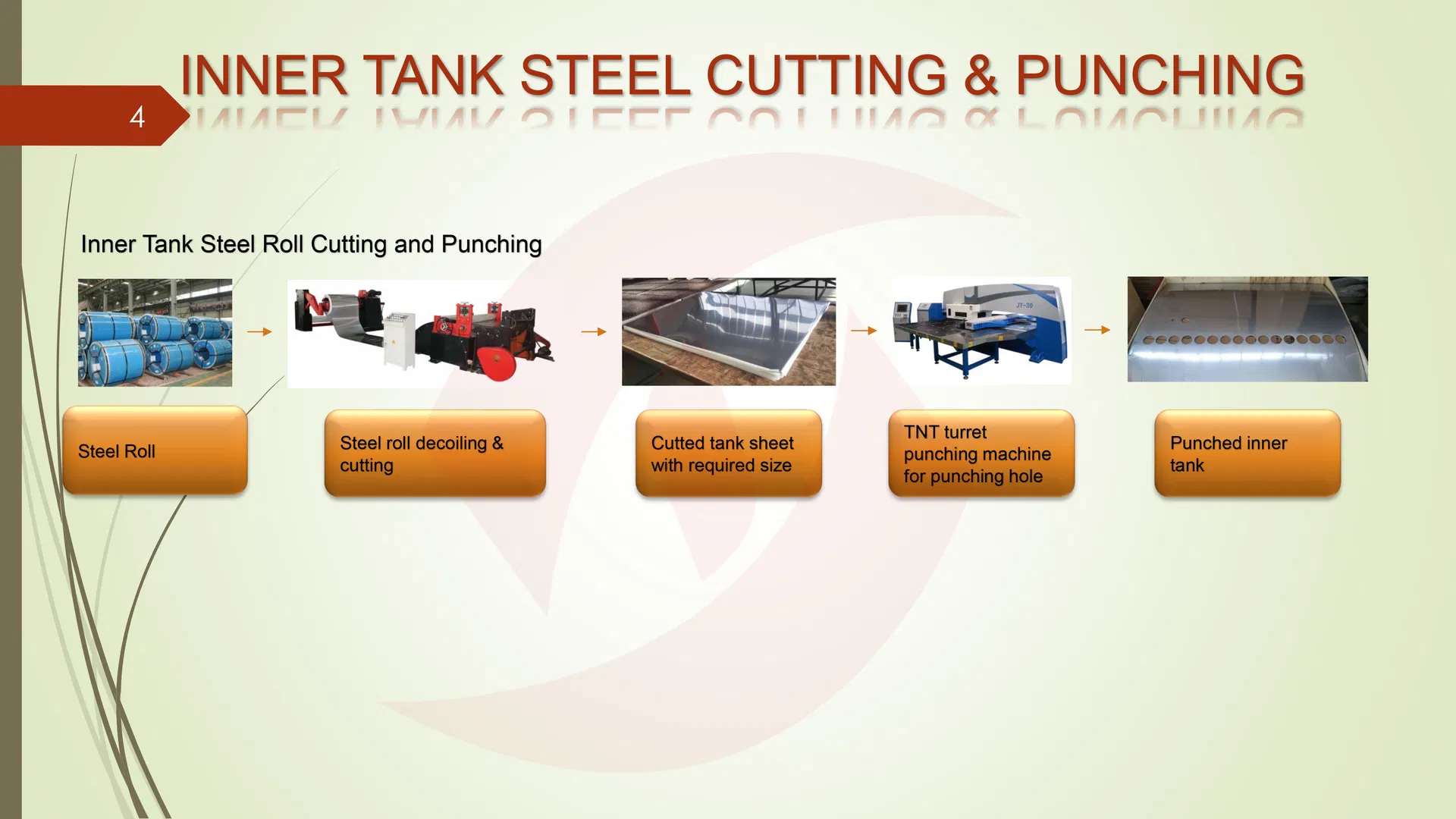

Production Process

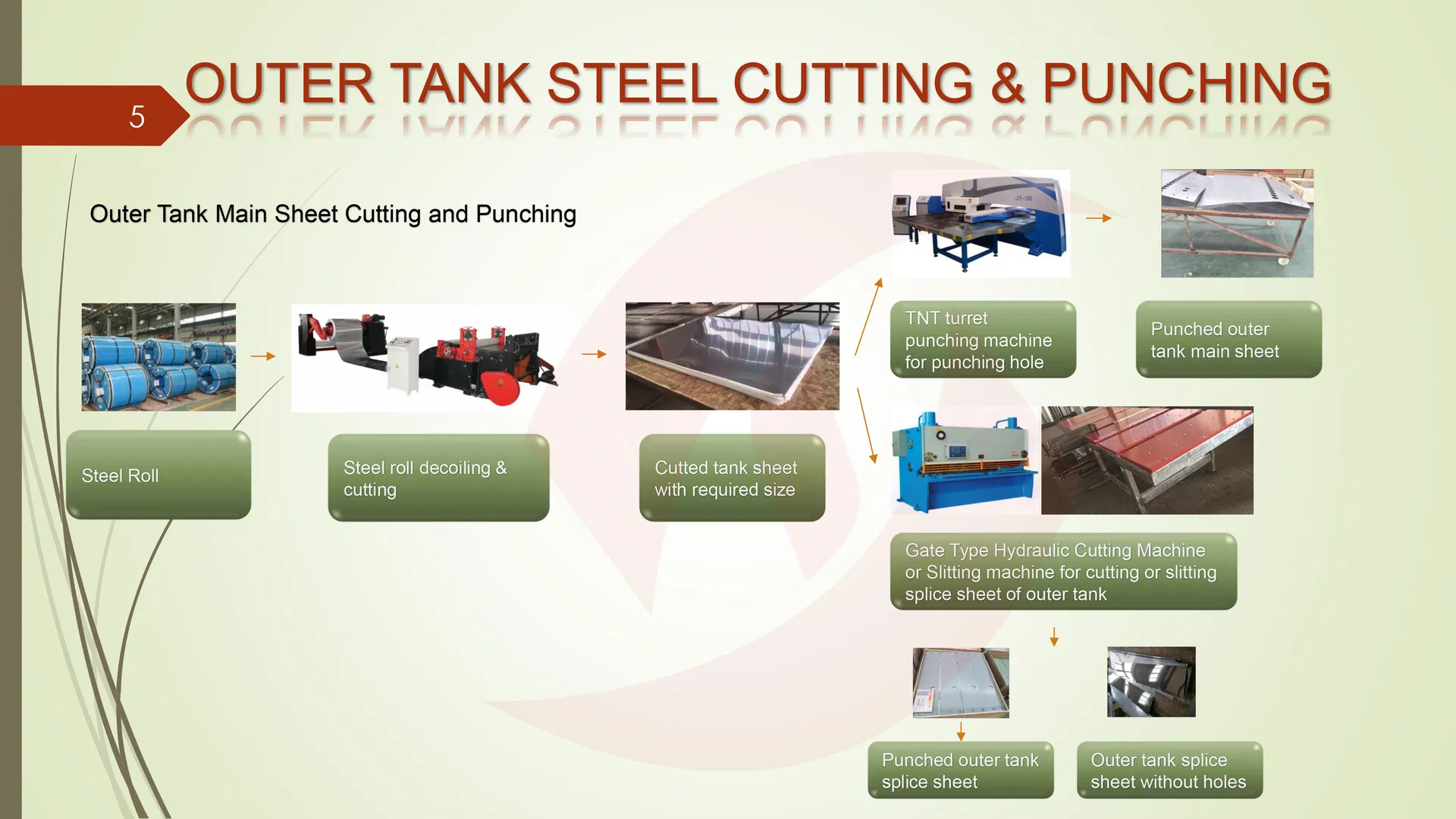

Manufacturing Line Detail
Hydraulic Systems

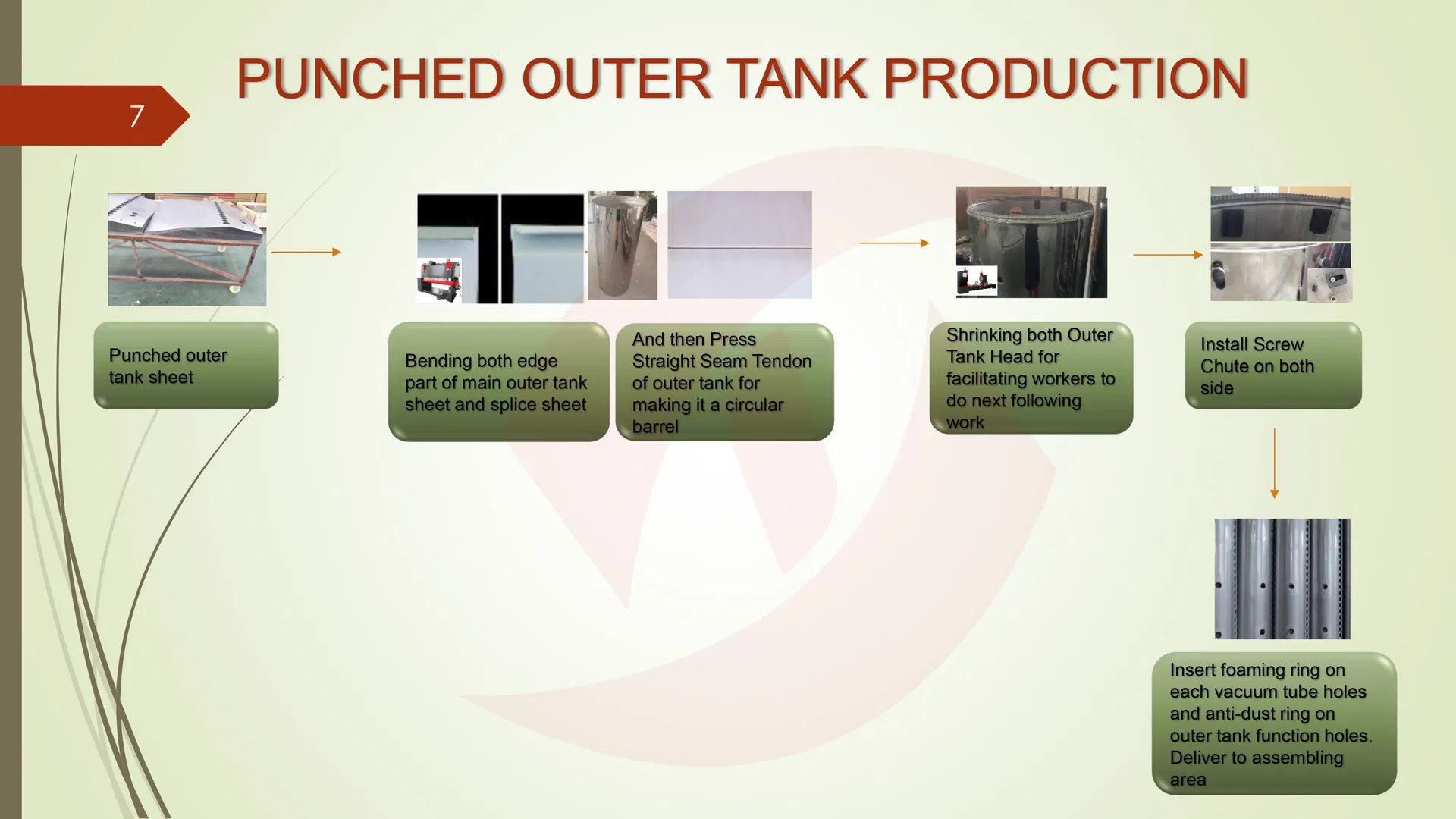

Inner Tank Roller
Assembly Area
🛠️ Introduction of Manufacturing Equipment

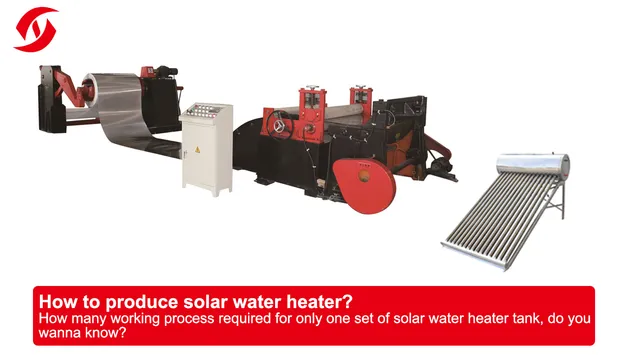

Decoiling Machine
STEEL COIL DECOILING, LEVELING & CUTTING MACHINE
Uncoiling the steel coil and cutting the plate to proper sizes.

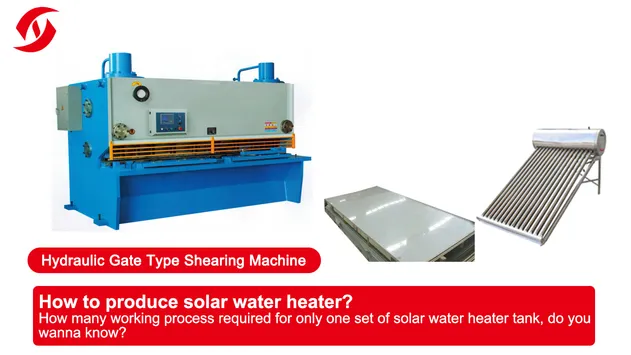

Shearing Machine
HYDRAULIC GATE TYPE SHEARING MACHINE
Cutting splice sheets of the outer tank.

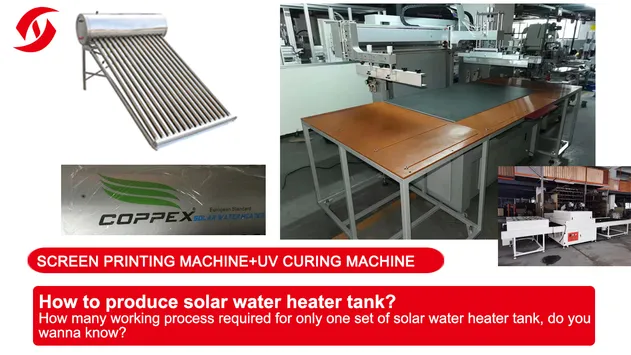

Screen Printing
SCREEN PRINTING MACHINE + UV CURING MACHINE
Printing and drying logo on the outer tank sheet.

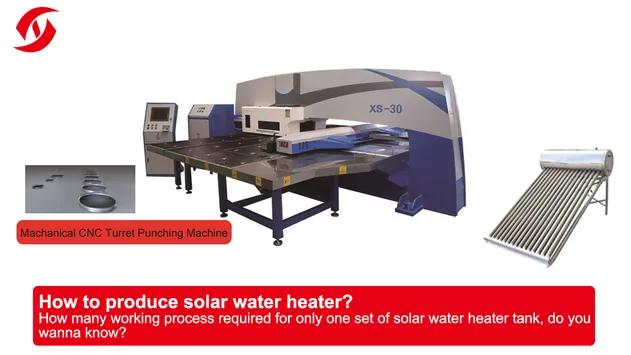

CNC Turret Punching
MECHANICAL CNC TURRET PUNCHING MACHINE
Punching tank holes (All holes on the inner and outer tank body will be processed in the main tank sheet).

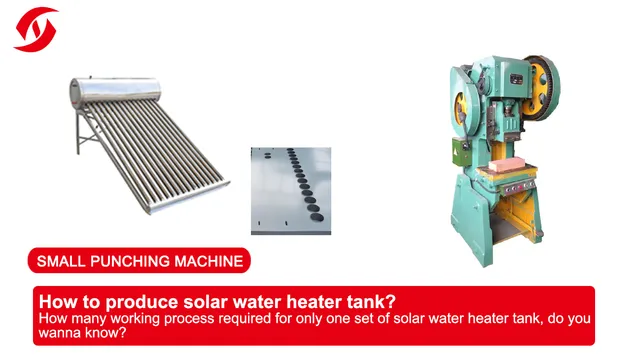

Small Punching
SMALL PUNCHING MACHINE
Punching holes in the splice sheet of the outer tank and function holes on tank caps.

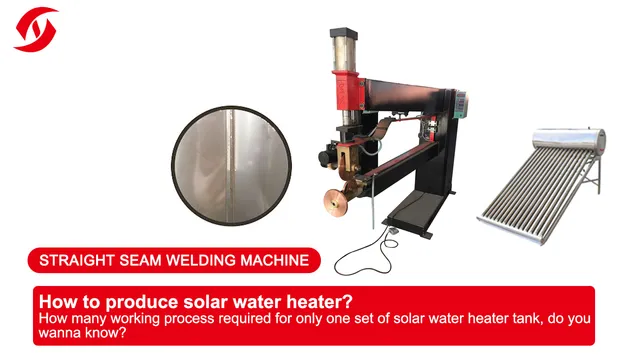

Seam Welding
STRAIGHT SEAM WELDING MACHINE
Welding the straight seam of the inner tank body.

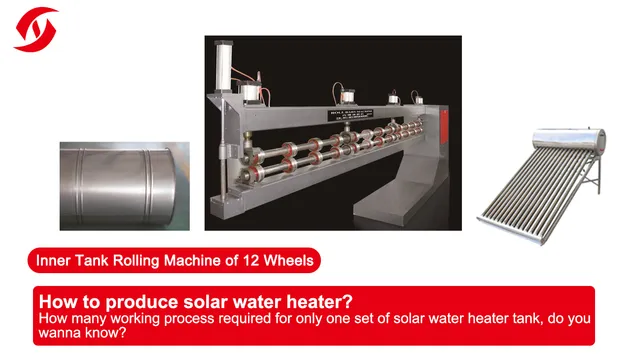

Inner Tank Rolling
INNER TANK ROLLING MACHINE OF 12 WHEELS
Enhancing the strength of the inner tanks by rolling annular convex tendons on the surface.

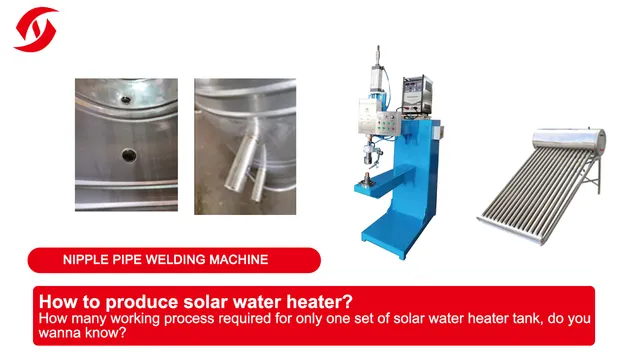

Nipple Pipe Welding
NIPPLE PIPE WELDING MACHINE
Welding connecting pipes with the inner tank or inner tank covers.

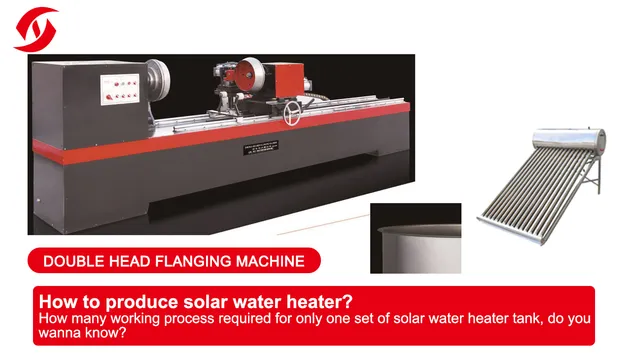

Flanging Machine
DOUBLE HEAD FLANGING MACHINE
Flanging double heads of the inner tank.

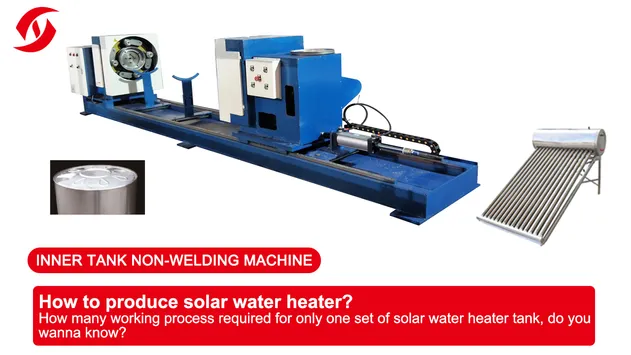

Non-welding Machine
INNER TANK NON-WELDING MACHINE
Combining the inner tank body and inner tank cover using non-welding technology.

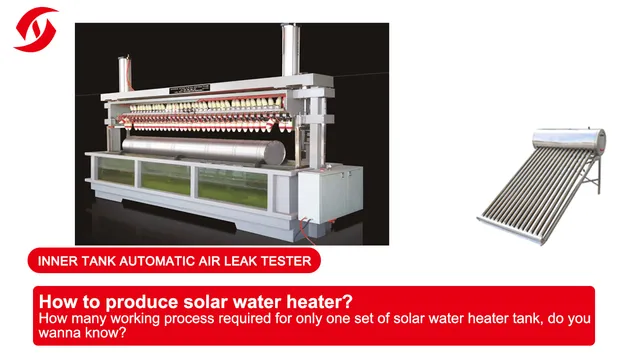

Air Leak Tester
INNER TANK AUTOMATIC AIR LEAK TESTER
Checking the inner tank for leakages.

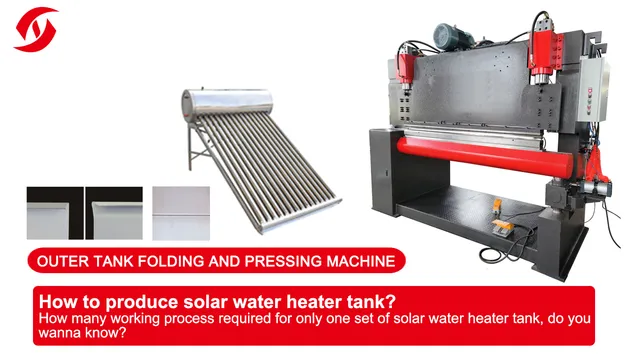

Outer Tank Folding
OUTER TANK FOLDING AND PRESSING MACHINE
Bending the tank edge and pressing the straight seam.

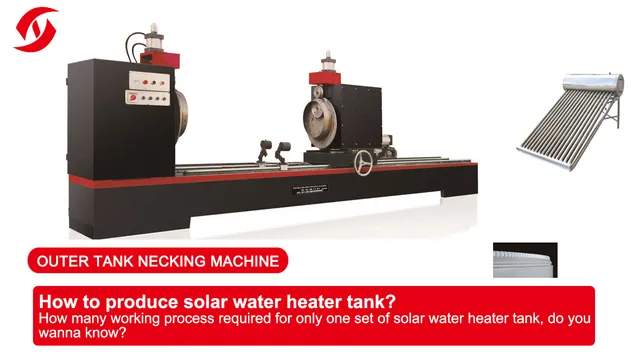

Outer Tank Necking
OUTER TANK NECKING MACHINE
Forming the outer tank head into a toothing shape for easy assembly with the outer tank cap.

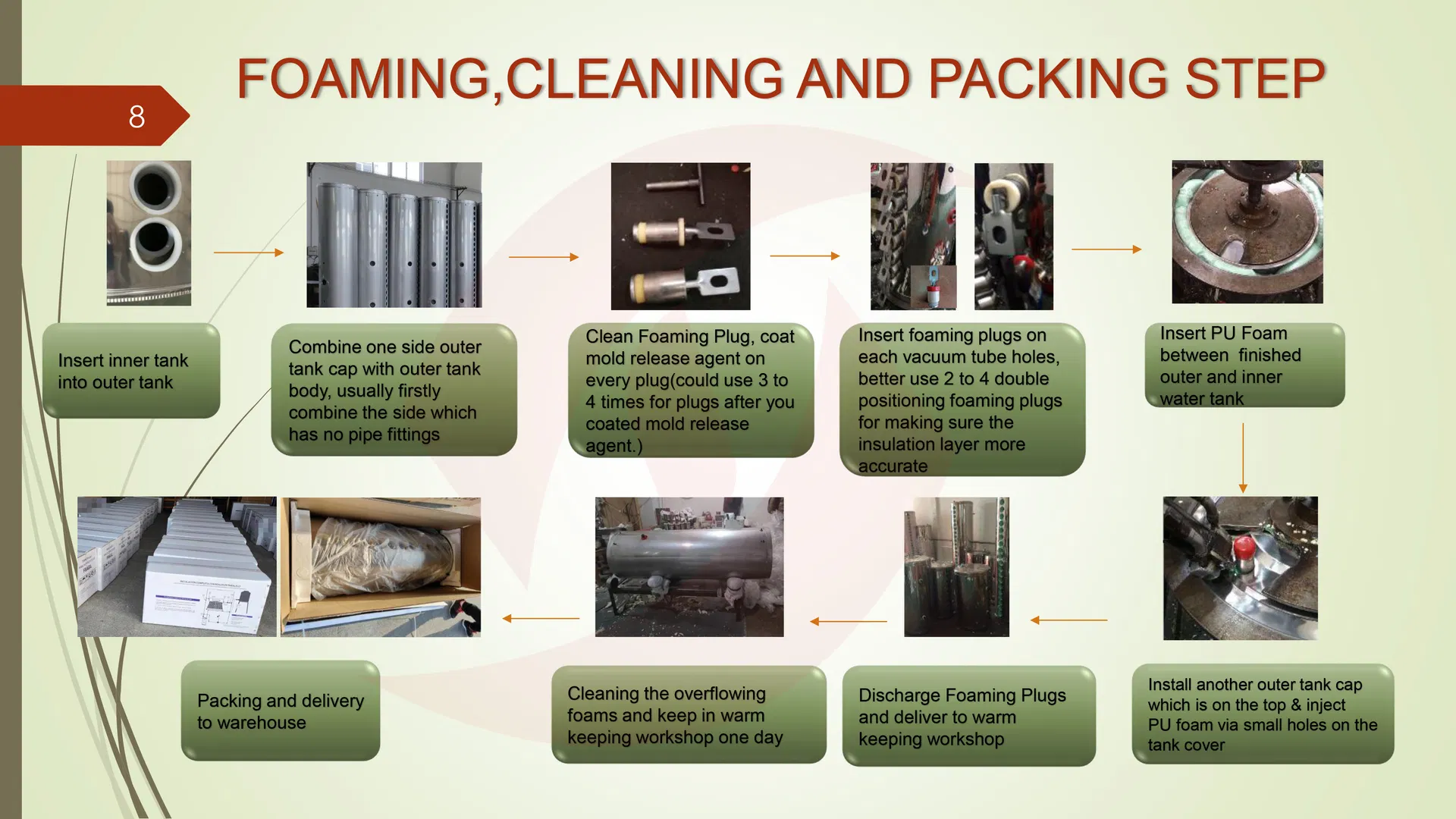

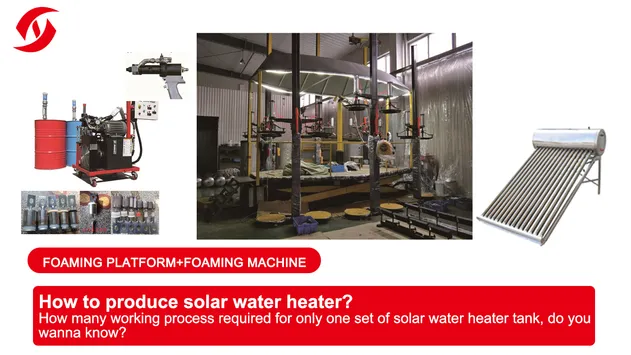

Foaming Platform
FOAMING PLATFORM AND FOAMING MACHINE
Fixing the assembled tank and injecting PU foam inside the foaming layer.

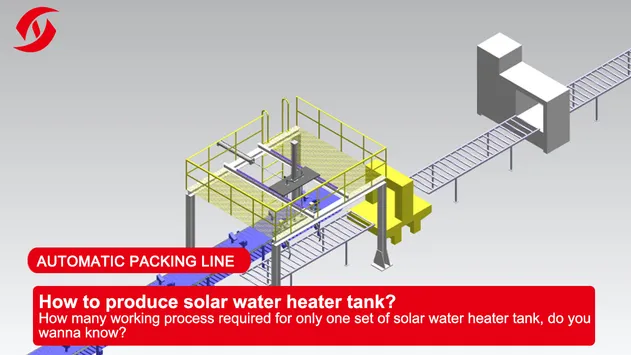

Packing Line
AUTOMATIC PACKING LINE
Packaging the finished tanks for safe distribution.
🌍 Projects We Supported Overseas

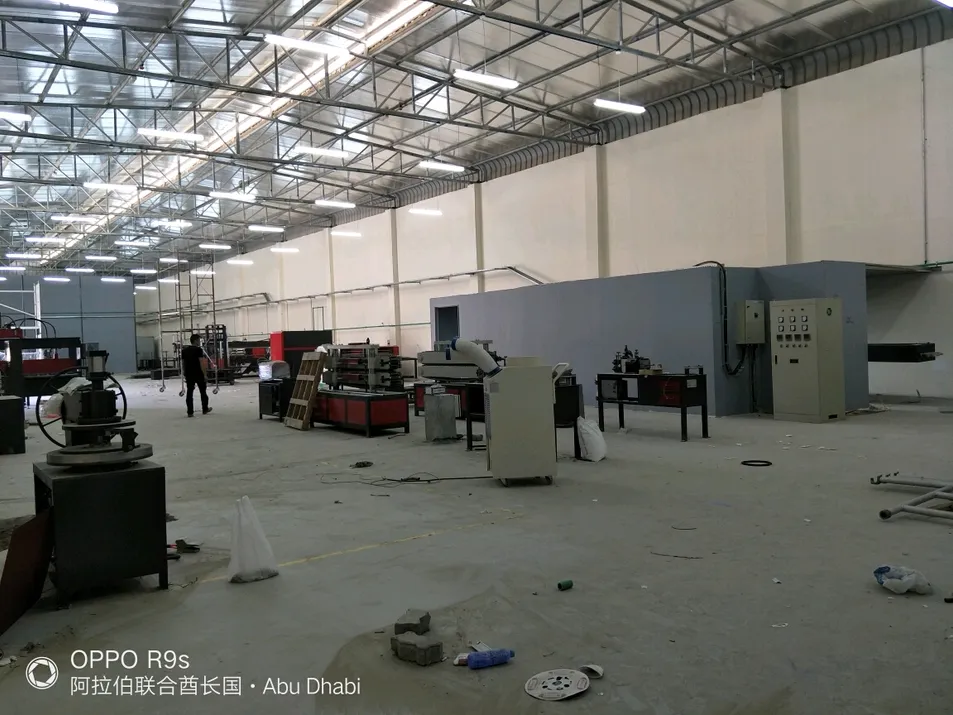

UAE Project
UAE PRODUCTION LINE
Complete solar water heater tank production line, corrugated pipe production, and annealing line installed in Abu Dhabi, UAE.

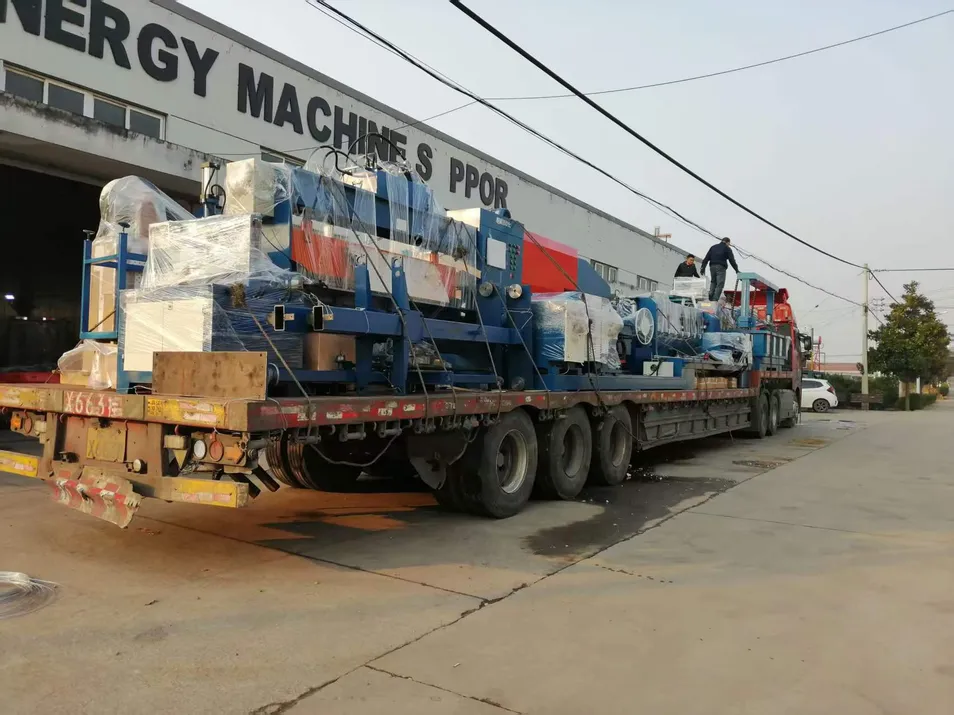

Vietnam Project
VIETNAM PRODUCTION LINE
Complete solar water heater tank production line delivered directly to Vietnam via truck.

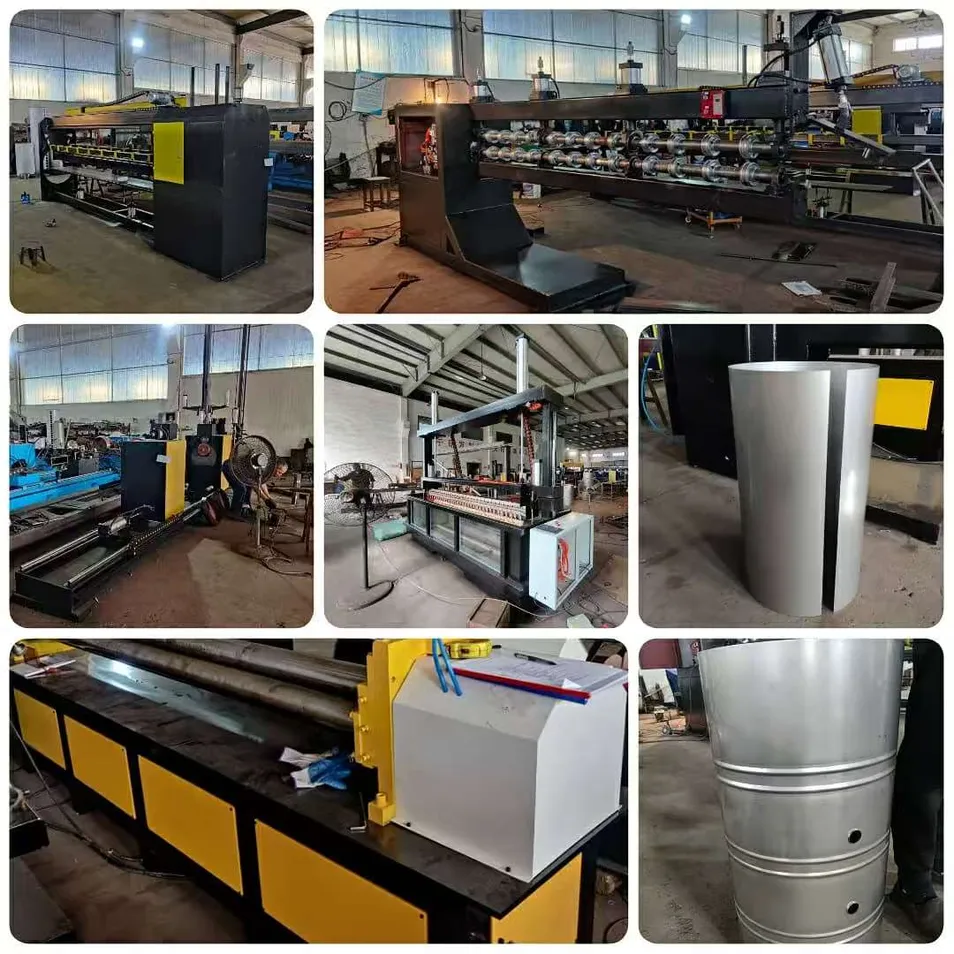

Mexico Project
MEXICO PRODUCTION LINE
Complete solar water heater tank production line optimized for the Mexico market.

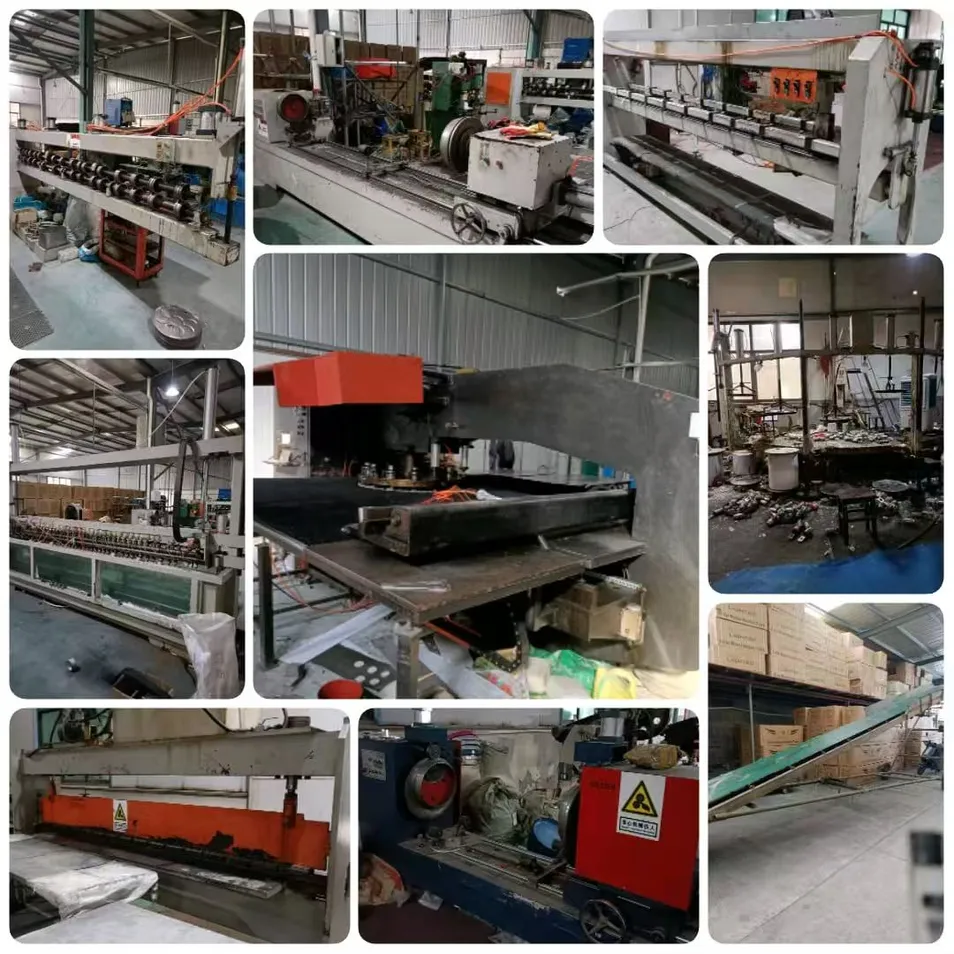

Middle East Project
MIDDLE EAST SECOND HAND PRODUCTION LINE
Complete second hand solar water heater tank production line prepared for Middle East buyers.

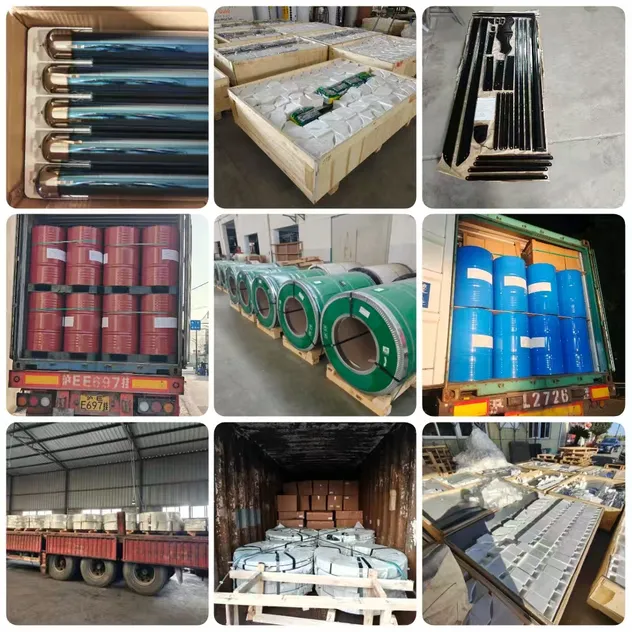

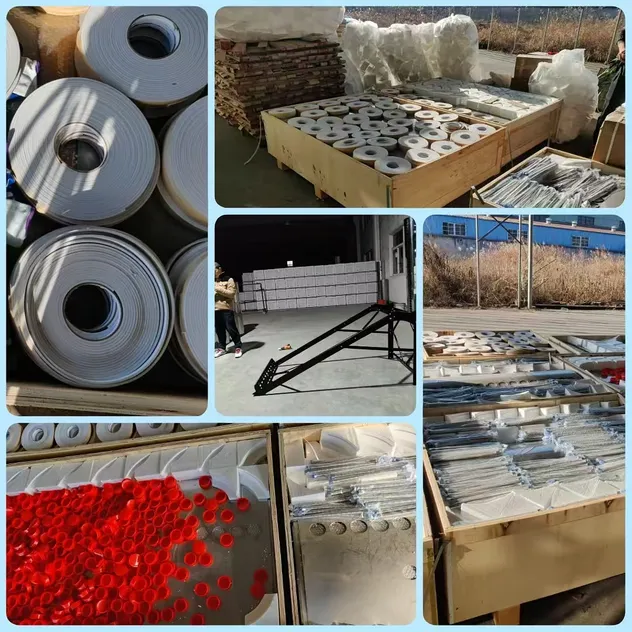

📦 Solar Water Heater Raw Materials We Supported
Raw Materials

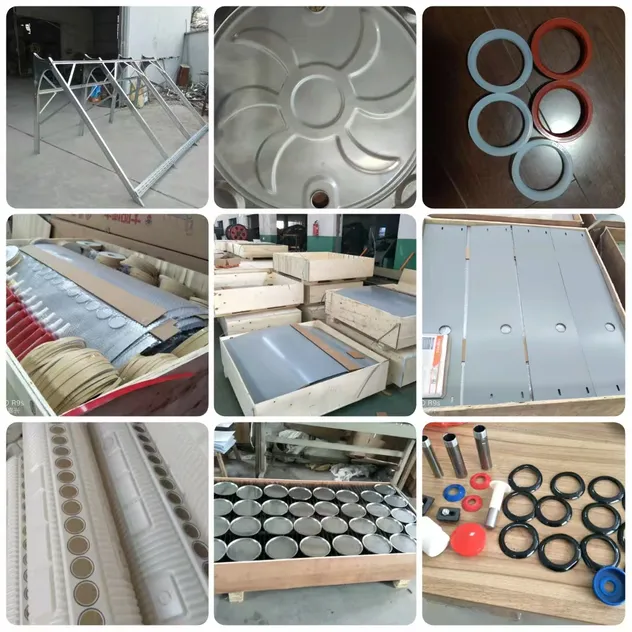

Components
Parts
RAW MATERIALS LIST REQUIRED FOR SOLAR WATER HEATER
Tank Part:
Inner Tank: Stainless Steel Sheet with SUS304-2B, 316L
Inner Tank Cap with SUS304-2B/SUS316L Stainless Steel Material.
Silicone Rings
Pipe Fittings
Outer Tank: PVDF Coating Galvanised Steel Sheet with Pearl White, Ivory White, Silver Brushed, Silver Fluorine Titanium with High Gloss, Golden Yellow, Red, Green, etc.
SUS201-BA/SUS304-2B/SUS304-BA/SUS304 Hairline/SUS316L Stainless Steel.
Outer Tank Cap
Anti-dust Rings
Bottom Decoration Cap
Heating Resistor Hole Nylon/Silicone/SUS304/SUS316L Plug & Red Plastic Cover
Heating Resistor Decoration Cover
Air Vent Cover
Insulation Layer: POLYMERIC MDI
COMBINATION POLYETHER
MOLD RELEASE AGENT
Frame: Galvanised Steel Type frame with color paint.
SUS201 Frame
SUS304 Frame
Alloy Aluminum Frame
Vacuum Tube: Cu/SS-ALN/ALN, Three target magnetron sputtering plating
Optional Accessories: Assistant Tank, Electric Backup Heater, Check Valve, Magnesium Rod, etc.
❓ FAQ (Frequently Asked Questions)
What types of solar water heater manufacturing equipment do you offer?
We specialize in a full range of production machinery, including lines for Low/High Pressure Solar Water Heater Tanks, Bracket/Frame lines, Tank Cap production, Corrugated Pipe making & annealing, and flat plate or manifold solar collectors.
What are the MOQ and delivery details for the machinery?
The Minimum Order Quantity (MOQ) is 1 set. The manufacturing and preparation delivery time is 1 month, wrapped in nude packaging suitable for secure whole container transport.
What raw materials can you supply for production?
We provide overseas factories with all necessary raw materials, including stainless steel sheets (SUS304-2B, 316L), PVDF coated galvanized steel sheets, insulation chemicals (Polymeric MDI, Combination Polyether), frames, three-target vacuum tubes, and components like assistant tanks or electric backup heaters.
How is the leak-resistance of the inner tank tested during production?
Our equipment lineup includes an Automatic Air Leak Tester that performs pressure testing on each tank to detect leakages before proceeding to final assembly and packaging.
Do you offer second-hand manufacturing production lines?
Yes, we support factories globally with custom solutions, including second-hand production lines configured to meet specific regional requirements and budget needs.
